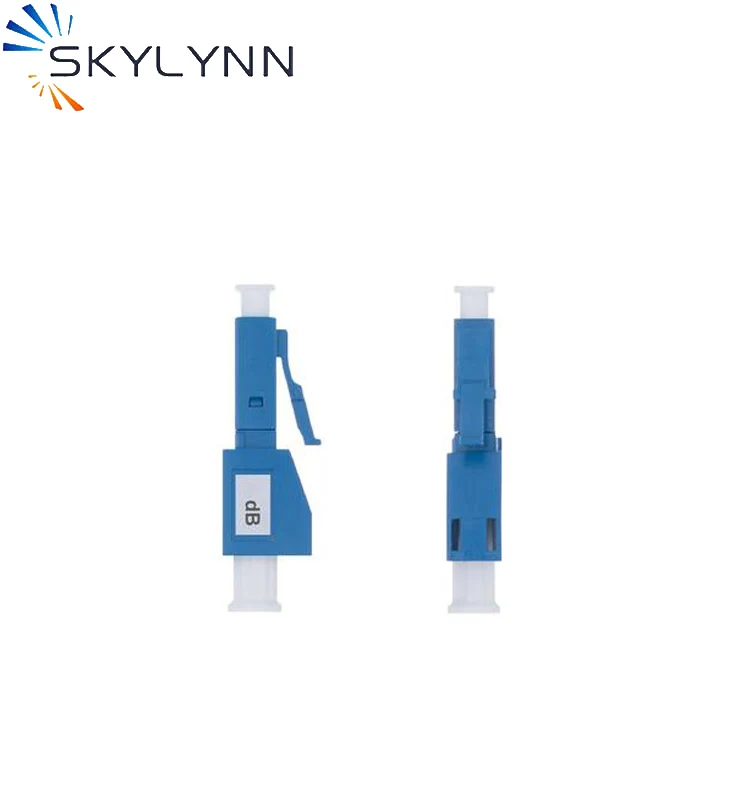

1 5 DB SC Apc Fiber Optic Attenuators Multimode Optical Fiber Attenuator

Delivery

FOB

Quantity:

Contact Now

Place of Origin:CN
Brand Name:SKYLYNN
Model Number:SC
Product name:SC LC FC ST Fiber Optic attenuator
Attenuation range:0-30 dB
Mating Durability:>1000 cycle
Certification:CE RoHS ISO
Type:Female TO Male
Model:FC, SC, ST, LC, MU, etc
Operating Wavelength:SM:1310/1550nm; MM: 850/1300nm
Application:Telecom
Brand:Skylynn/oem
Fiber Type:SM/MM/OM3

1 5 DB SC Apc Fiber Optic Attenuators Multimode Optical Fiber Attenuator

Product Description

Features

1.Low back reflection and Low PDL

2.High precision attenuation value
3.Precision control of attenuation range
4.Wide attenuation range
5.Precision ceramic ferrule
6.FC, SC, ST, LC … optional
7.Plastic or metal housing material

Application

•Fiber Optical distributing frame
•Fiber Optical network system
•High speed fiber optical transmission system
•CATV system
•Long distance DWDM system
•Optical add-drop multiplexers(OADM)

Specification

Item	SC upc attenuator
Attenuation Value	1~25dB
Attenuation Precision	≤5dB±0.3dB, ≥10dB±1dB, ≥10dB±10%
Return Loss	PC≥55dB; APC≥60dB
Operation Wavelength	1310nm and 1550nm(SM)
Polarization Loss	≥0.1dB
Operation Temperature	-40℃~ +75℃
Storage Temperature	-40℃~ +85℃
Temperature(Un-encapsulation)	95%RH Apply Telecordia Standard(GR-910-CORE)
