fiber optic media converter rj45 sc connector communication
- Product name:media converter
- Color:Black
- Shell Material::Iron
- Fiber Type:Single Fiber Single mode
- Interface Type::SC, FC, ST
- Distance::100km
- Interface Speed Rate::1000Mbit/s Auto-adapt
- Certification:CE RoHS
- Warranty:5 Years
- Package:1 Pcs /box
- Type:Fiber Optic Transceivers
- No. of Fiber:1.
- Use:FTTX
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:MC001

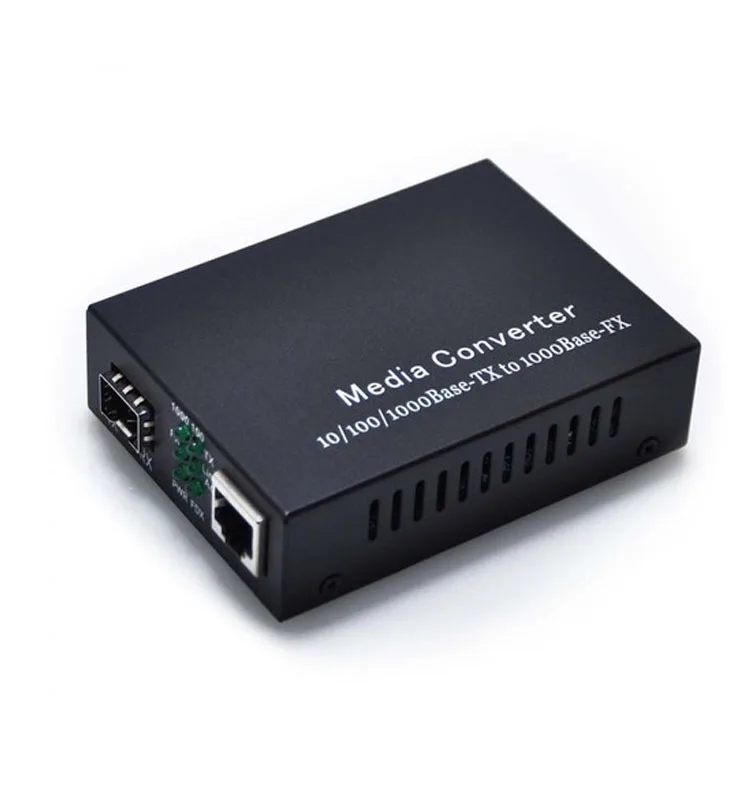

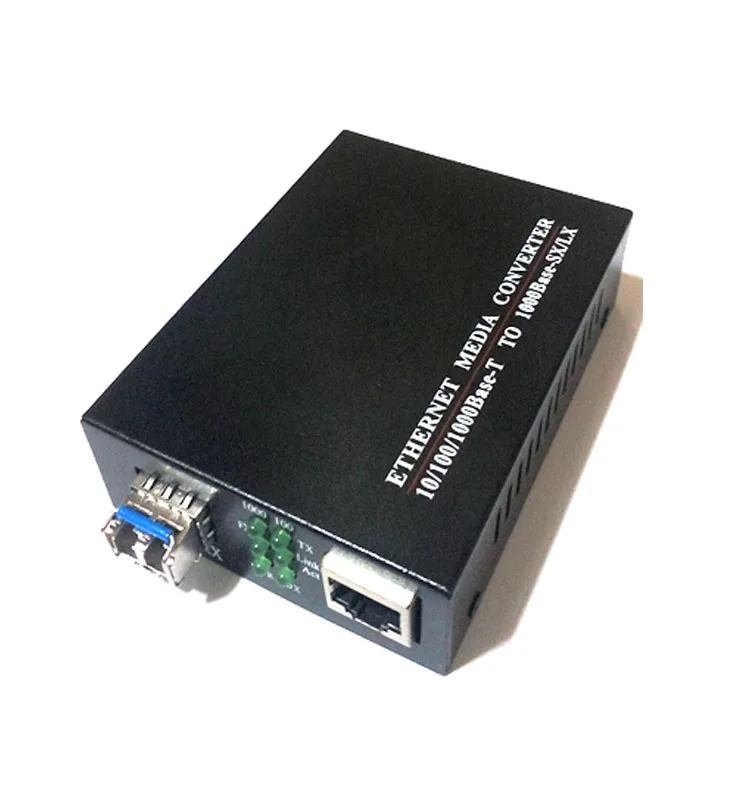

fiber optic media converter rj45 sc connector communication
Media converters are flexible and cost-effective devices for implementing and optimizing fiber links in all types of networks. The most common type of media converter is a device that functions as a transceiver converting the electrical signal used in copper Unshielded Twisted Pair (UTP) network cabling into light waves used in fiber optic cabling.
Key Feature:
-10/100/1000Mbps Ethernet
-10/100/1000 BASE-T/TX electrical port
-1000 BASE-SX/LX optical port
-Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
-Optical port supports 1000Mbps full duplex data
-Automatic MDI/MDI-X crossover
-Distances up to 2km for Multi mode;Up to 120km for Single mode
-Voltage transient protection on all power and signal input.output lines provides unconditional protection from power surges and other voltage transient events
-No in-field optical adjustments required
Parameters | Specifications |
OpticWavelength | NF-C2200SX: 850nm NF-C2200LX20: 1310nm NF-C2200-SFP: N/A NF-C2200LX20A:TX:1310nm/RX:1550nm NF-C2200LX20B:TX:1550nm/RX:1310nm |
Transmission Distance | Multimode: 2km Single mode:10km~120km |
Port | One RJ45 port,Singlefiber port (SC/ST/FC Optional) |
MDI/MDI-X | Auto selection |
Forward / Filter Rate | 10M: 14,880/14,880pps |

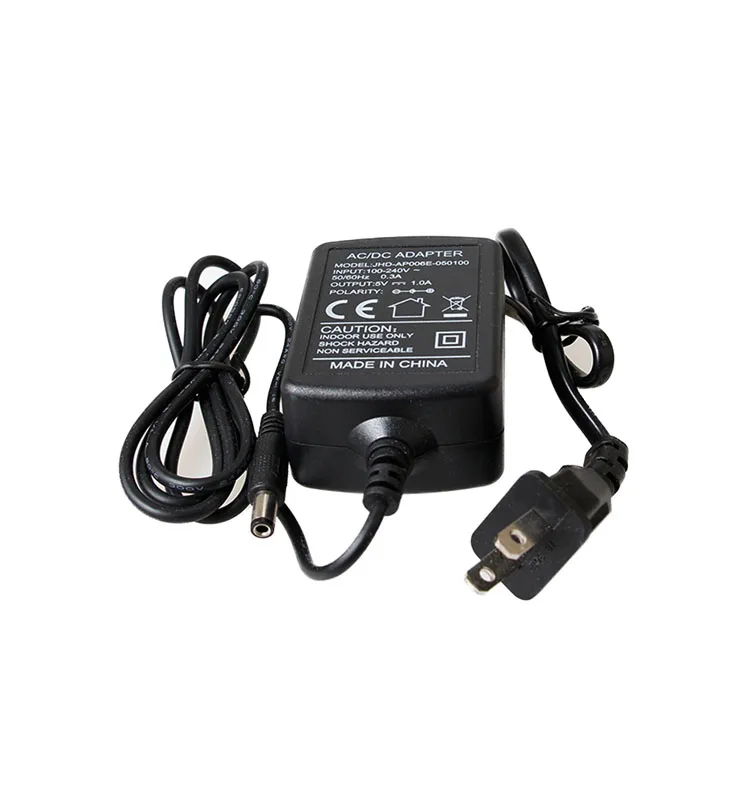

Power Supply | External : 5V DC 2A Power Consumption : ≤5W |
OperatingTemperature | 0 °C to +70 °C |
Storage Temperature | -20 °C to +80 °C |
RelativeHumidity | 5% to 90% (non-condensing) |
Emissions | FCC , Class A, RoHS, CE Mark |
Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
