SC/APC fast connector

FTTH Fiber Optic High Precision SC/APC Special Fast Connector

SC/APC
Delivery
FOB
Quantity:
Contact Now
  • Type:Fiber Adapter & Connectors
  • No. of Fiber:1.
  • Use:FTTH
  • Place of Origin:CN;GUA
  • Brand Name:Skylynn
  • Model Number:SC/APC
  • Application:FTTH drop cable,CATV ,CCTV ect
  • Color:Green
  • Insertion Loss:<0.2dB
  • Return Loss:>60dB
  • Ferrule:CCTC Ceramic Ferrules
  • Fiber Type:Single Fiber Single Mode
  • Length:50mm/55mm/60mm
  • Fiber Cable Type:0.9mm; 2.0mm; 3.0mm; drop cable
  • Operating Temp:-40-70℃
  • Connector Type:Special SC/APC



Product Description

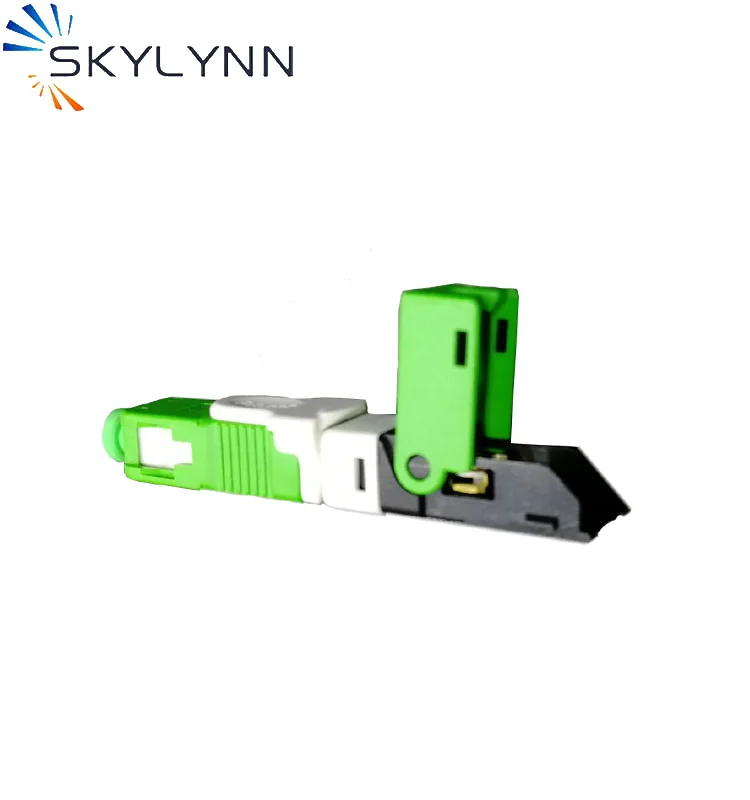

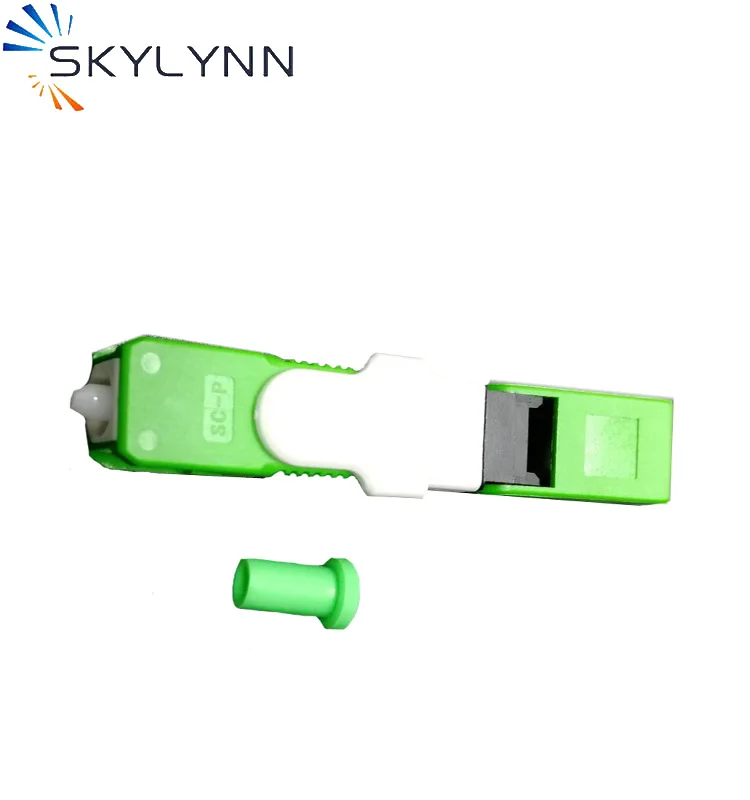

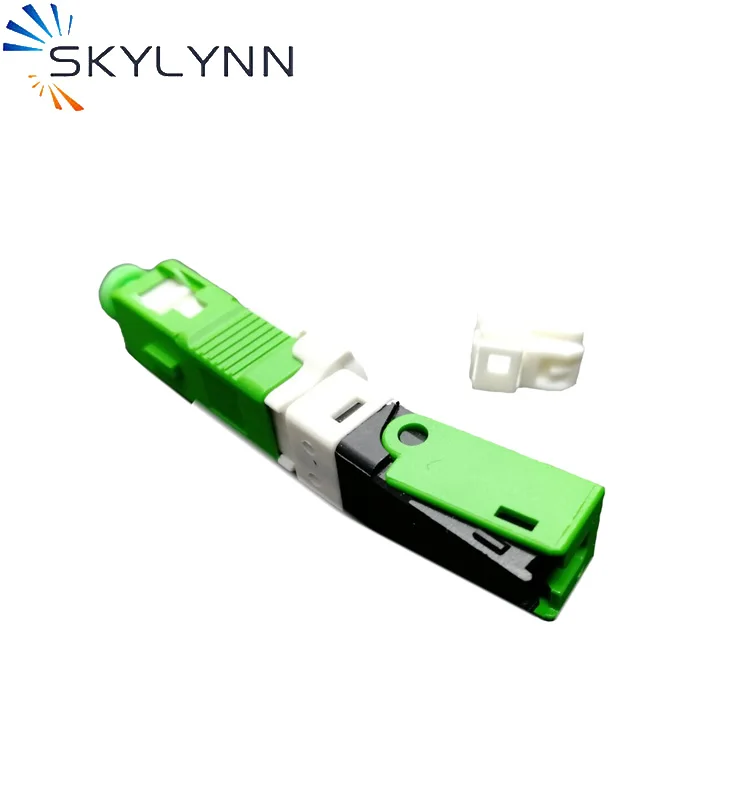

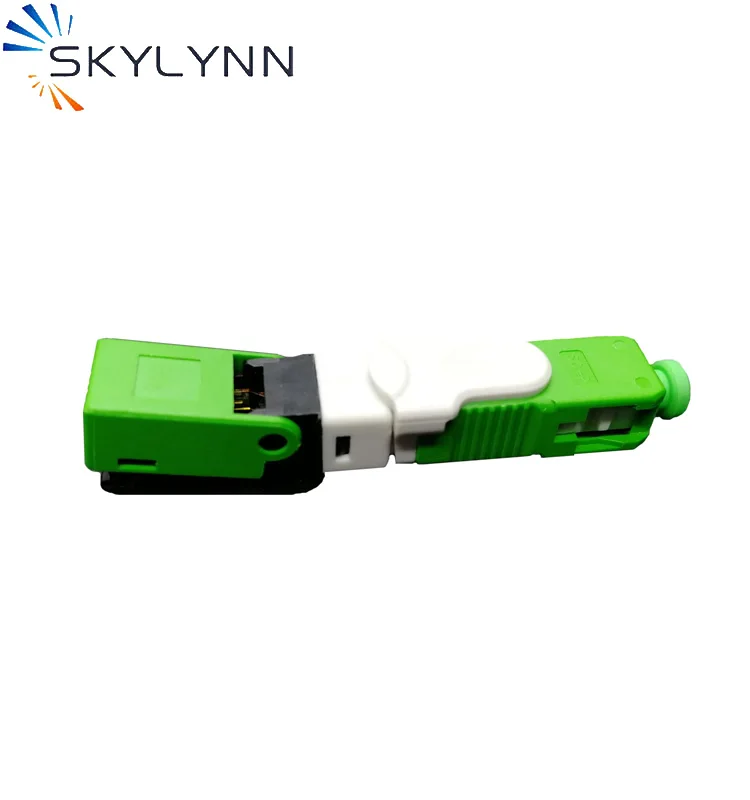

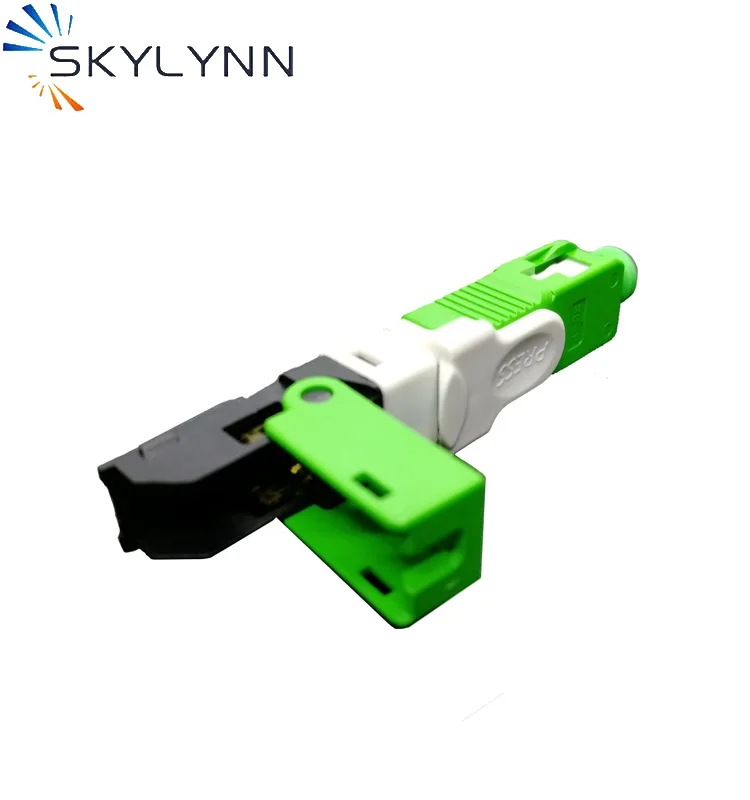

Skylynn's field assembly fast Connectors are factory pre-polished, field installable connectors that completely eliminate the need for hand polishing in the field.
The fast connector has easy assembly and excellent stability features without further processing, such as polishing, adhesives to facilitate the termination of the fiber in the field and working hard to secure space environment alone can access for assembling like pole, manholes.
In addition, it can be reduced the defect rate dramatically by worker’s connection error, due to being able to reconnected.

Feature:
No special assembling tool.
Easy for assembling with mechanical splice and no polishing.
Easy for learning technology by a simple assembling method (within 1 and half minutes).
Minimize the defect rate by features of removal and reusable.

Application:
Premise environments.
Connections at the desk for LAN environments.
Patch panels.
Direct equipment termination.
Fiber to the Subscriber (FTTx) applications.
Repair/replacement requirements.
Equipment test leads.
Insertion LossSinglemode-UPCAverage: 0.3dB, Maxium: 0.5dB
Singlemode-APCAverage: 0.3dB, Maxium: 0.6dB
Multimode-PCAverage: 0.3dB, Maxium: 0.5dB
Return  LossSinglemode-UPCAverage: 40dB, Maxium: 40dB
Singlemode-APCAverage: 45dB, Maxium: 40dB
Multimode-PCAverage: 25dB, Maxium: 20dB
Operating Temperature _40℃ to +75℃
Housing ColorSinglemode-UPCBlue
Singlemode-APCGreen
Multimode-OM1/OM2Beige
Multimode-OM3/OM4Auqa
