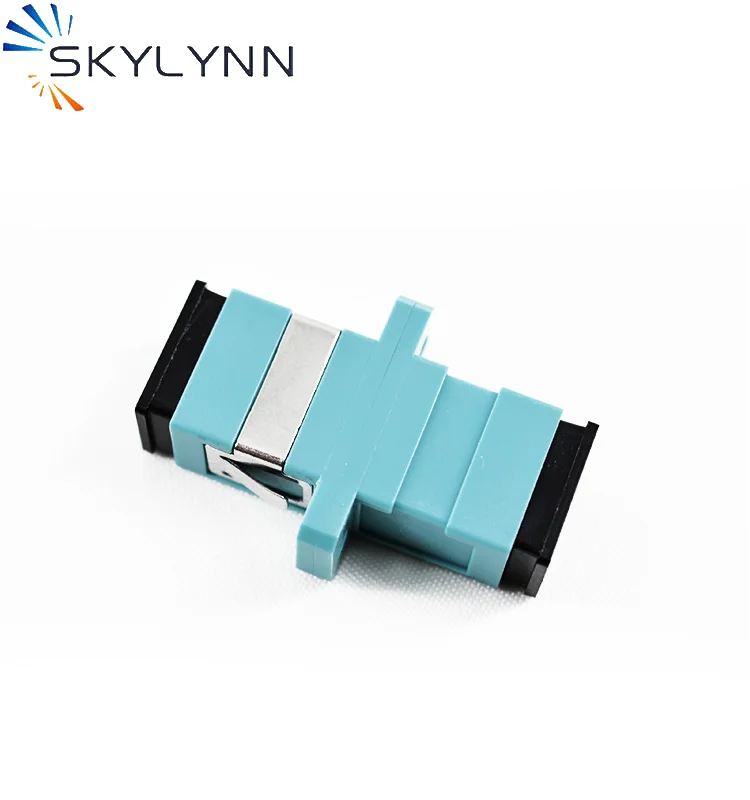

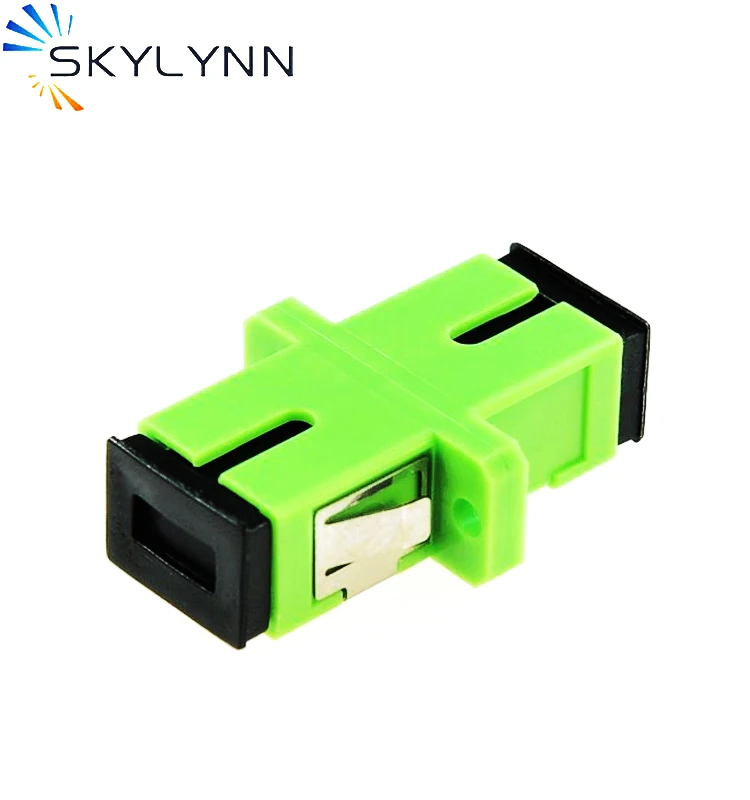

Single Mode Flange Coupler Adaptor Simplex Fiber Optics Adapters SC/APC 4Cores Scsc Fiber Optic Adaptor Upc
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:SC adapter
- Model:SC MM adapter
- Return loss:PC≥45 UPC≥50 APC≥60dB
- Insertion loss:≤ 0.2dB
- Color:Customized
- Durability:< 0.2db typical change, 1000 times
- Vibration:< 0.2db ,10~55Hz(2hr)
- Fiber Type:SM/MM/OM3
- Operating Temp:-40 to +85 degree
- Material:Plastic&Metal
- Sleeve Material:Zirconia
Single Mode Flange Coupler Adaptor Simplex Fiber Optics Adapters SC/APC 4Cores Scsc Fiber Optic Adaptor Upc
The Fiber Adapters is one of the most commonly used and very necessary product use in the fiber optics network, it is used for connection between various fiber connectors, fiber patchcords,
fiber pigtails and fiber optic equipments, it offers the point to point connection the fiber optic network)
Fiber optic adapters join separated connectors) They are assembled in panels and allow connecting pigtails with patchcords. For every type of connector there is equivalent type of adapter.
Generally there are 2 types of alignment sleeve within an adapter/ phosphor bronze +or multimode and ceramic for singlemode) An case of MTOJ and MPO the alignment is carried out by 2 small pins fitted to one of the connectors, the adapter is purely to support and lock the connectors together in the distribution box)
CHARACTERISTICS | CONDITIONS | VALUES |
Insertion Loss | Against Reference Connector | >0.2dB |
Reture Loss(SM) | PC | >0.5dB |
UPC | >55dB | |
APC | >65dB | |
Durability | 1000times | <0.2dB |
Vibration | 10~55Hz(2hr) | <0.2dB |
Impact | 1.5mm drop, 8 times | <0.2dB |
Temperature Cycle | -40°C~80°C,During 5 cycles | |
OperatingTemperature
| -20°C+70°C | |
Shenzhen Skylynn Communication Limimted is an industry leader in providing GCS (Generic Cabling System) such as fiber optic products and LAN Cabling system products, engineering expertise and integrated services to the data communications and telecommunication networks industry since 2007. We design, manufacture and install such products that communications providers need to provide high-speed voice, video and data services to their customers.
Our extensive experience in both design and application crosses all markets, from Telco, Broadband and Wireless, to Electric Utility, OEM, Enterprise and Private Networks.
Nearly 10 years’ experiences in massive production of fiber optical assemblies ensure the reliable stabilities of its high quality and excellent performances of its products. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.
