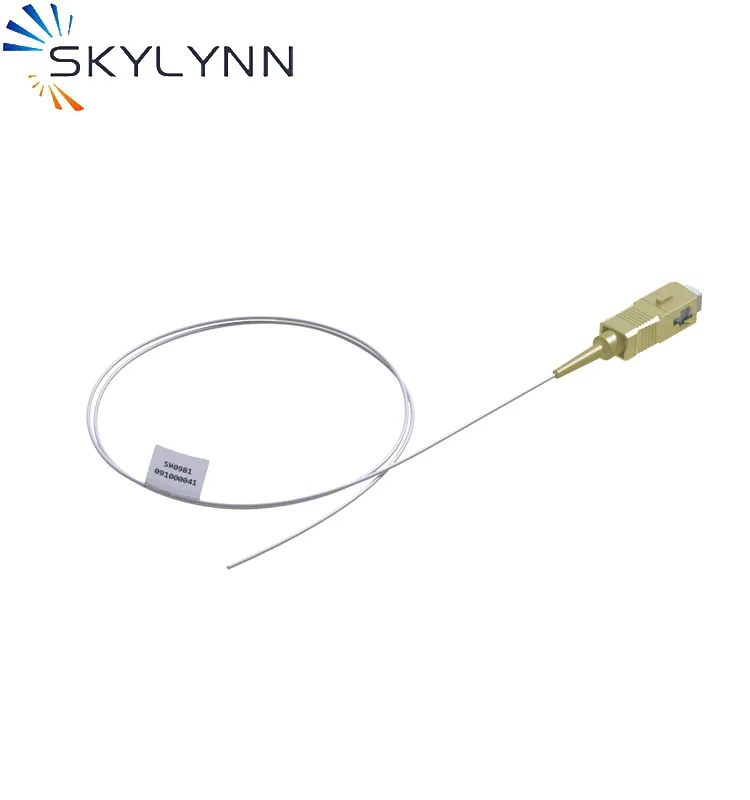

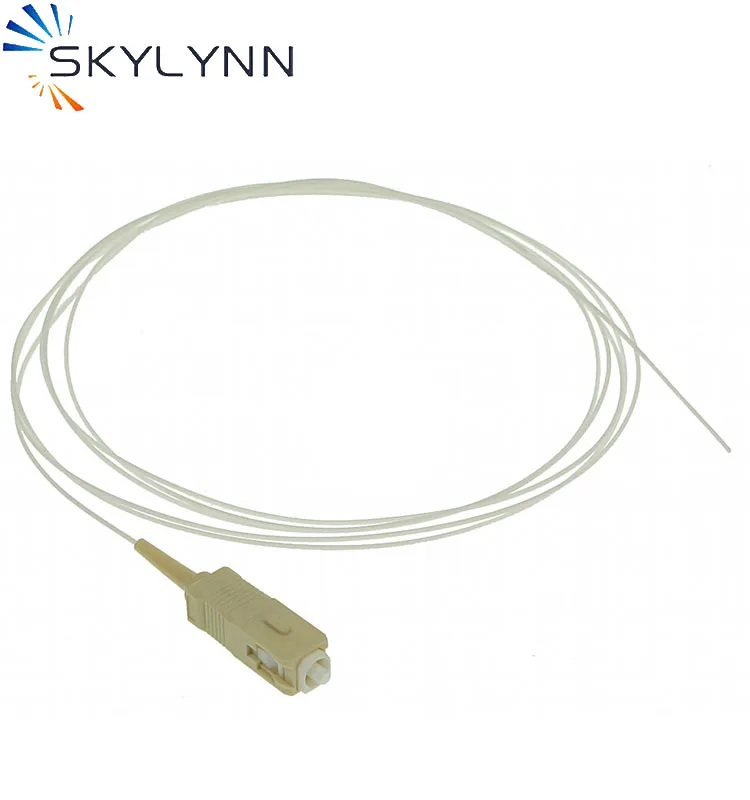

Cheaper price 0.9mm sc pigtail fiber optic pigtail for ftth work
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:sc pigtail
- Product name:pigtail
- length:Customized
- Application:FTTH FTTB FTTX Network
- Wavelength:1310/1550nm
- Type:Multimode single mode
- Dimension:0.9mm
- Fiber Type:G652D G657A
- Material:PVC LSZH
- Name:skylynn/oem
- Color:Yellow orange white
Cheaper price 0.9mm sc pigtail fiber optic pigtail for ftth work
Features
Simplex or duplex or multi fiber assemblies
Riser or Plenum rated, LSZH and RoHS cables available
Low insertion loss, IEC, TIA/EIA, Telcordia compliant
Custom fiber optic cable lengths and jacket colors
Various fiber types and wavelengths, typical 9/125 single mode, 50/125 multimode and 62.5/125 multimode
0.9 / 1.8 / 2.0 / 3.0 / mm outer diameter fiber optic cables
PC, UPC, and APC polish types
Good packing, competitive prices and very fast delivery
100% geometry test anc IEC cleaning test are available
OEM service is avaibable
Applications
1.Access Network
2.Telecom/CATV Systems
3.FTTx
Specifications
Parameters | Standard Fiber Cable Assemblies | |
Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3/OM4/OM5) |
Jacket Materials | LSZH/OFNR/PVC | |
Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 | |
Ferrule Materials | Ceramic | |
Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Losss(dB) | ≤ 0.25dB(PC/UPC/APC) | ≤ 0.3dB(PC/UPC) |
Return Loss(dB) | ≥50dB(PC/UPC) | ≥40dB(PC/UPC) |
Exchangeability | ≤ 0.2dB | |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
Operating Temperature (° C) | -10~ + 70 | |
Storage Temperature (° C) | -40 ~ +85 | |
Package | 1unit/bag | |
*All values specified are with connectors. | ||
