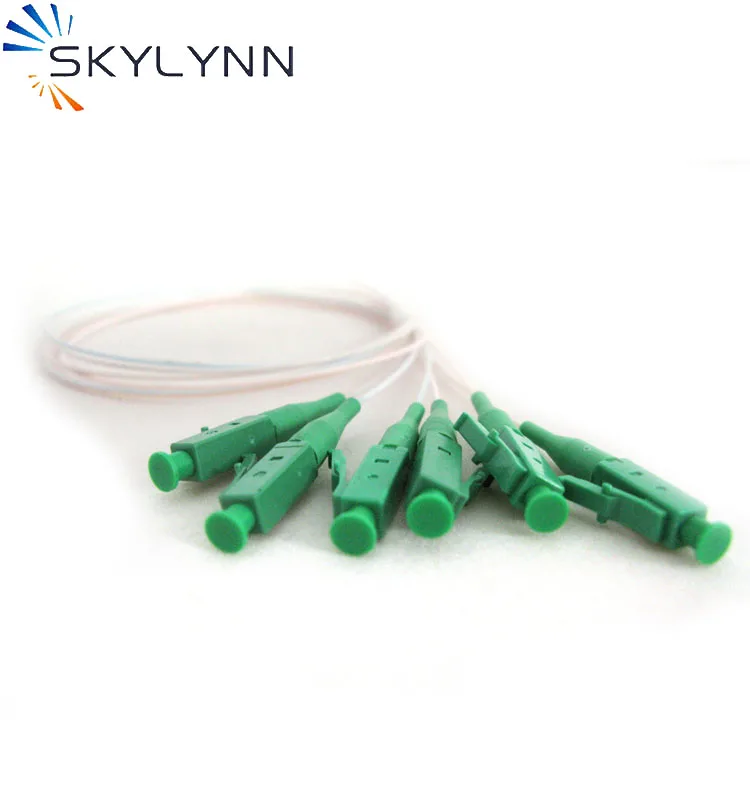

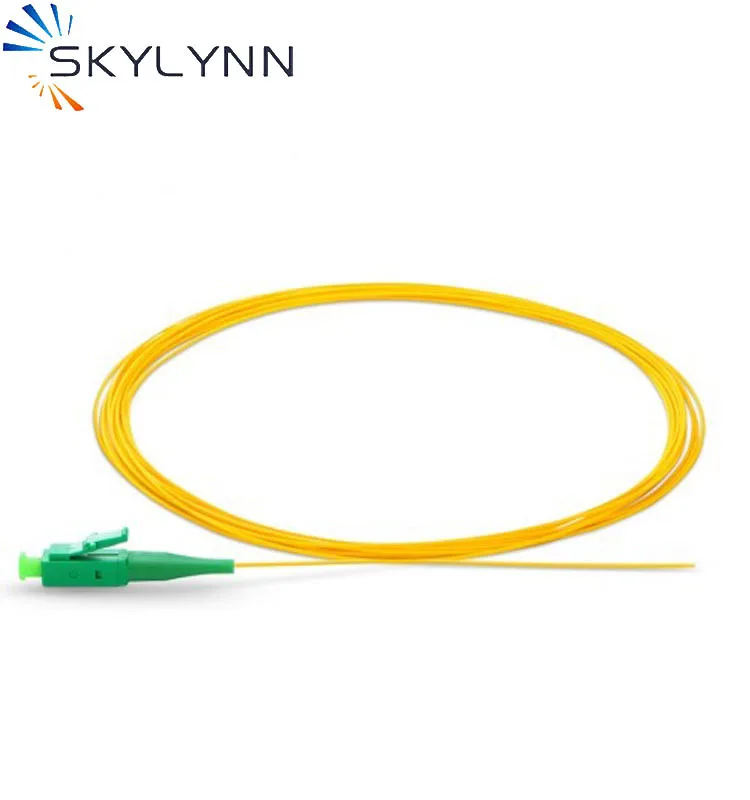

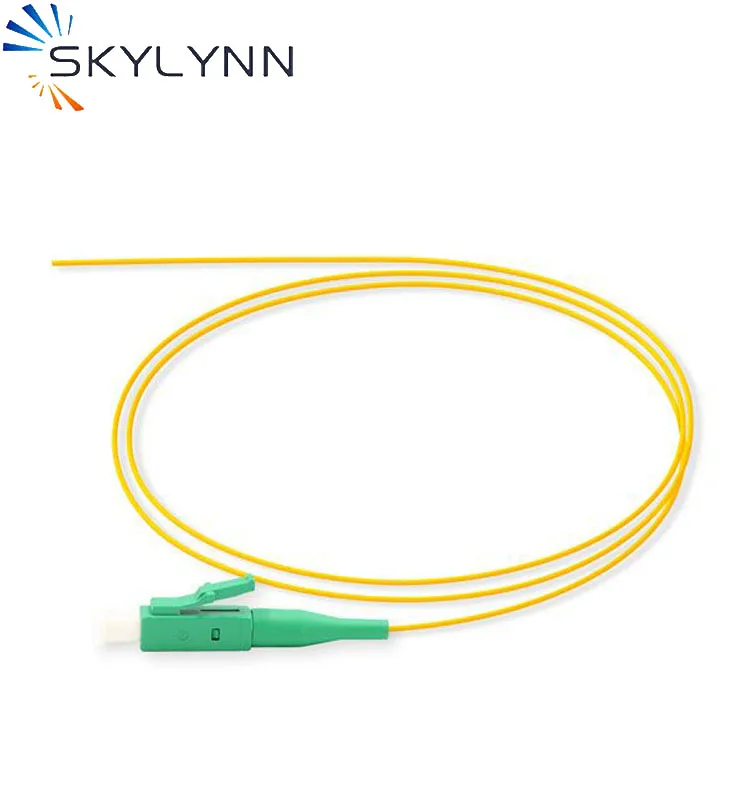

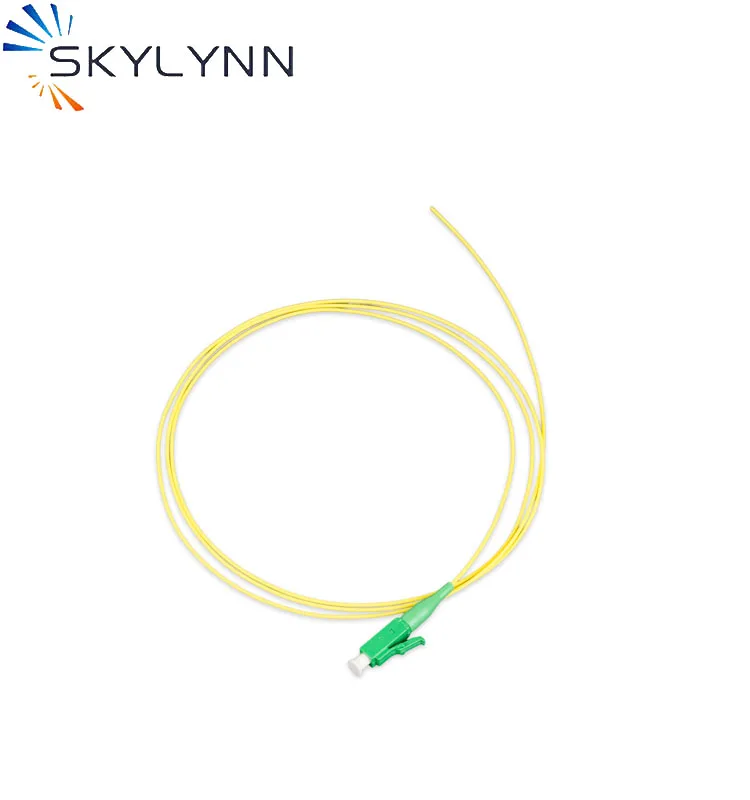

Free Sample Fiber Optic LC APC Single mode 12 color Pigtail Optical Fiber 0.9mm Cable With LSZH/PVC Jacket
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:LC APC Pigtail
- Fiber Type:G652D, G657A, G655
- Length:0.5m, 1m, 1.5m, 2m....
- Fiber Core:Simplex
- Name:LC APC Pigtail
- Outsheath:PVC,LSZH
- Material:Plastic
- Certification:RoHS
- Application:Data Center
- Insertion Loss:<0.2dB
- Return Loss:>65dB
Free Sample Fiber Optic LC APC Single mode 12 color Pigtail Optical Fiber 0.9mm Cable With LSZH/PVC Jacket
The LC connector was the first small form factor connector on the market.
The use of a high performance 1.25mm ferrule gives the connector extremely high performance acteristics.
LC connector comprises of a polymer body and a ceramic ferrule/sring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for 900um and 2mm cables.
The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule and a precision polymer housing provides consistent long-term mechanical and optical performance.
Application:
- Telecommunication networks
- CATV
- LAN and WAN
- FTTX
- Broadband network
- Data Centre
Specification:
Items | Single mode | Multimode | ||||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |||
Insertion Loss | <0.2dB | <0.3dB | ||||||
Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥45dB | ||||
Durability | <0.1dB typical change,500 matings | |||||||
Operating Temperature | -40 to +75 | -40 to +75 | ||||||
Ferrule Hole Sizes | 125.0+1/-0um, Conentricity:≤1um | 125um,Conectricity:1≤3um | ||||||
125.3+1/-0um, Conentricity:≤1um | 127um,Conectricity:1≤3um | |||||||
125.5+1/-0um, Conentricity:≤1um | 128um,Conectricity:1≤3um | |||||||
126.0+1/-0um, Conentricity:≤1um | ||||||||
Pictures:

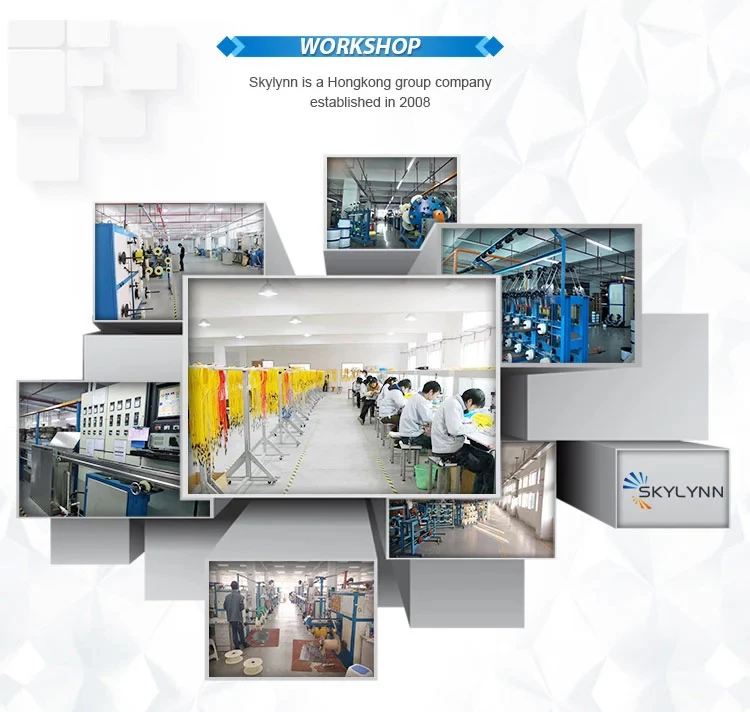

Shenzhen Skylynn Communication Co., Ltd.is an industry leader in providing GCS (Generic Cabling System) such as fiber optic products and LAN Cabling system products, engineering expertise and integrated services to the data communications and telecommunication networks industry since 2007. We design, manufacture and install such products that communications providers need to provide high-speed voice, video and data services to their customers. Our extensive experience in both design and application crosses all markets, from Telco, Broadband and Wireless, to Electric Utility, OEM, Enterprise and Private Networks. Nearly 10 years’ experiences in massive production of fiber optical assemblies ensure the reliable stabilities of its high quality and excellent performances of its products. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services. |
