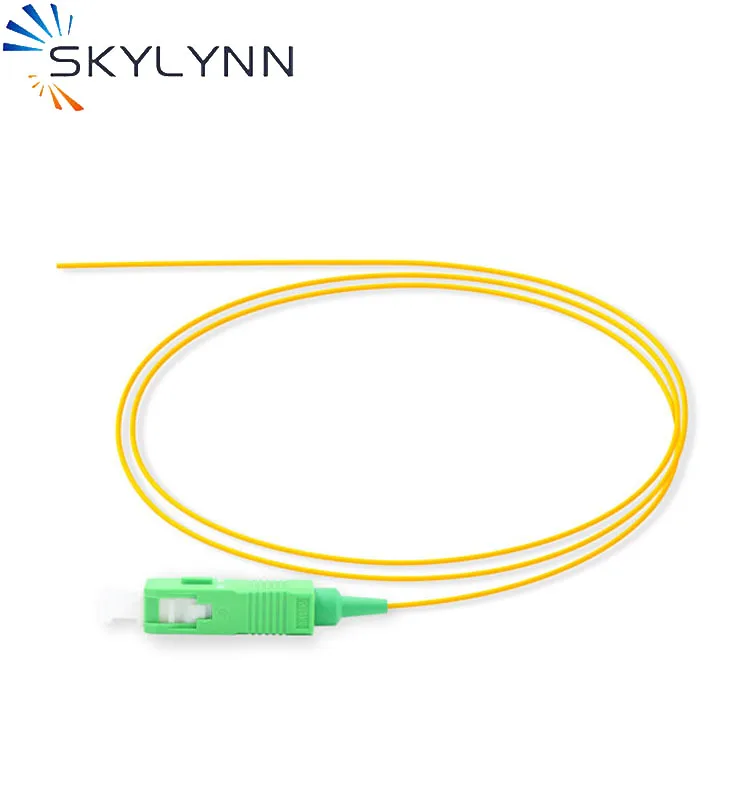

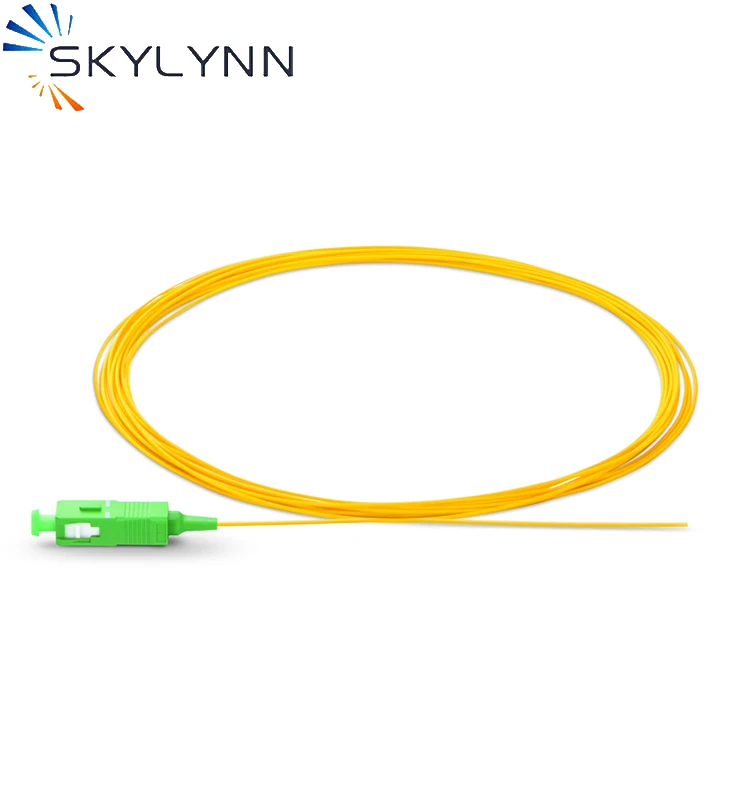

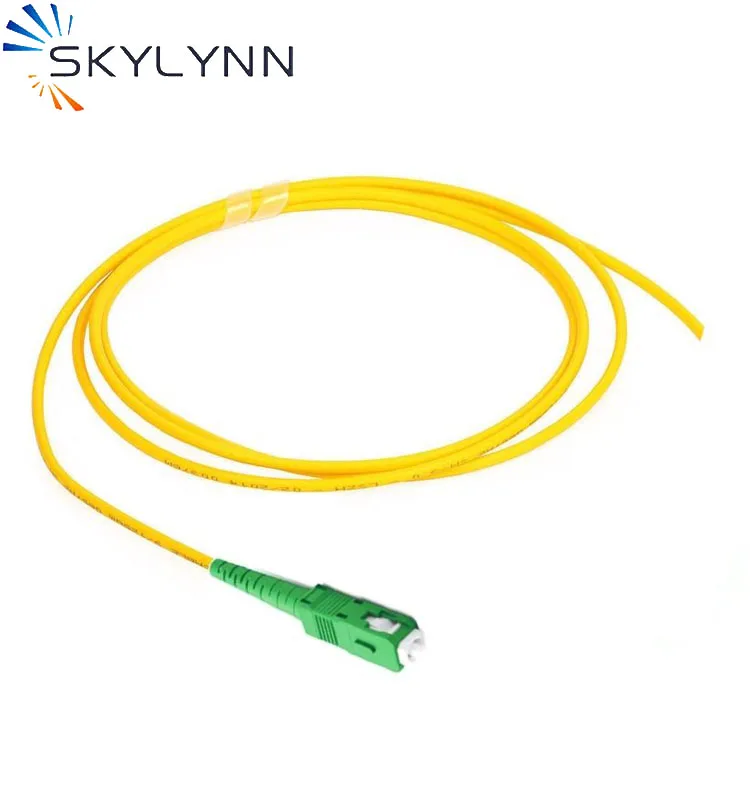

Single Mode Simplex Pigtail APC 0.9mm Fiber SC Pigtail /SC Optical Fiber Pigtail with 0.9mm 1m LZSH
- Type:Fiber Pigtails
- No. of Fiber:1.
- Use:FTTX
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:SC SM Simplex Pigtail
- Product name:Optical Fiber Pigtail
- Color:Yellow
- Fiber Type:G657A,G652D,single mode /multi mode
- Application:Telecommunication
- Material:LSZH
- Operating Temperature:- 40 ~ +75
- Storage Temperature:- 40 ~ +85
- Sample:Available
- Test:Whole Test
- Adapter:SC APC
Single Mode Simplex Pigtail APC 0.9mm Fiber SC Pigtail /SC Optical Fiber Pigtail with 0.9mm 1m LZSH
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Features:
(1) Ceramic Ferrule;
(2) High return loss;
(3) Low insertion loss;
(4) Good repeatability and and exchangeability;
(5) Excellent Polished and 100% tested;
(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
Item | SM(Single Mode) | MM(Multimode) | |||
Fiber Cable Type | G652D/G655/G657A1/G657A2/G657B | OM1 | OM2/OM3/OM4 | ||
Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
Cable OD (mm) | 0.9/2.0/3.0/Customized | ||||
Endface Type | PC | UPC | APC | UPC | UPC |
Typical Insertion Loss (dB) | <0.3 | <0.3 | <0.2 | <0.1 | <0.1 |
Return Loss (dB) | >50 | >50 | >60 | / | |
Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
Anti-tensile Force (N) | >70 | ||||
Temperature Range (℃) | -40~+80 | ||||
Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
