Factory supply OEM 10/100/1000MB fiber media converter

MC001

Delivery

FOB

minimum order

1 set

Supply Ability

5000set / Week

Country of Origin

ShenZhen

Quantity:

Contact Now

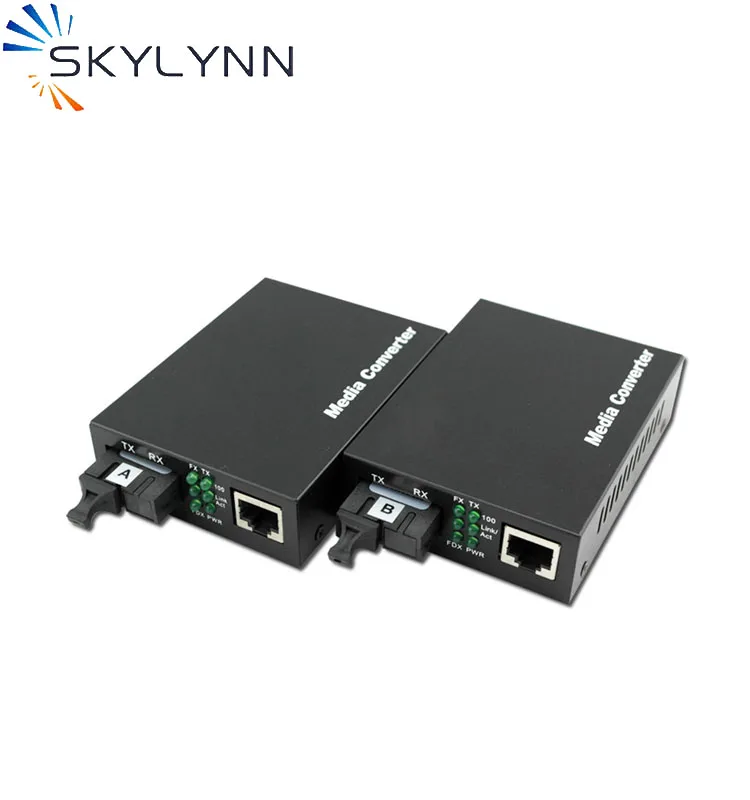

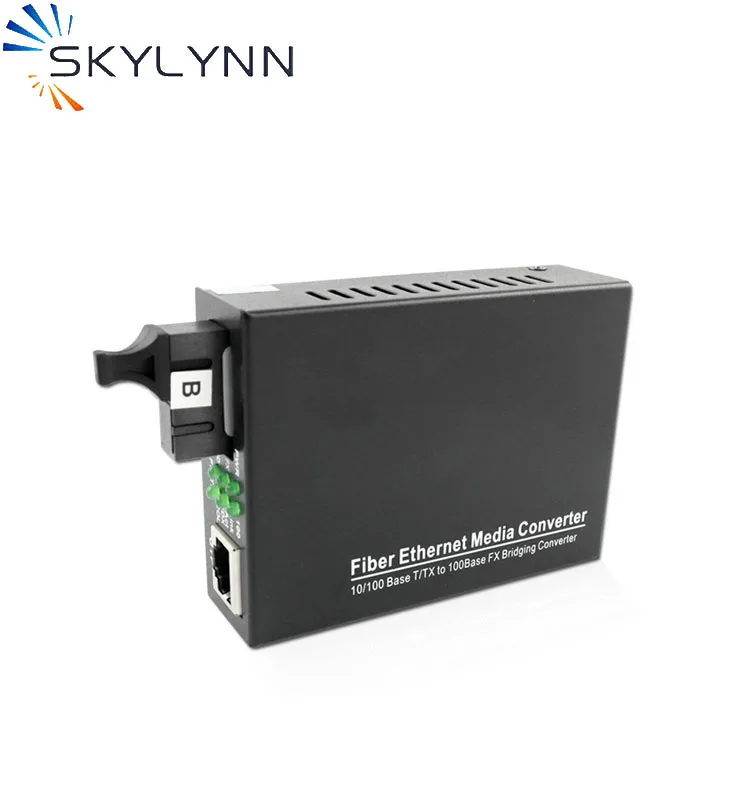

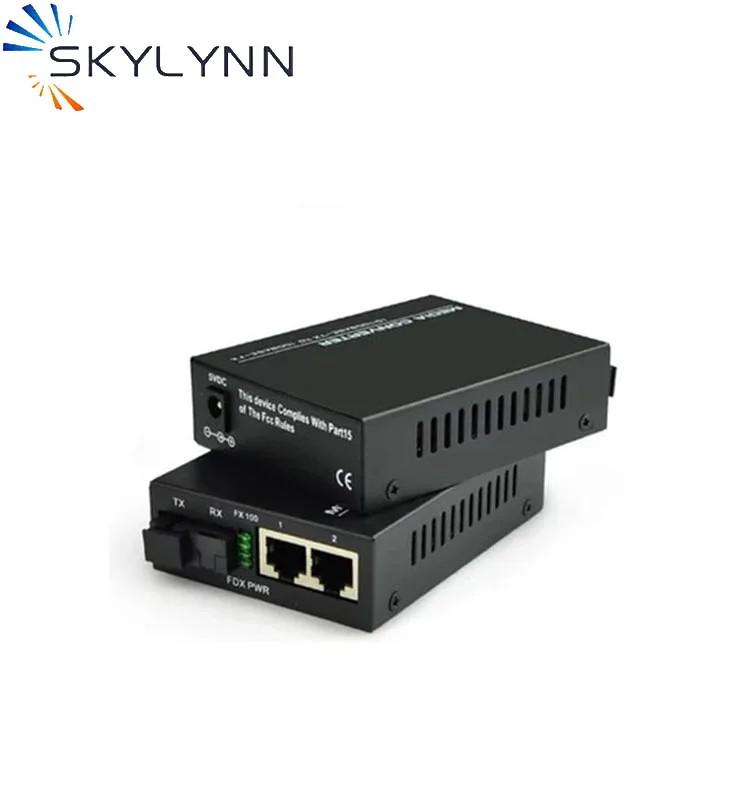

Factory supply OEM 10/100/1000MB fiber media converter

Place of Origin:CN;GUA
Brand Name:Skylynn
Model Number:fiber media converter
Product name:fiber media converter
Color:Black
Shell Material:Iron
Distance:100km
Interface Type:SC, FC, ST
Interface Speed Rate:1000Mbit/s Auto-adapt
Model Number:MC001
Application:Telecommunication
Certification::CE RoHS
Test:Whole test

Product Description

Parameters	Specifications
OpticWavelength	NF-C2200SX: 850nm NF-C2200LX20: 1310nm NF-C2200-SFP: N/A NF-C2200LX20A:TX:1310nm/RX:1550nm NF-C2200LX20B:TX:1550nm/RX:1310nm
Transmission Distance	Multimode: 2km Single mode:10km~120km
Port	One RJ45 port,Singlefiber port (SC/ST/FC Optional)
MDI/MDI-X	Auto selection
Forward / Filter Rate	10M: 14,880/14,880pps 100M: 148,800/148,800pps 1000M: 1,488,000/1,488,000pps
Power Supply	External : 5V DC 2A Built-in: 100 V to 240 V AC 50Hz to 60 Hz Power Consumption : ≤5W
OperatingTemperature	0 °C to +70 °C
Storage Temperature	-20 °C to +80 °C
RelativeHumidity	5% to 90% (non-condensing)
Emissions	FCC , Class A, RoHS, CE Mark

Product Features

-10/100/1000Mbps Ethernet

-10/100/1000 BASE-T/TX electrical port

-1000 BASE-SX/LX optical port

-Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.

-Optical port supports 1000Mbps full duplex data

-Automatic MDI/MDI-X crossover

-Distances up to 2km for Multi mode;Up to 120km for Single mode

-Voltage transient protection on all power and signal input.output lines provides unconditional protection from power surges and other voltage transient events

-No in-field optical adjustments required
