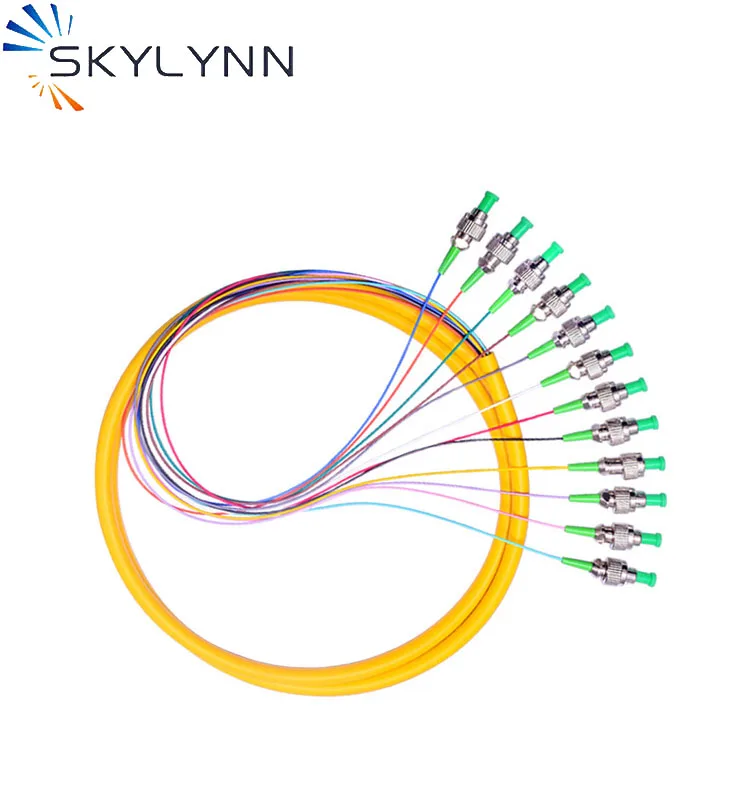

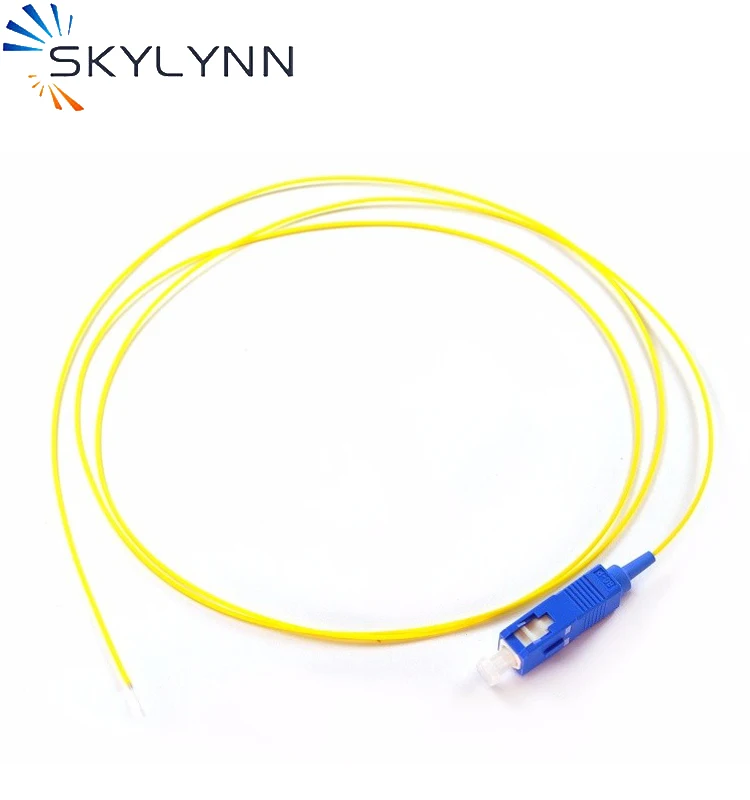

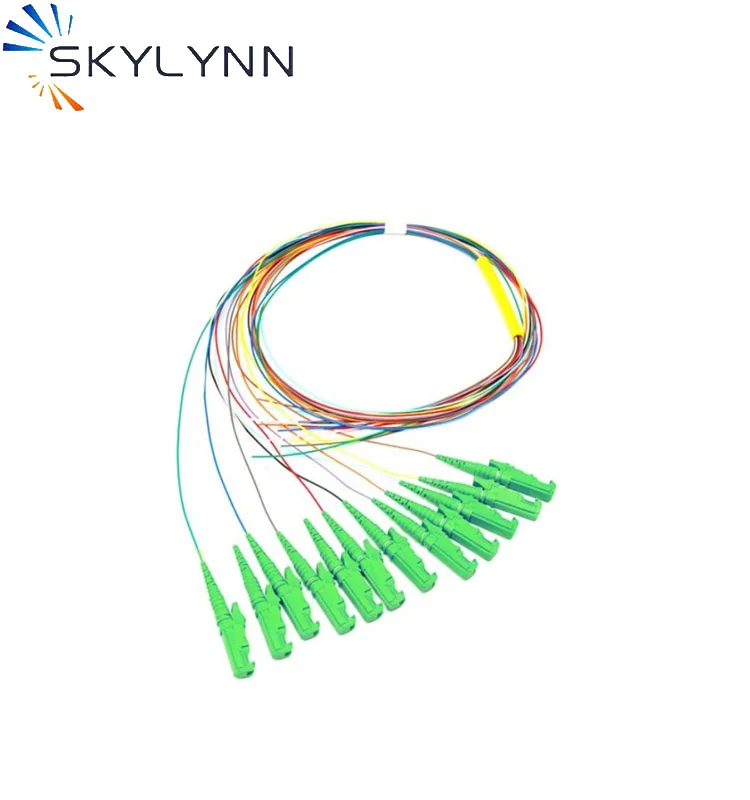

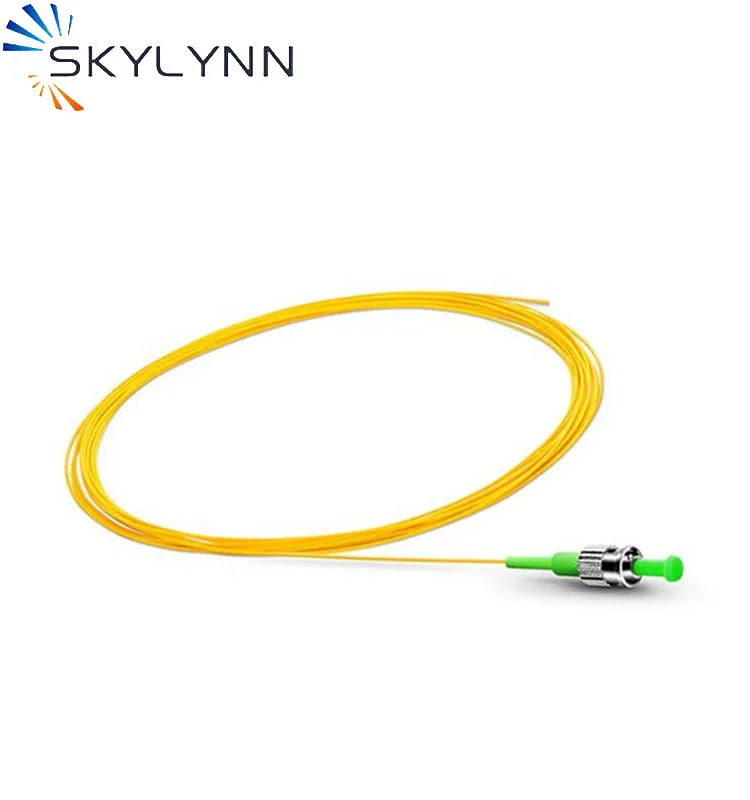

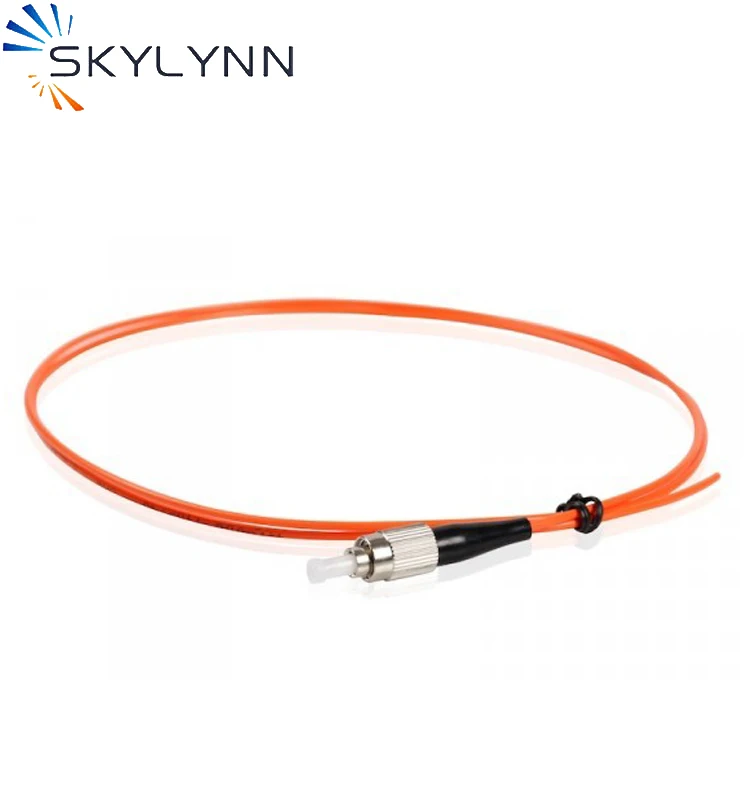

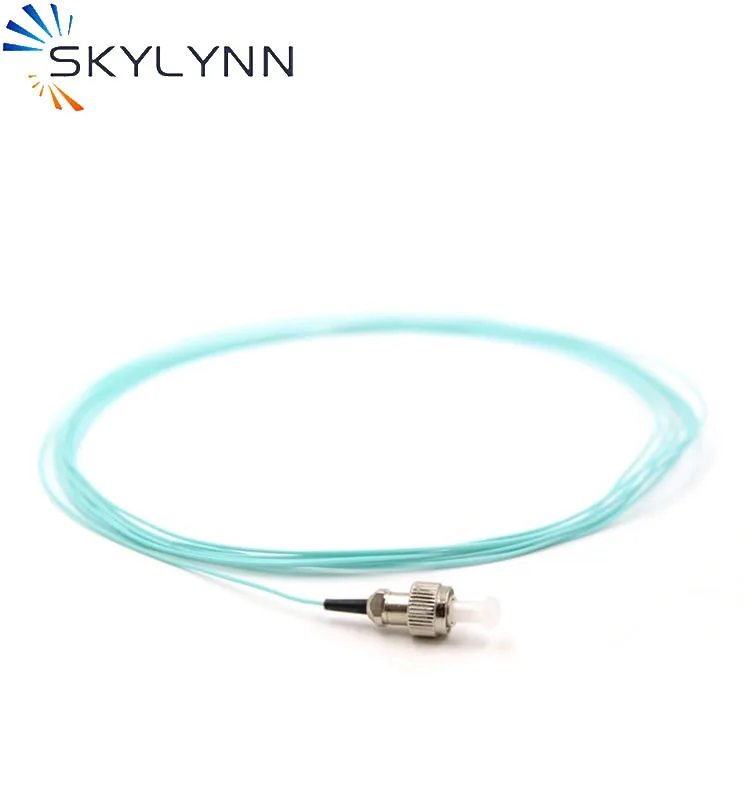

Free sample 0.9mm Single mode Multi 1m 3m SC LC FC ST fiber optic pigtail price
- Place of Origin:CN;GUA
- Number of Conductors:1
- Brand Name:skylynn
- Model Number:pigtail
- Name:SC LC FC ST pigtail
- Material:LSZH
- Fiber Type:SM, MM
- Insertion loss:0.25 (max 0.3)
- Return loss:0.45~0.65dB
- Operating Temperature:-40℃~75℃
- Mating Durability 500 time:Additional Loss≤0.1dB Return Loss Variability<5dB
- Certification:RoHS
- Color:Customized
- Application:FTTH System
Free sample 0.9mm Single mode Multi 1m 3m SC LC FC ST fiber optic pigtail price
| Parameter | PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G |
| Insertion loss | ≤0.25dB | ≤0.3dB | ||||
| Return loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB | ≥35dB | ≥35dB |
| Operating Temperature | -40℃~75℃ | |||||
| Durability | ≤0.1dB typical change,500 matings | |||||
| Available Wavelenghts | SM=1310&1550nm | MM=850nm | ||||
Shenzhen Skylynn Communication Limimted is an industry leader in providing GCS (Generic Cabling System) such as fiber optic products and LAN Cabling system products, engineering expertise and integrated services to the data communications and telecommunication networks industry since 2007. We design, manufacture and install such products that communications providers need to provide high-speed voice, video and data services to their customers.
Our extensive experience in both design and application crosses all markets, from Telco, Broadband and Wireless, to Electric Utility, OEM, Enterprise and Private Networks.
Nearly 10 years’ experiences in massive production of fiber optical assemblies ensure the reliable stabilities of its high quality and excellent performances of its products. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.
