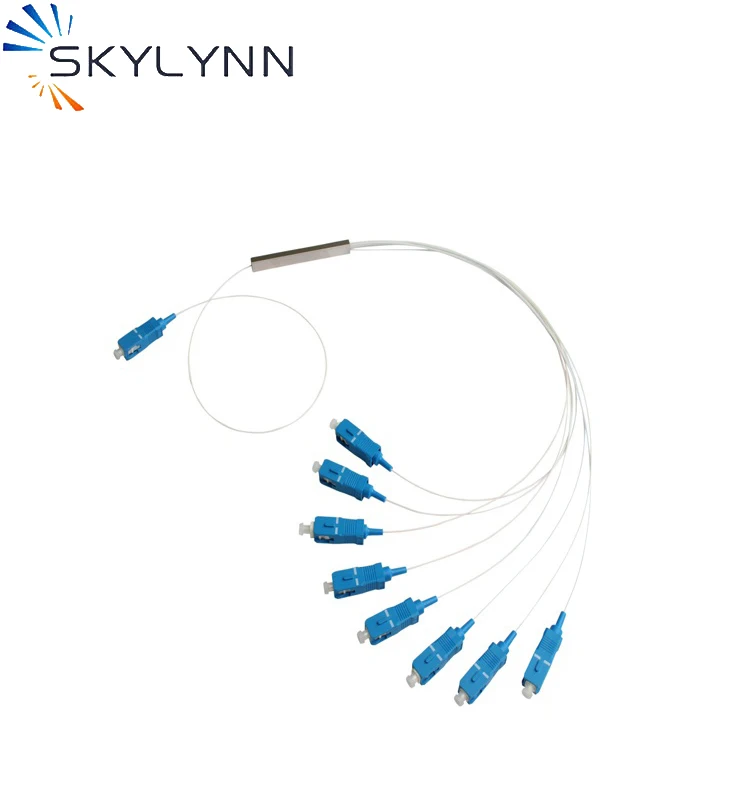

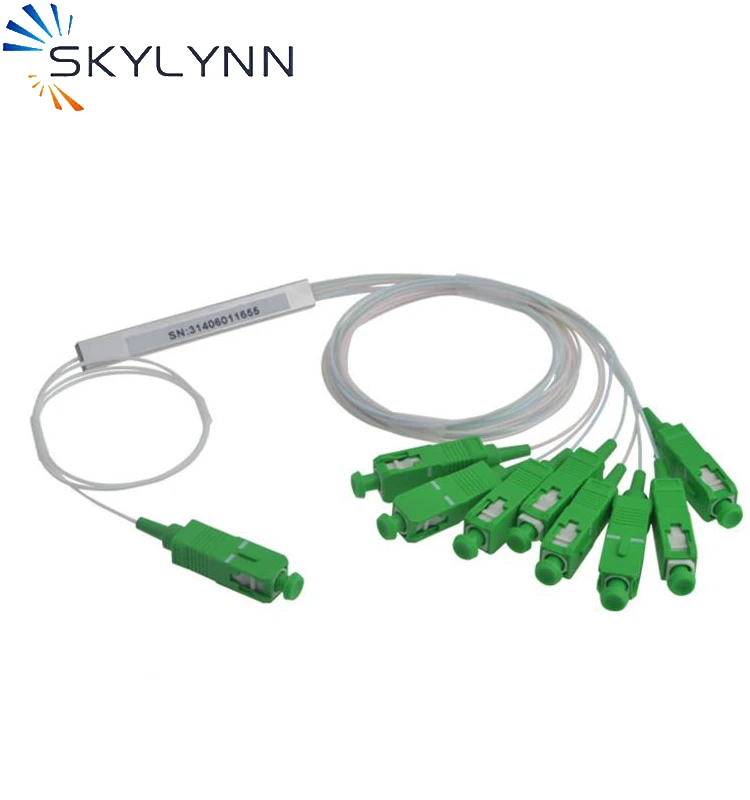

FTTH Solution SC/APC Steel Tube 1x8 Fiber Optic PLC Splitter
- Place of Origin:CN;GUA
- Type:FTTx Solutions
- No. of Fiber:8.
- Use:FTTH
- Application:(Data Center)
- Brand Name:Skylynn
- Model Number:Steel Tube Splitter
- Product name:Fiber Optic PLC Splitter
- connector:SC/APC
- Return loss:> 55dB UPC, >65dB APC
- Work temperature:-40 ℃ + 80℃
- Application:FTTH system
- Material:Stainless Steel
- Color:RED/GREEN/BLUE
- Fiber Type:G657A1
- cable:0.9mm
- Certification:RoHS
FTTH Solution SC/APC Steel Tube 1 8 Fiber Optic PLC Splitter
PLC is developed using silica glass wave guide circuits and aligned fiber pigtails, integrated inside a miniature package. PLC splitters provide low-cost solution for optical signal distribution, with small form factor and superb reliability. These PLC devices have high quality performance, such as low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260 nm to 1650 nm, and work in temperature from -40ºC to +85ºC. The PLC have 1x4, 1x8, 1x16 and 1x32 standard configurations.

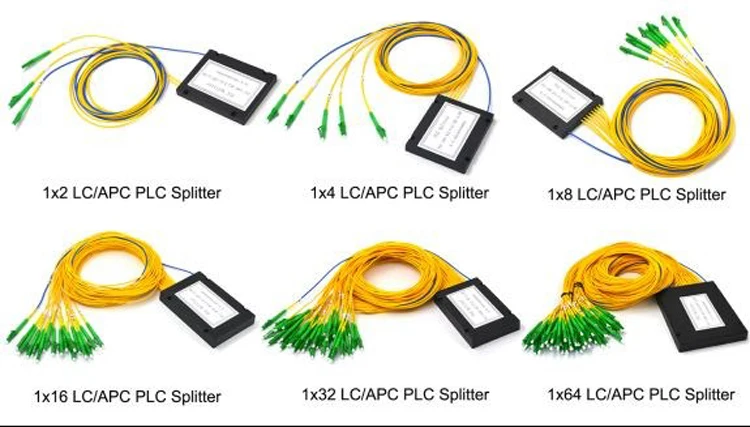

Ports | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
Operating Wavelength (nm) | 1260~1650 | ||||||
Insertion Loss (dB) | Max(P/S) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | 20.5/21.0 |
Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
PDL (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 |
Return Loss (dB) | Min | UPC:50 APC:55 | |||||
Standard Input Fiber | Bend Insensitive SM Single Fiber(ITU G.657A) | ||||||
Standard Output Fiber | Bend Insensitive SM Ribbon Fiber(ITU G.657A) | ||||||
Standard Output Color | Blue,Orange,Green,Brown,Grey,White,Red,Black(TIA/EIA 598-B) | ||||||
Max.Optical Power(mw) | 300 | ||||||
Operating Temperature(°C) | -40~+85 | ||||||
Storage Temperature(°C) | -40~+85 | ||||||
