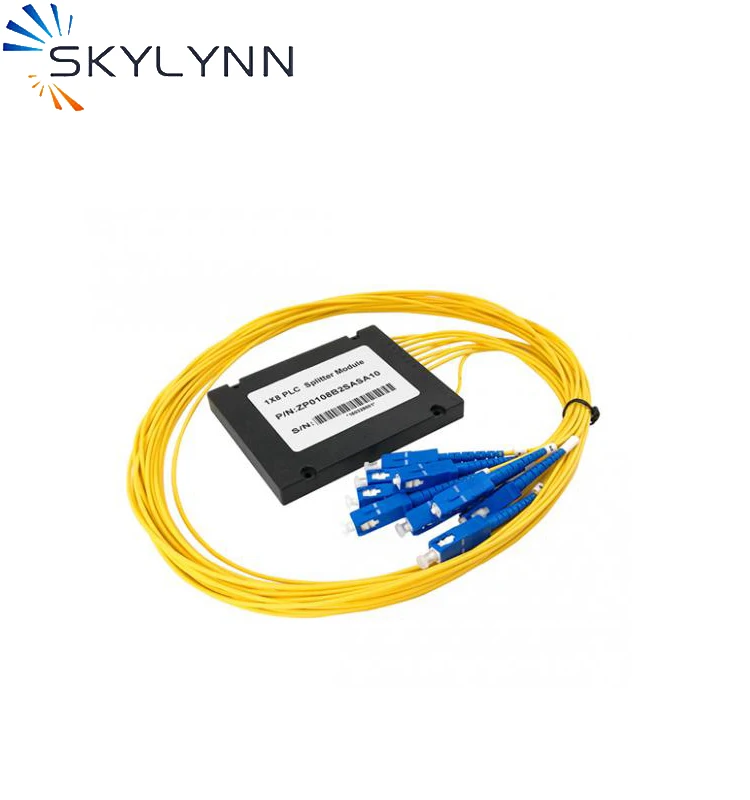

SC/APC Y cable 1 8 way splitter optical PLC 1/16 fiber optic splitter
- Place of Origin:CN
- Brand Name:Skylynn
- Model Number:SC/APC PLC Splitter
- Product name:1*8 SC/APC PLC Splitter
- Fiber Type:SM/MM/OM3
- Certification:CE RoHS ISO9001
- Connector:SC/APC
- Application:FTTH FTTB FTTX Network
- Warranty:15years
- Wavelength:850nm/1310nm/1550nm
- Diameter:2.0MM/3.0MM
- Color:Black
- Cable Material:LSZH/PVC
SC/APC Y cable 1 8 way splitter optical PLC 1/16 fiber optic splitter
PLC splitters provide low-cost solution for optical signal distribution, with small form factor and superb reliability. These PLC devices have high quality performance, such as low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260 nm to 1650 nm, and work in temperature from -40ºC to +85ºC. The PLC have 1x4, 1x8, 1x16 and 1x32 standard configurations.
Ports | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
Operating Wavelength (nm) | 1260~1650 | ||||||
Insertion Loss (dB) | Max(P/S) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | 20.5/21.0 |
Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
PDL (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 |
Return Loss (dB) | Min | UPC:50 APC:55 | |||||
Directivity (dB) | Min | 55 | |||||
Standard Input Fiber | Bend Insensitive SM Single Fiber(ITU G.657A) | ||||||
Standard Output Fiber | Bend Insensitive SM Ribbon Fiber(ITU G.657A) | ||||||
Humidity Range(rh) | 5%~85% | ||||||
Operating Temperature(°C) | -40~+85 | ||||||
Storage Temperature(°C) | -40~+85 | ||||||
