High quality lc duplex adapter SM MM simplex duplex fiber optic LC adapter

LC adapter

Delivery

FOB

minimum order

1000 pieces

Supply Ability

8000pieces / Day

Country of Origin

Shenzhen

Quantity:

Contact Now

Place of Origin:CN;GUA
Brand Name:Skylynn
Model Number:LC adapter
Color:blue aqua purple
Operating Temperature:-40 to +75degree
Type:LC
Application:FTTH FTTB FTTX Network
package:Plastic box or bag
Material:pvc
Certification:RoHS
Product name:adapter
Brand Name:Skylynn/OEM
Wavelength:850nm/1310nm/1550nm

Product Description

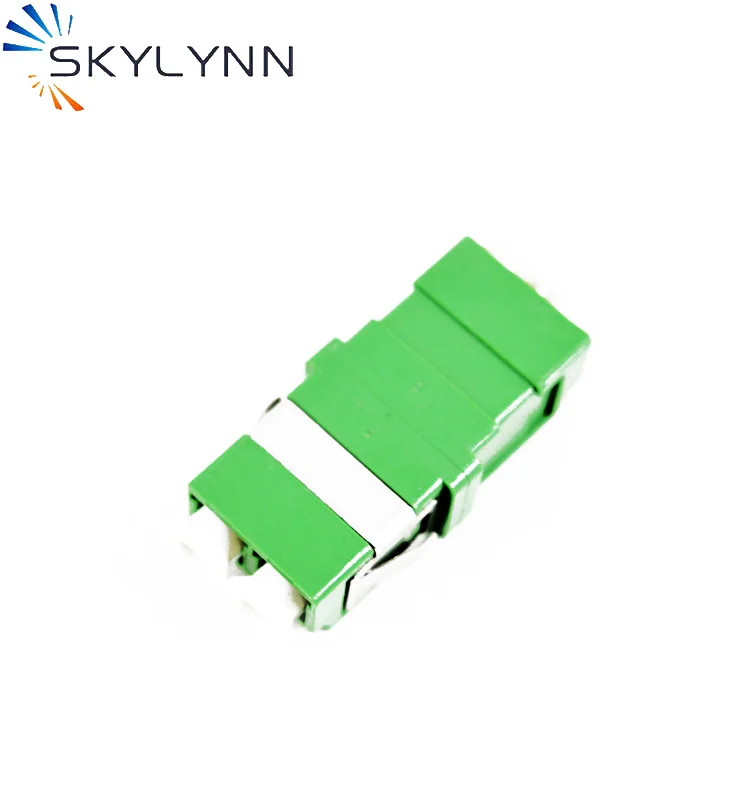

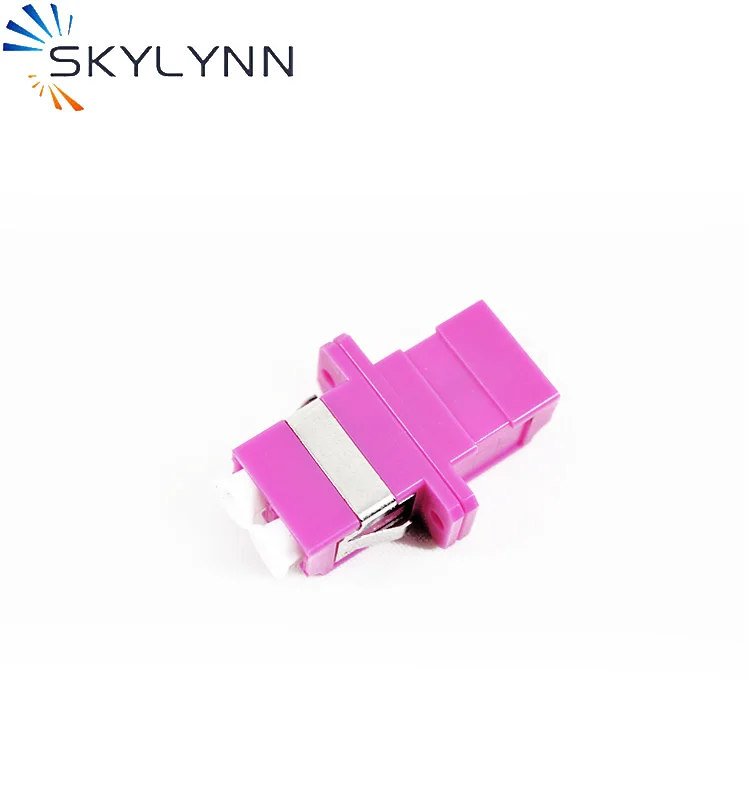

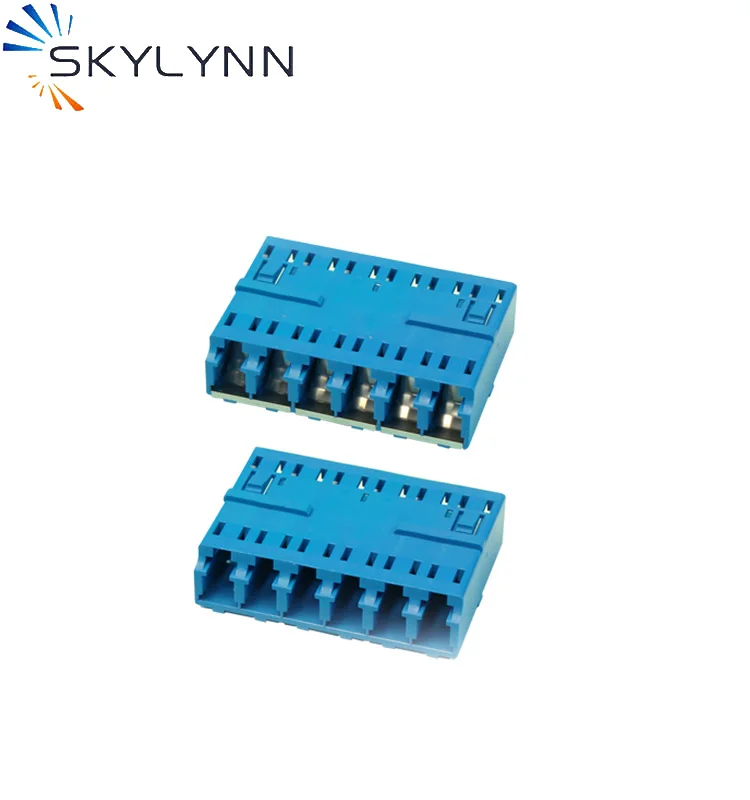

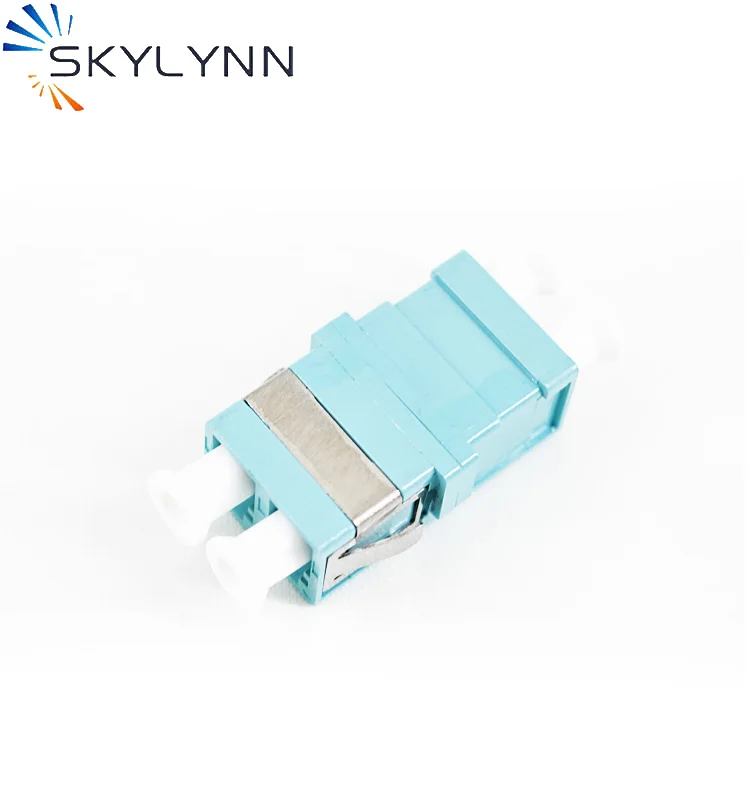

High quality lc duplex adapter SM MM simplex duplex fiber optic LC adapter

Feature

Good compatibility and directivity.

Can provide two kinds of internal sleeve,One is the precision ceramic sleeve,The main brand includs Japan precision engineering technology research institute,Chaozhou tricyclic,shenzheng UPCERA; The second is phosphor bronze sleeve, both can meet your requirements about high dimensional accuracy, good abrasion resistance,and good temperature characteristic

100% of the factory testing guarantee the reliability of the product use.

Precisely external size make it easier to install, flexible and convenient use.

Specification

Parameter	Unit	LC
		SM			MM
		PC	UPC	APC	PC
insertion loss	dB	≤0.2	≤0.1	≤0.2	≤0.2
Return Loss	dB	≥45	≥50	≥60	≥30
Interchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Mechanical endurance	Time	>1000
Operating temperature	°C	-40~75
Storage temperature	°C	-45~85
