New Fiber Optic FC connector Single mode Simplex coupler fiber optic Adapter

FC Adapter

Delivery

FOB

Quantity:

Contact Now

Place of Origin:CN
Brand Name:Skylynn
Model Number:FC Adapter
Name:FC Simplex Adaptor
Color:Blue/Green/Aqua/Violet
Operating Temperature:-40 to +70degree
Type:FC/UPC;FC/APC
Application:FTTH FTTB FTTX Network
Package:plastic case
Material:PC
Return Loss:>60dB
Wavelength:850nm/1310nm/1550nm
Certification:RoHS

Product Description

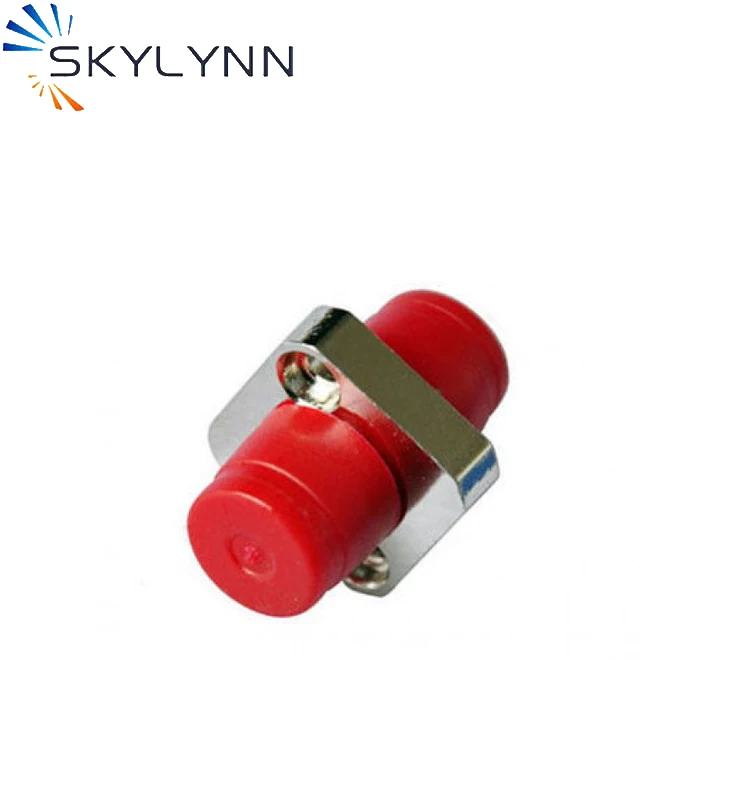

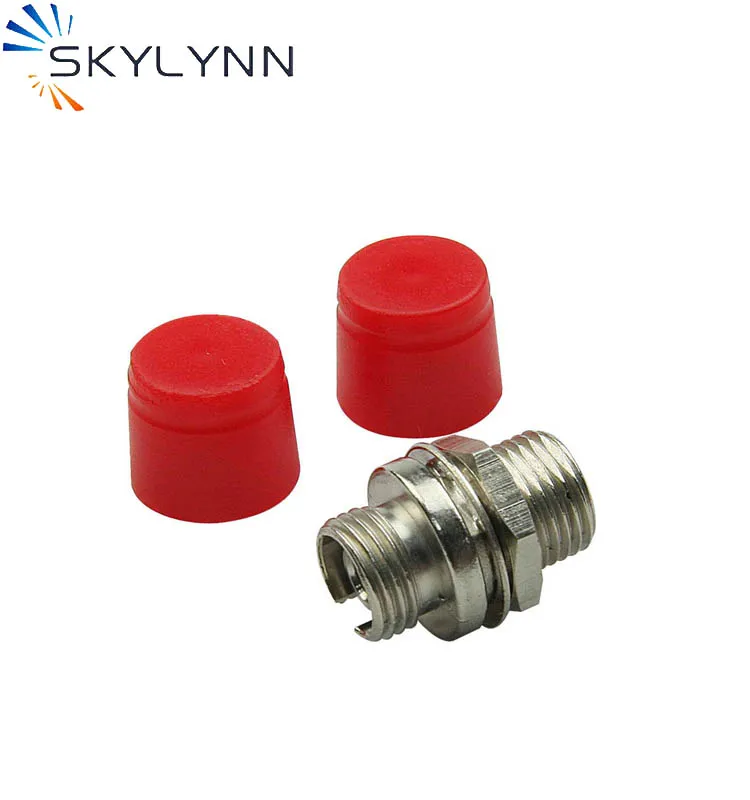

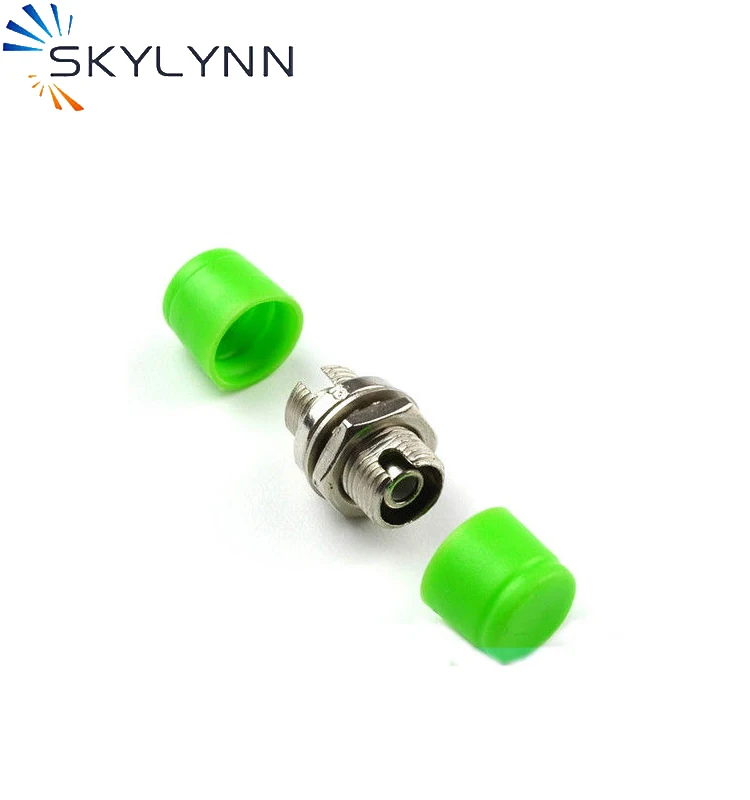

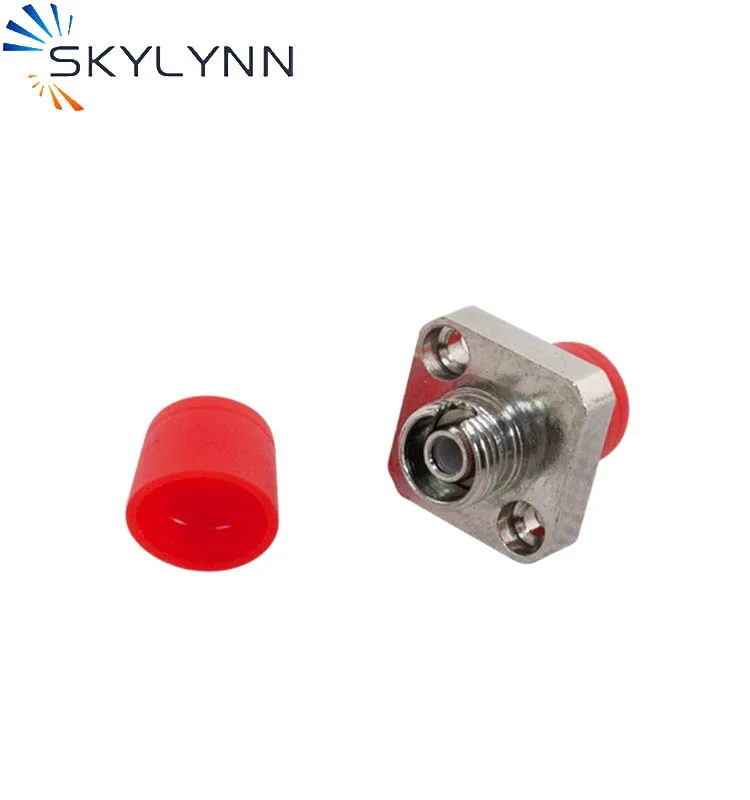

New Fiber Optic FC connector Single mode Simplex coupler fiber optic Adapter

Feature

Good compatibility and directivity.

Can provide two kinds of internal sleeve,One is the precision ceramic sleeve,The main brand includs Japan precision engineering technology research institute,Chaozhou tricyclic,shenzheng UPCERA; The second is phosphor bronze sleeve, both can meet your requirements about high dimensional accuracy, good abrasion resistance,and good temperature characteristic

100% of the factory testing guarantee the reliability of the product use.

Precisely external size make it easier to install, flexible and convenient use.

Specification

Parameter	Unit	FC
		SM			MM
		PC	UPC	APC	PC
insertion loss	dB	≤0.2	≤0.1	≤0.2	≤0.2
Return Loss	dB	≥45	≥50	≥60	≥30
Interchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Mechanical endurance	Time	>1000
Operating temperature	°C	-40~75
Storage temperature	°C	-45~85
