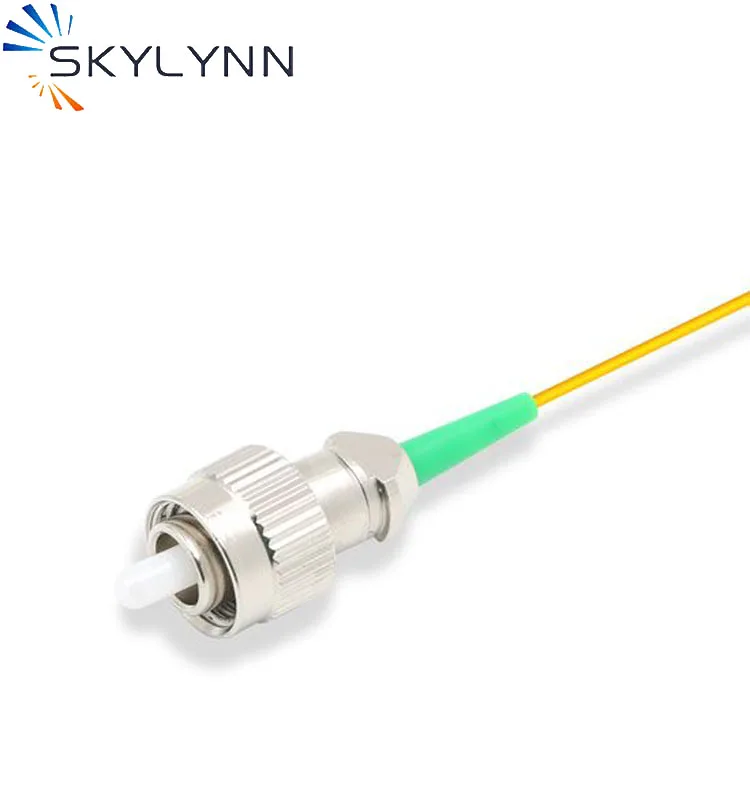

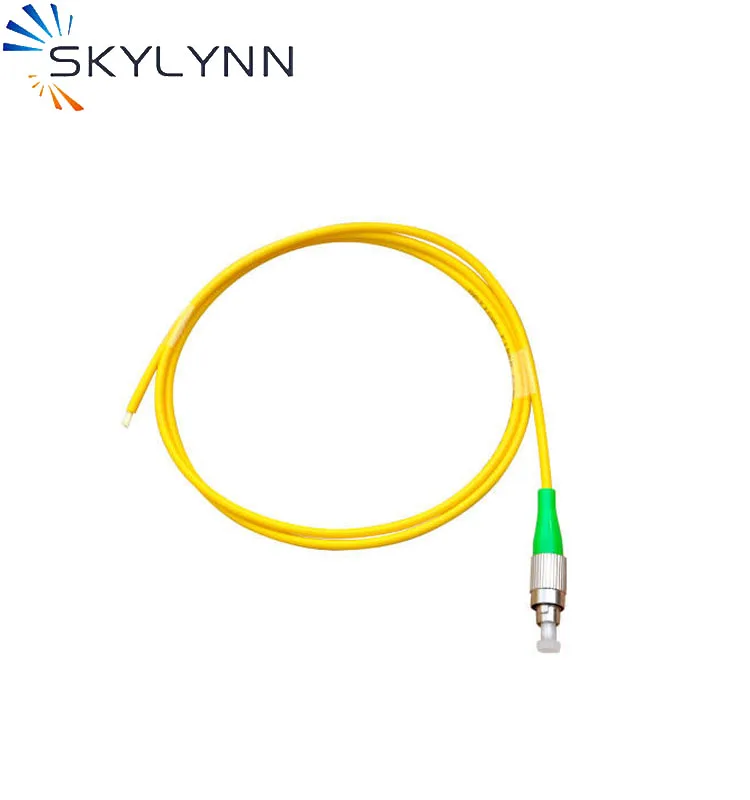

Single Mode Simplex FC/APC OD 0.9 mm 3m Fiber Optical Pigtail /Single Mode FTTH Pigtail FC Connector
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:FC/APC Simplex
- Product name:FC/APC Simplex Optical Fiber Pigtail
- Color:Yellow
- Fiber Type:G657A,G652D,single mode /multi mode
- Application:Telecommunication
- Material:LSZH
- Operating Temperature:- 40 ~ +75
- Storage Temperature:- 40 ~ +85
- Sample:Available
- Test:Whole Test
- Adapter:FC APC
Single Mode Simplex FC/APC OD 0.9mm 3m Fiber Optical Pigtail /Single Mode .FTTH Pigtail FC Connector
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Features:
(1) Ceramic Ferrule;
(2) High return loss;
(3) Low insertion loss;
(4) Good repeatability and and exchangeability;
(5) Excellent Polished and 100% tested;
(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
Item | SM(Single Mode) | MM(Multimode) | |||
Fiber Cable Type | G652D/G655/G657A1/G657A2/G657B | OM1 | OM2/OM3/OM4 | ||
Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
Cable OD (mm) | 0.9/2.0/3.0/Customized | ||||
Endface Type | PC | UPC | APC | UPC | UPC |
Typical Insertion Loss (dB) | <0.3 | <0.3 | <0.2 | <0.1 | <0.1 |
Return Loss (dB) | >50 | >50 | >60 | / | |
Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
Anti-tensile Force (N) | >70 | ||||
Temperature Range (℃) | -40~+80 | ||||
Shenzhen Skylynn Communication Limimted is an industry leader in providing GCS (Generic Cabling System) such as fiber optic products and LAN Cabling system products, engineering expertise and integrated services to the data communications and telecommunication networks industry since 2007. We design, manufacture and install such products that communications providers need to provide high-speed voice, video and data services to their customers.
Our extensive experience in both design and application crosses all markets, from Telco, Broadband and Wireless, to Electric Utility, OEM, Enterprise and Private Networks.
Nearly 10 years’ experiences in massive production of fiber optical assemblies ensure the reliable stabilities of its high quality and excellent performances of its products. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.
