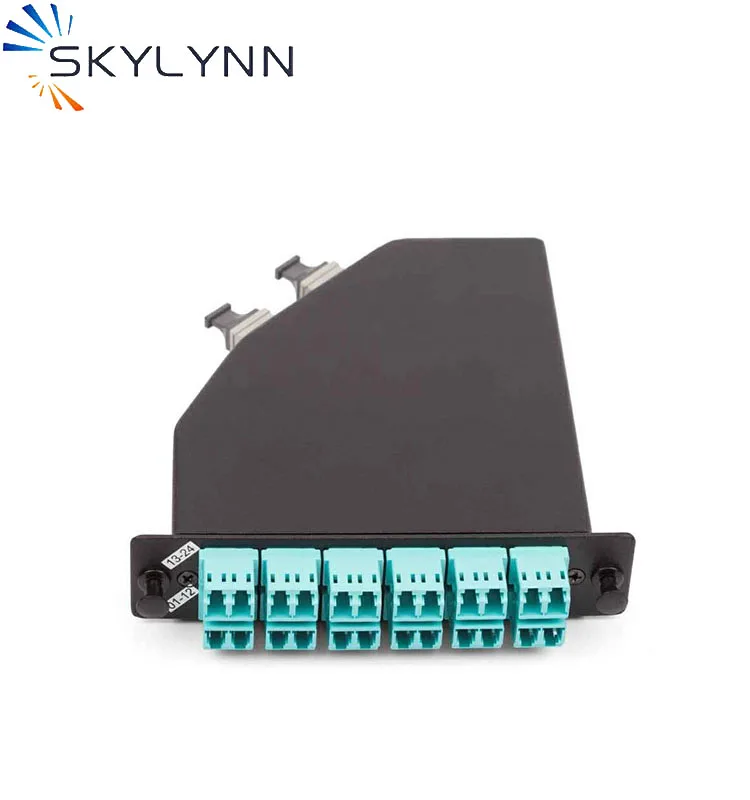

24 Cores MTP Fiber Optic Patch Panel MPO Module Cassette
- Product name:MPO/MTP Module Cassette
- Capacity:12 cores/24 cores
- Connector Type:MPO/LC/SC/FC/ST/MU
- Certification:ISO9001
- Fiber Type:SM/MM/OM3/OM4
- Application:FTTH FTTB FTTX Network
- Color:Black
- Material:Cold Rolled Steel
- Wavelength:850nm/1310nm/1550nm
- Warranty:5 Years
- Type:Racks & Enclosure
- No. of Fiber:24.
- Use:FTTX
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:MPO
24 Cores MTP Fiber Optic Patch Panel MPO Module Cassette
Description:
MPO/MTP module Cassettes is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end.
Features:
Adopts high quality engineering plastics and Aluminum alloy material
MPO faceplate can be upgraded easily.
All the front port are with mark no.easy to identify.
Quick and easy installed, flexible in configuration and easy to management
Application:
Machine rooms of data center and internet
Data communication network
Optical system access network
Storage area networking fiber channel
High density architectures
Performance MPO/MTP Connectors:
Fiber Type | Single Mode | Multi-mode | |
Standard Insertion Loss | Typical(dB) | ≤0.7 | ≤0.5 |
Low Insertion Loss | Typical(dB) | ≤0.35 | ≤0.35 |
Return Loss (dB) | ≥60(APC) | ≥30(PC) | |
≥50(PC) | |||
Tensile Strength (kgf) | 10 | ||
Durability(dB) | ≤0.2 500 matings | ||
Working Temperature(ºC) | -40 ~+85 | ||
Testing Wavelength (nm) | 1310/1550 | 850 | |
General Connector Termination:
Fiber Type | Single Mode | Multi-mode | |||
Parameter | UPC | APC | UPC | ||
Insertion Loss Maximum (dB) | ≤0.3 | ||||
Return Loss (dB) | ≥50 | ≥60 | ≥35 | ||
Durability (dB) | ≤0.2 500 matings | ||||
Working Temperature(ºC) | -40 ~+85 | ||||
Testing Wavelength (nm) | 1310/1550 | 850 | |||
Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
