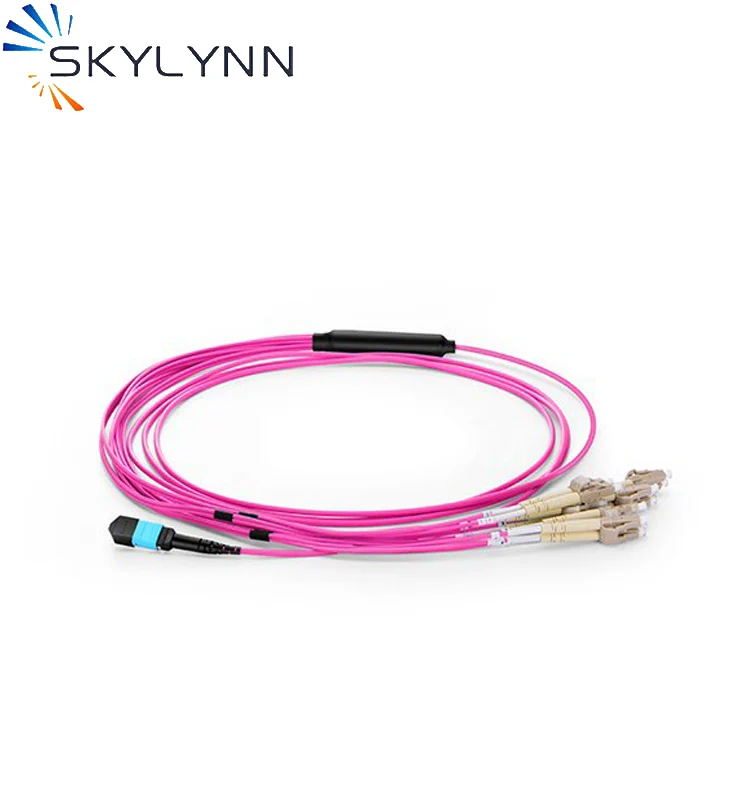

Fiber Optic 8 core MPO MTP Patch cord OM3 Cable

MPO Fibre ptach cord

Delivery

FOB

minimum order

1 piece

Supply Ability

2000piece / Week

Country of Origin

Shenzhen

Quantity:

Contact Now

Type:Optical Fibers
No. of Fiber:24.
Use:FTTX
Place of Origin:CN;GUA
Brand Name:skylynn
Model Number:MPO Fibre ptach cord
Name:MPO patch cord
Color:Aqua/Violet
Material:LSZH
Fiber Type:SM/MM/OM3
Application:FTTH System
Certification:CE RoHS
Connector Type:LC SC FC ST
Warranty:20 Years
Wavelength:1260-1650nm
Fiber Core:6core/8core/12core/24core

Fiber Optic 8 core MPO/MTP Patch cord OM3 Cable

Product Description

MPO Connectivity solution is ideally suited for high density environment that demands space saving,high speed and innovative cable management solutions. Our Fiber Distribution products bring in 6-24 fiber MTP® connectors and connect each fiber to an individual connector of your choice for easy patching and network distribution.

Product Specifications:

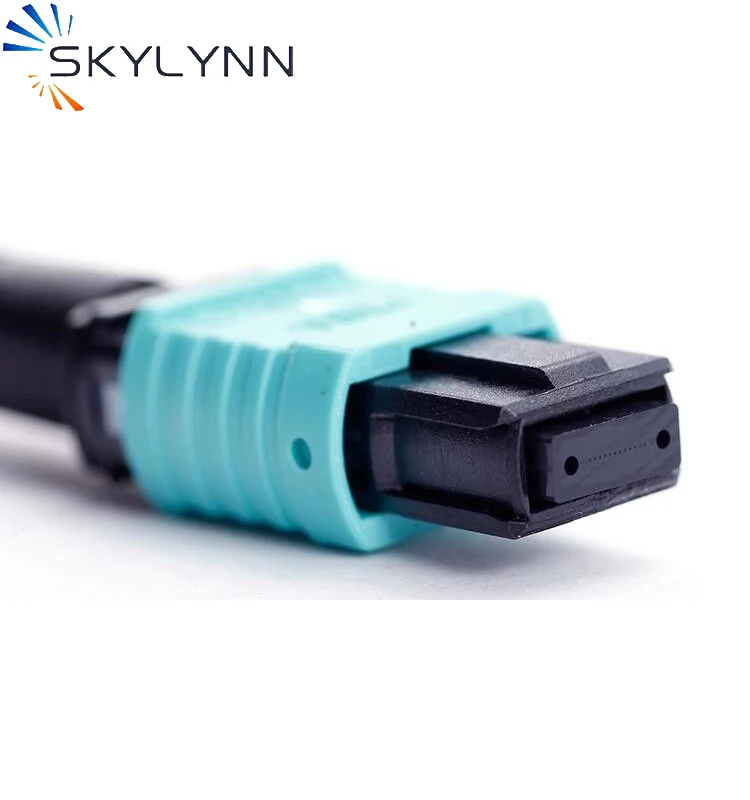

Connector A	MPO Female (pinless)	Connector B	MPO Female (pinless)
Fiber Mode	OM4 50/125μm	Wavelength	850/1300nm
Polish Type	UPC to UPC	Minimum Bend Radius	30mm
Insertion Loss	0.35dB Max(0.15dB Typ.)	Return Loss	≥20dB
Attenuation at 850nm	≤2.3dB/km	Attenuation at 1300nm	≤0.6dB/km
Jacket OD	3.0mm	Cable Jacket	LSZH
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Storage Temperature	-40°C to +85°C	Operating Temperature	-10°C to +70°C
