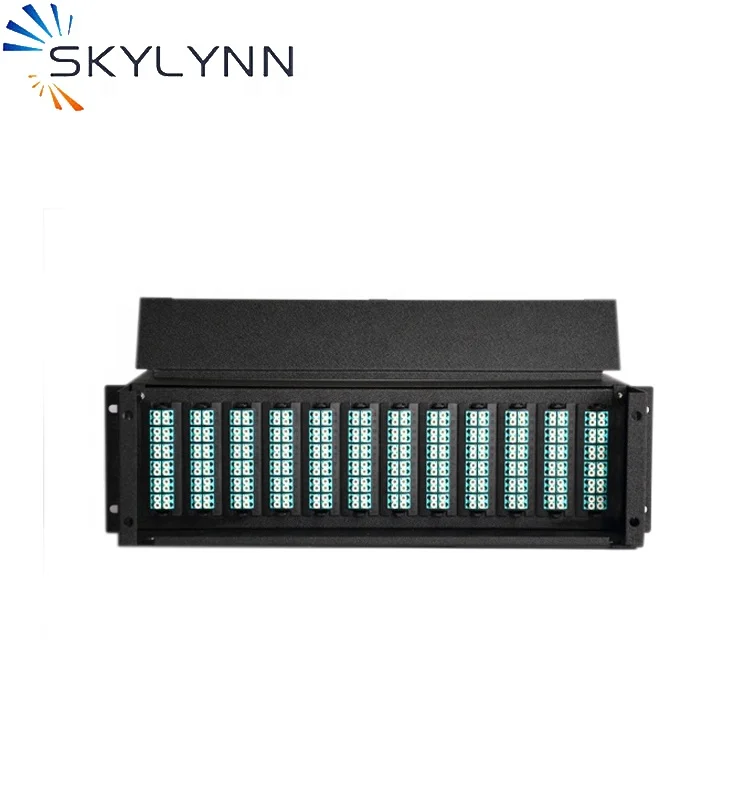

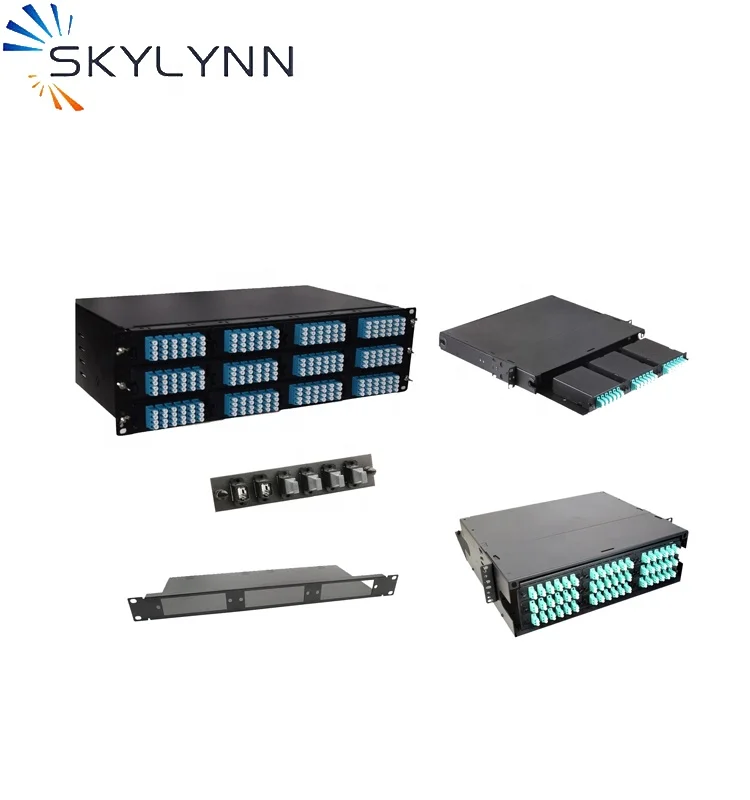

China MTP MPO Terminal box Module Cassette 96 48 24 12 8 6 Cores Fiber Optic Patch Panel
- Place of Origin:CN;GUA
- Brand Name:skylynn
- Model Number:MTP MPO Cassette
- Core pacacity:96 48 24 12 8 6 Cores
- Connector:MPO/LC/SC/FC/ST/MU
- Fiber Type:SM/MM/OM3/OM4
- Application:FTTH FTTB FTTX Network
- Material:cold-rolling steel
- Weight:10kg
- Size:L*W*T 48.3*25.5*13.3cm
- Color:Black
- Environmental temperature:-40℃~+60℃
- Relative temperature:≤95%(+40℃)
China MTP MPO Terminal box Module Cassette 96 48 24 12 8 6 Cores Fiber Optic Patch Panel
Description:

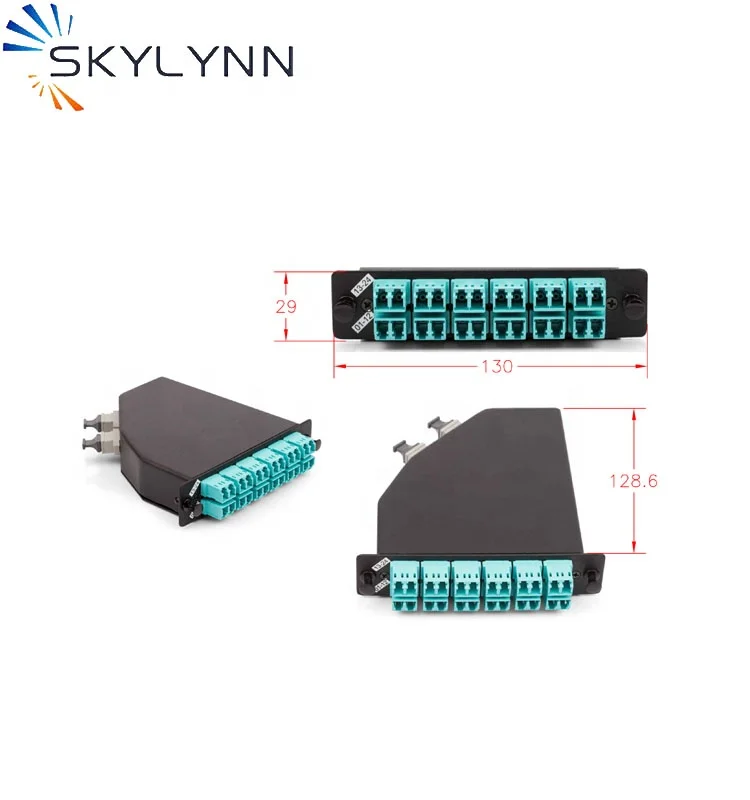

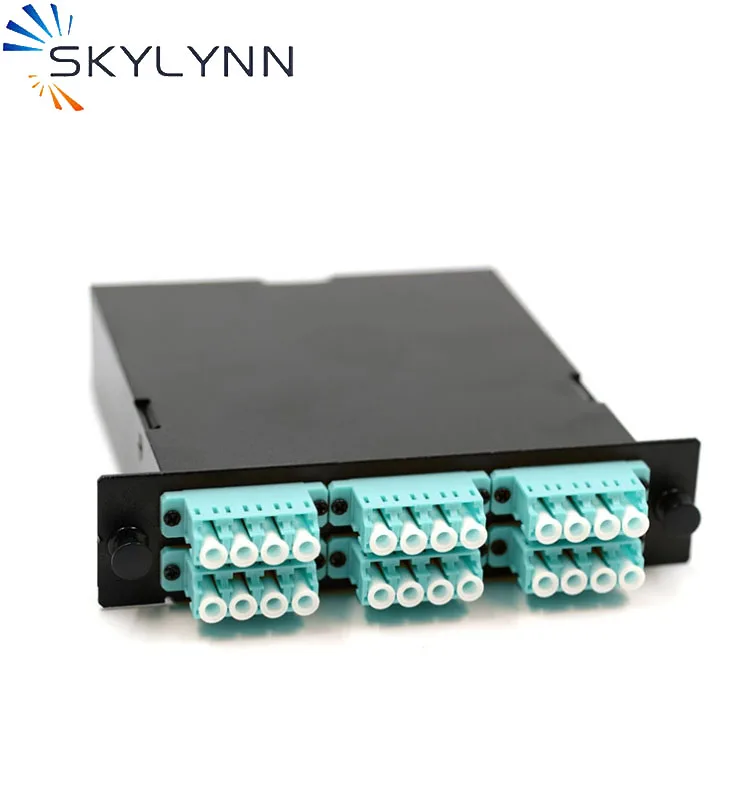

MPO/MTP module Module is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end.
Features:
Adopts high quality engineering plastics and Aluminum alloy material
MPO faceplate can be upgraded easily.
All the front port are with mark no.easy to identify.
Quick and easy installed, flexible in configuration and easy to management
Application:
Machine rooms of data center and internet
Data communication network
Optical system access network
Storage area networking fiber channel
High density architectures
Performance MPO/MTP Connectors:
Fiber Type | Single Mode | Multi-mode | |
Standard Insertion Loss | Typical(dB) | ≤0.7 | ≤0.5 |
Low Insertion Loss | Typical(dB) | ≤0.35 | ≤0.35 |
Return Loss (dB) | ≥60(APC) | ≥30(PC) | |
≥50(PC) | |||
Tensile Strength (kgf) | 10 | ||
Durability(dB) | ≤0.2 500 matings | ||
Working Temperature(ºC) | -40 ~+85 | ||
Testing Wavelength (nm) | 1310/1550 | 850 | |
