288 Cores Fiber Optic Enclosure IP68 Optical Fiber Splice Closure
- Place of Origin:CN
- Brand Name:Skylynn
- Model Number:Splice Closure
- Material:modified polymer plastic
- Core port:1 uncut port 2 round ports
- Certification:ip68
- Dimension:385*245*130mm
- pull force:100N
- weight:4.5kg
- sealing structure:mechanical sealing
- pack:540*410*375mm
- Brand Name:Skylynn/OEM
- Application:FTTH FTTB FTTX Network

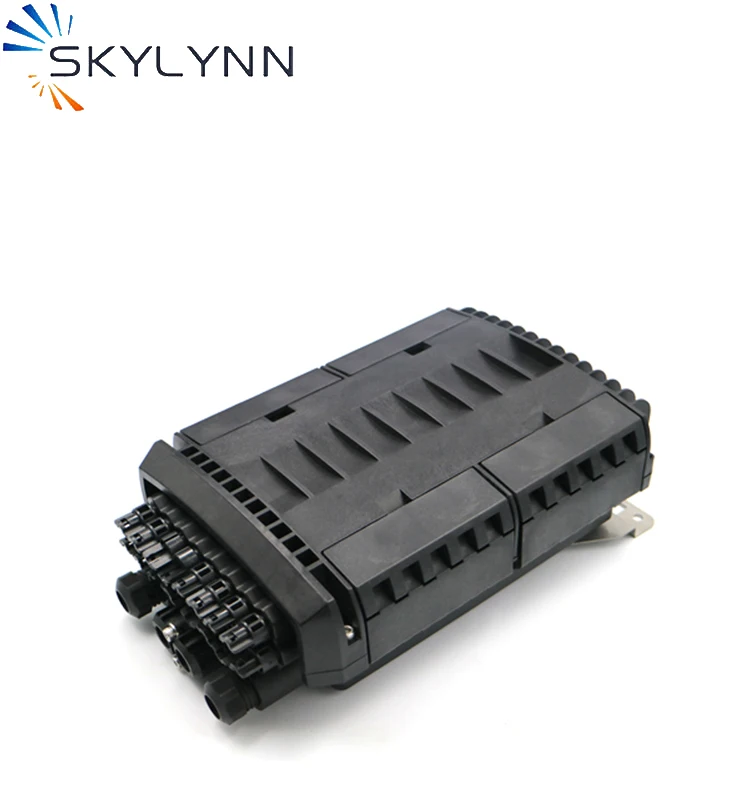

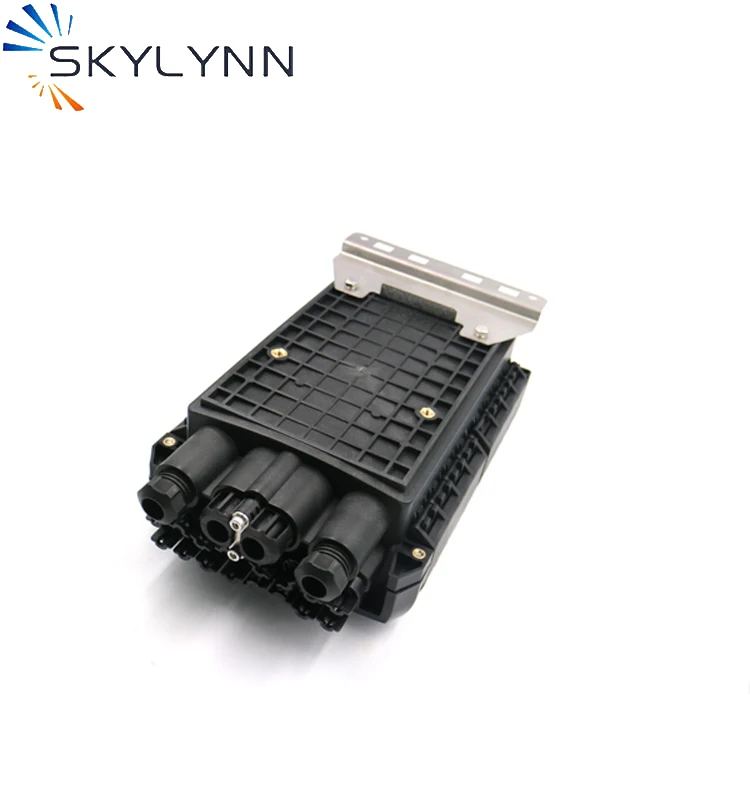

288 Cores Fiber Optic Enclosure IP68 Optical Fiber Splice Closure
Feature
l Water-proof design with IP-68 protection standard.

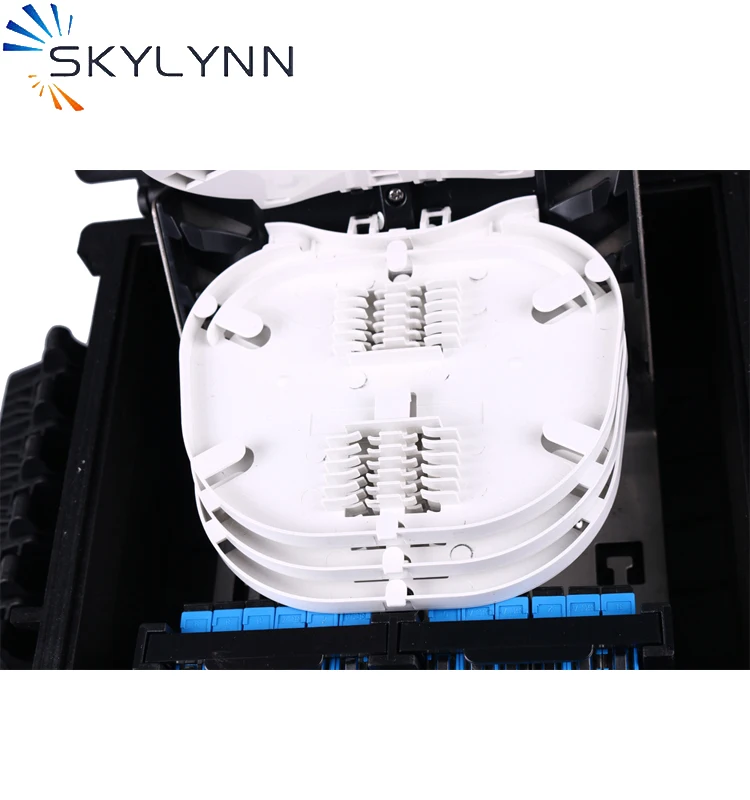

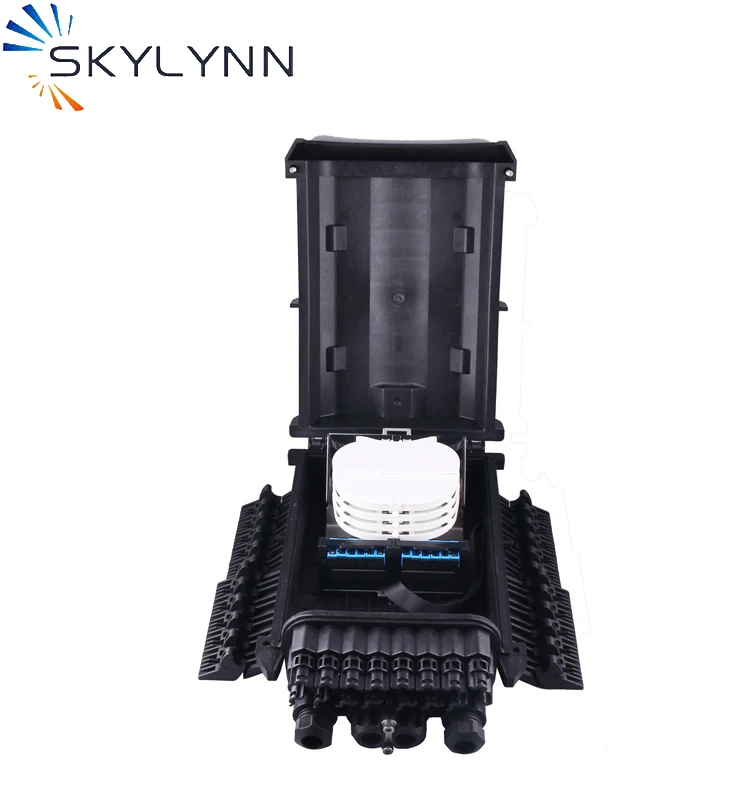

l Integrated with flap-up splice cassette and adaptor holder.
l Impact test: IK10, Pull Force: 100N Full rugged design
l All stainless metal plate and anti-rusting bolts nuts,
l Fiber bend radius control more than 40mm.
l Suitable for the fusion splice or mechanical splice
l 2pcs of 1*8 splitter can be installed as an option
l Mechanical sealing structure and mid-span cable entry.

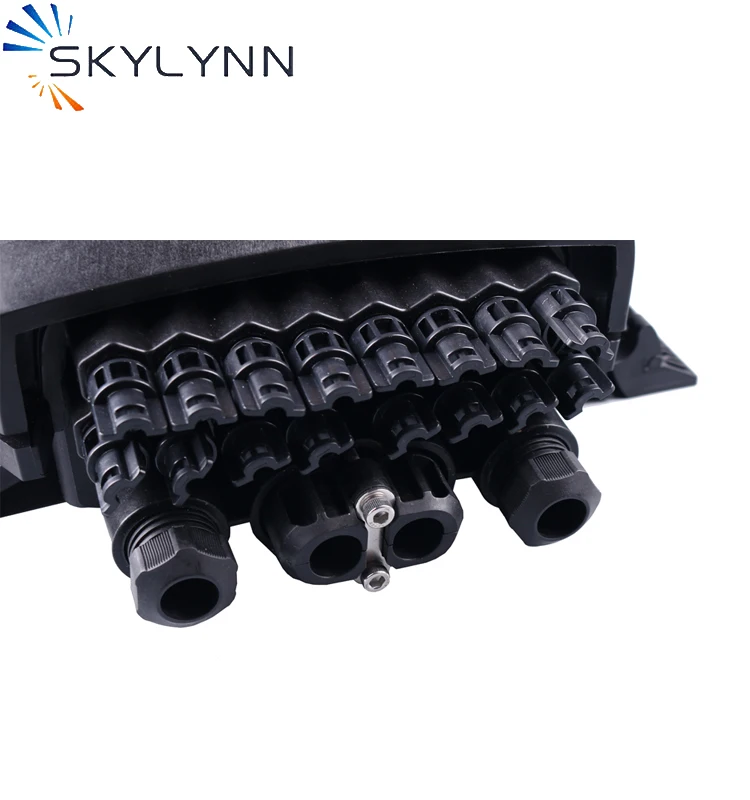

l 16ports cable entrance for drop cable.
l 24 adaptors for drop cable patching,
Applications
l Wall mounting and pole mounting installation
l FTTH pre-installation and field installation
l 4-7mm cable ports suitable for 2*3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-support
