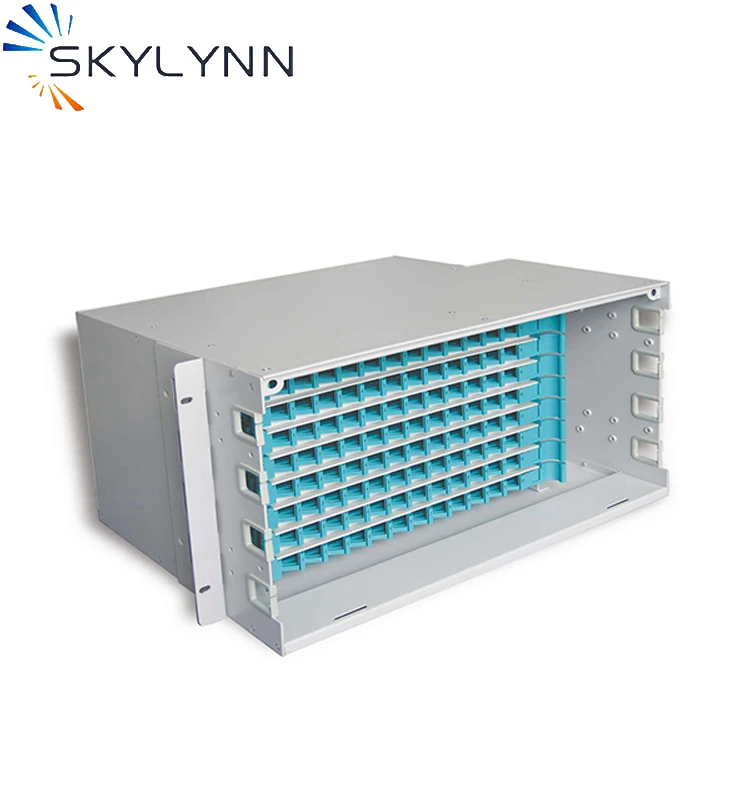

Cold-Rolling Steel 19 Inch 5U Fiber Optical Distribution Frame 96 Core ODF
ODF
Delivery
FOB
Quantity:
- Place of Origin:CN;GUA
- Type:Racks & Enclosure
- Use:FTTX
- Brand Name:Skylynn
- Model Number:ODF
- No. of Fiber:96
- Model Number::ODF-FC 96
- Material::cold-rolling steel
- Core pacacity::96 core
- Weight::10 kg
- adapter::SC LC FC ST
- Core pacacity Tray::8 Splice Tray
- Size::L*W*T 48.3*25.5*13.3cm
- Fiber Type::SM/MM/OM3
- Application::indoor type
- Environmental Temperature::-40℃~+60℃
Product Description
Rack mounted ODF optical fiberdistribution frame is designed for fiber connection and distribution of backbone fiber cable; it is suitable for fiber splicing, storage and protection. Their standard 19 inches width make them compatible to standard optical distribution frame with 19 inches width.
Model Number | ODF-FC 96 |
Name of the product | Optical Distribution Frame |
Environmental temperature | -40℃~+60℃ |
Relative temperature | ≤95%(+40℃) |
weight | 10 kg |
Atmospheric pressure | 70kpa~106kpa |
Adapter type | SC FC ST LC |
Size | L*W*T 48.3*25.5*13.3cm |
Features
Standard size, light weight and reasonable structure

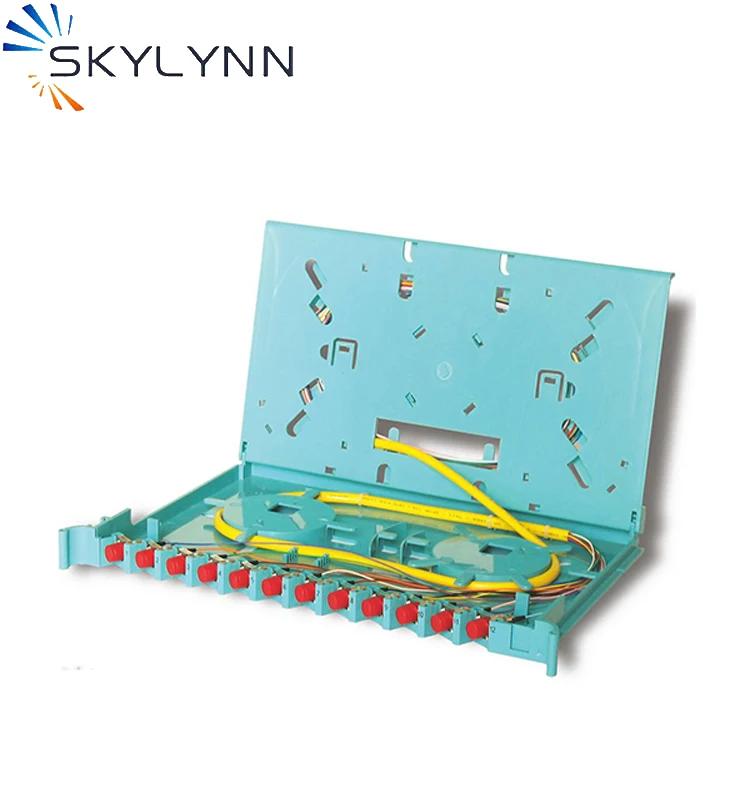

Splice tray inside changeable
Can be used in 19''standard distribution frame
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
Front mark on the plate is easy for identification and operation
24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
Easy for management and operation
Splice tray inside changeable
Can be used in 19''standard distribution frame
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
Front mark on the plate is easy for identification and operation
24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
Easy for management and operation
Application
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Fiber to the home (FTTH)
LAN/WAN
CATV

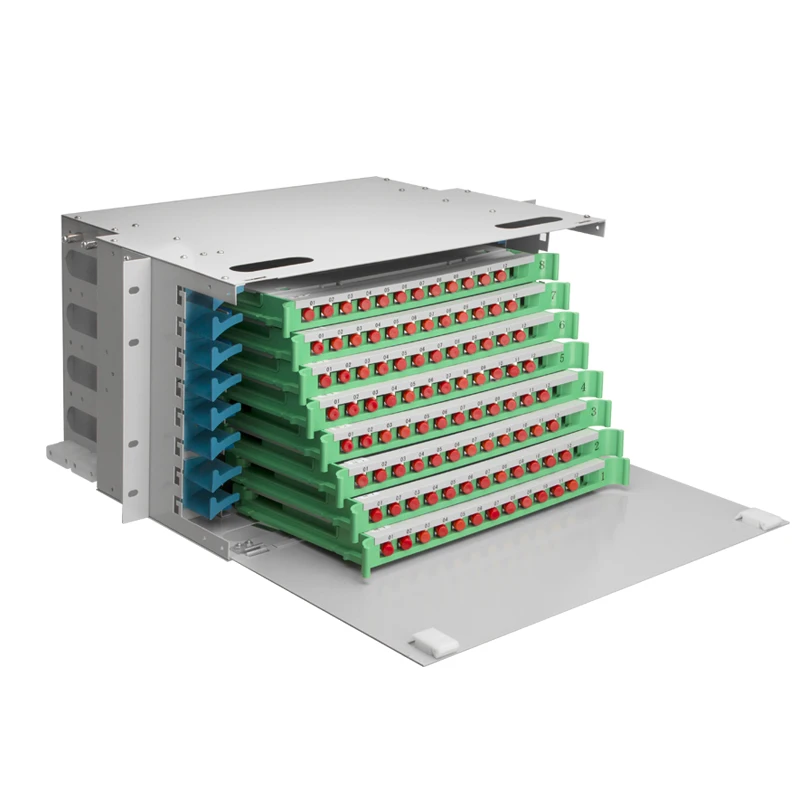

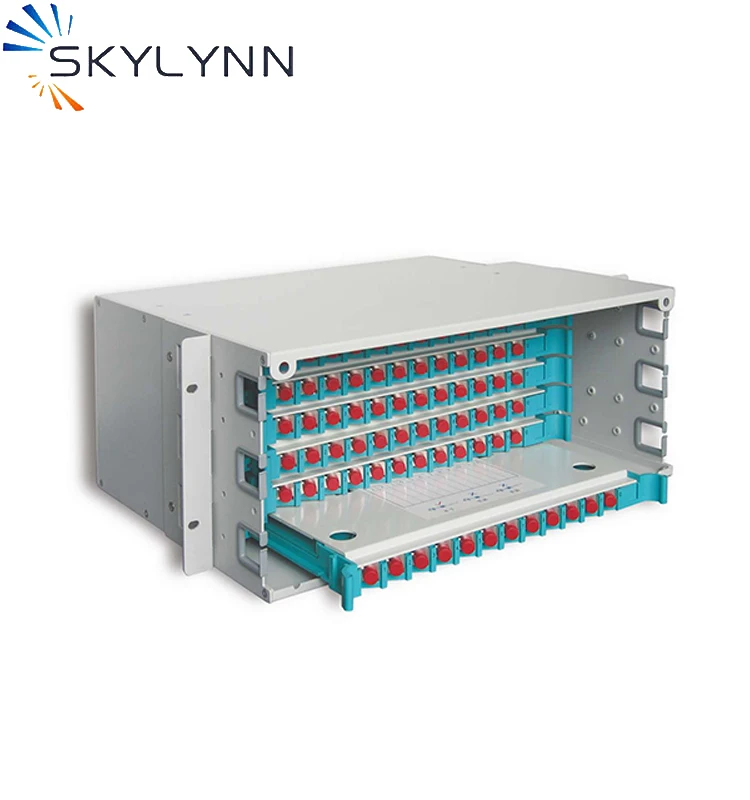

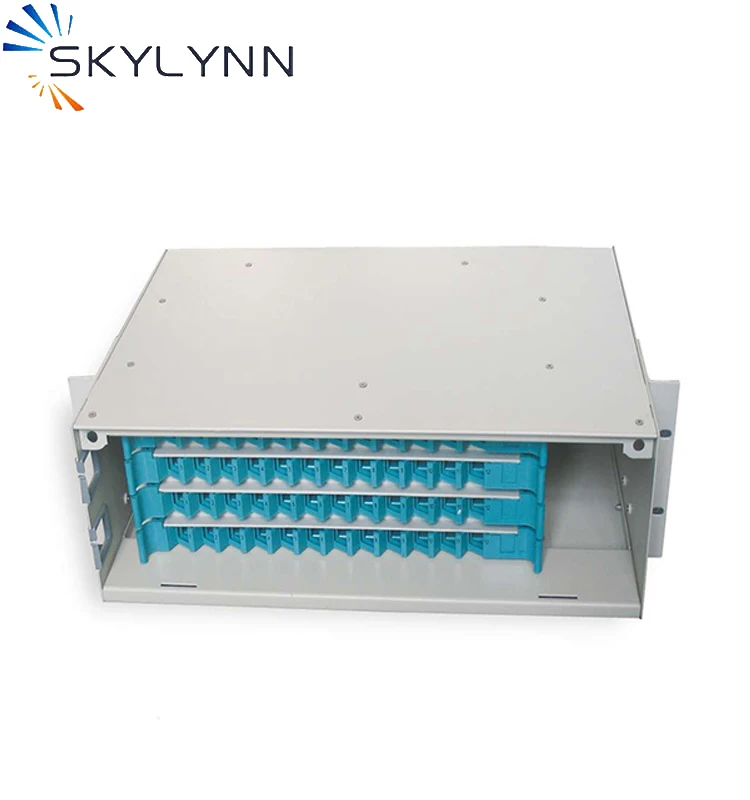

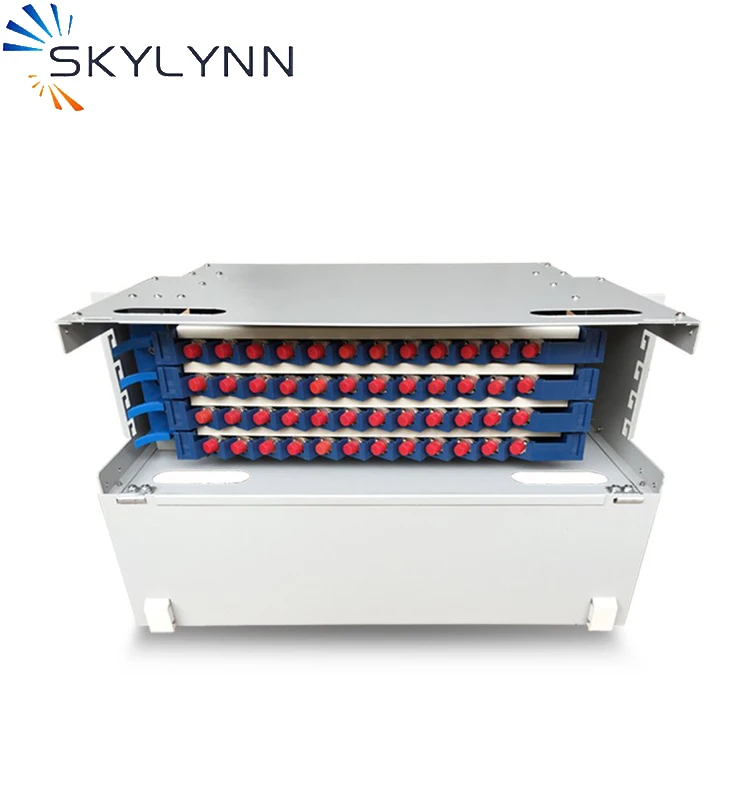

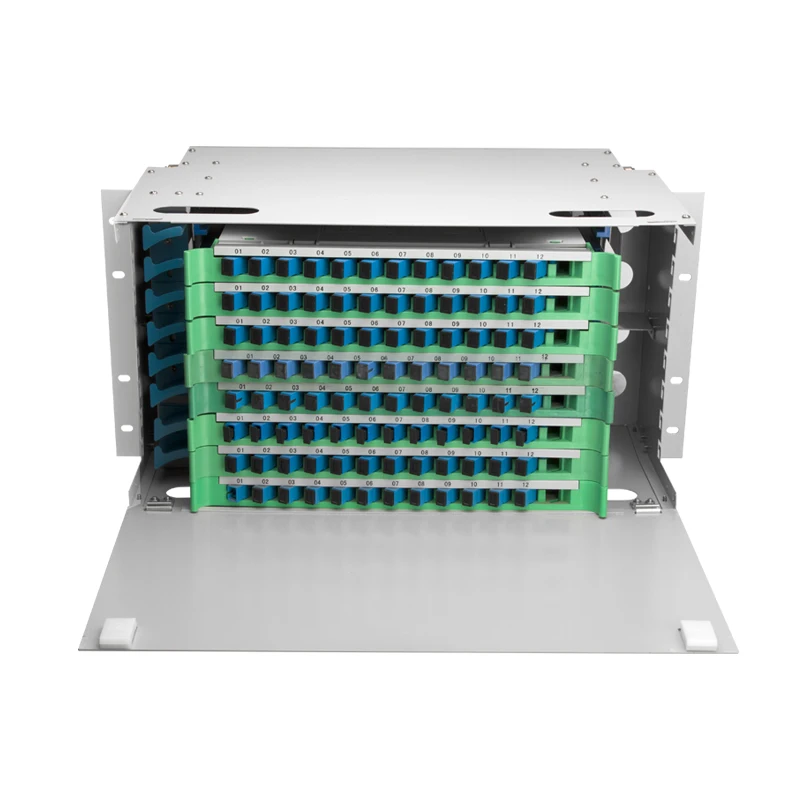

Detailed Images
Size Information
Size Chart
Core Capacity | 24 | 48 | 72 | 96 | 144 | ||||
Length*Width | 483*280 | ||||||||
Tall | 2U | 3U | 4U | 5U | 7.5U | ||||
Related Products

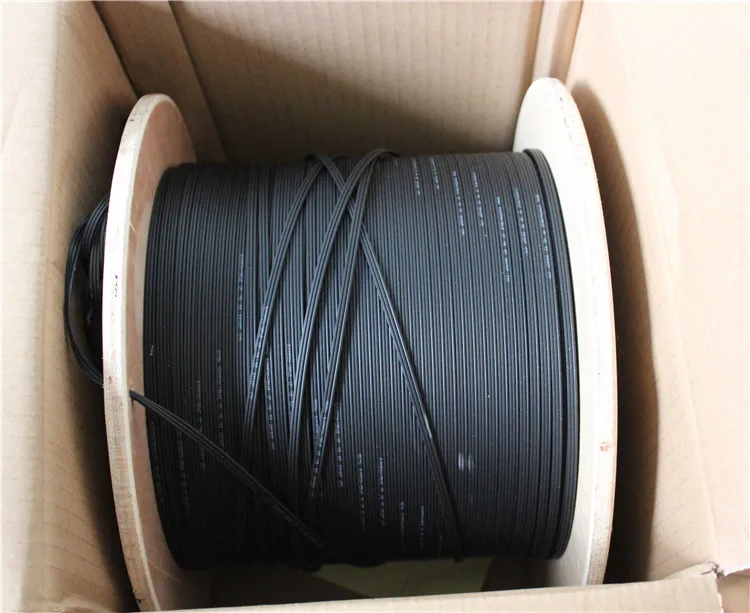

Packing&Shipping
