indoor fiber optic cables for office buildings China

Fiber Optic Cable Indoor type aramid yarn 0.9 1.2mm 2 4 6 8 36 48 56 128 216 core single mode Tight Buffer fiber optic Cable

GJFJV(H)
Delivery
FOB
Quantity:
Contact Now
  • Place of Origin:CN;GUA
  • Brand Name:Skylynn
  • Model Number:Distribution Cable
  • Fiber Type:Single Mode Multi mode

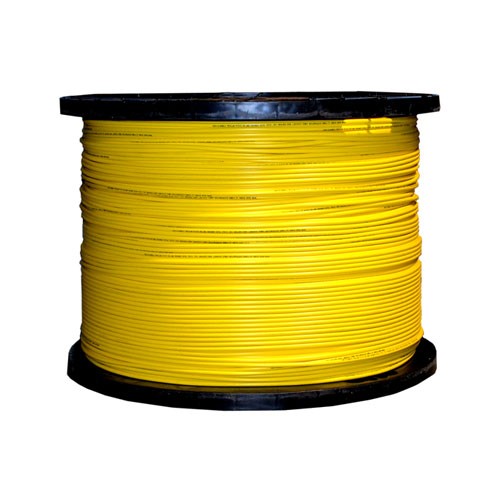

  • Length::1000m/2000m/drum
  • Brand name:OEM/SKYLYNN
  • Application:FTTH FTTB FTTX Network
  • Product name:Aramid Yarn 12 Core Indoor Distribution cable
  • fibre count:2~12
  • outter sheath:PVC/LSZH
  • Model Number:GJFJV(H)
  • Color:Yellow,blue , orange ,aqua etc
  • Type:G652 G657
Product Description

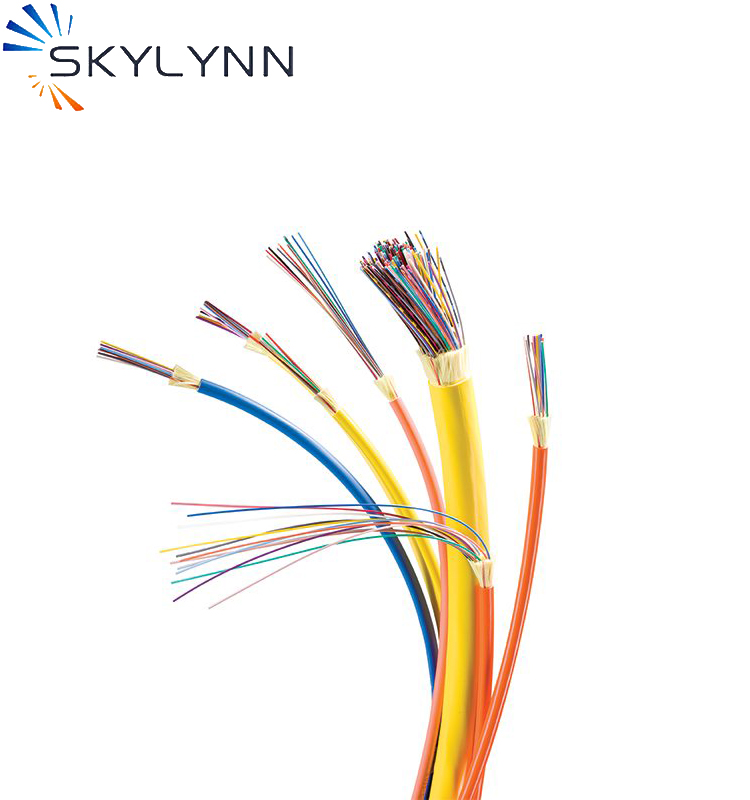

Fiber Optic Cable Indoor type aramid yarn 0.9 1.2mm 2 4 6 8 36 48 56 128 216 core single mode Tight Buffer fiber optic Cable

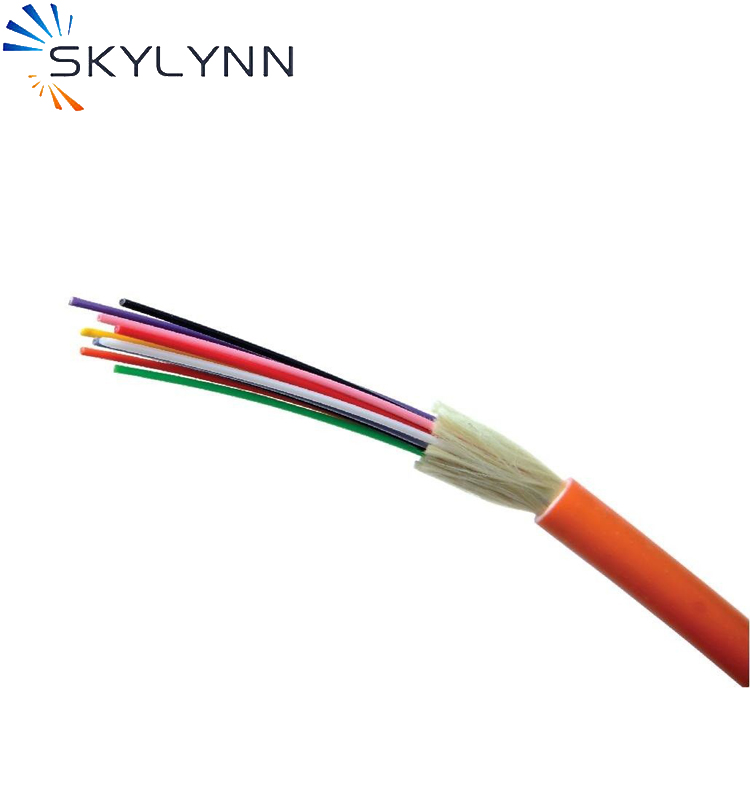

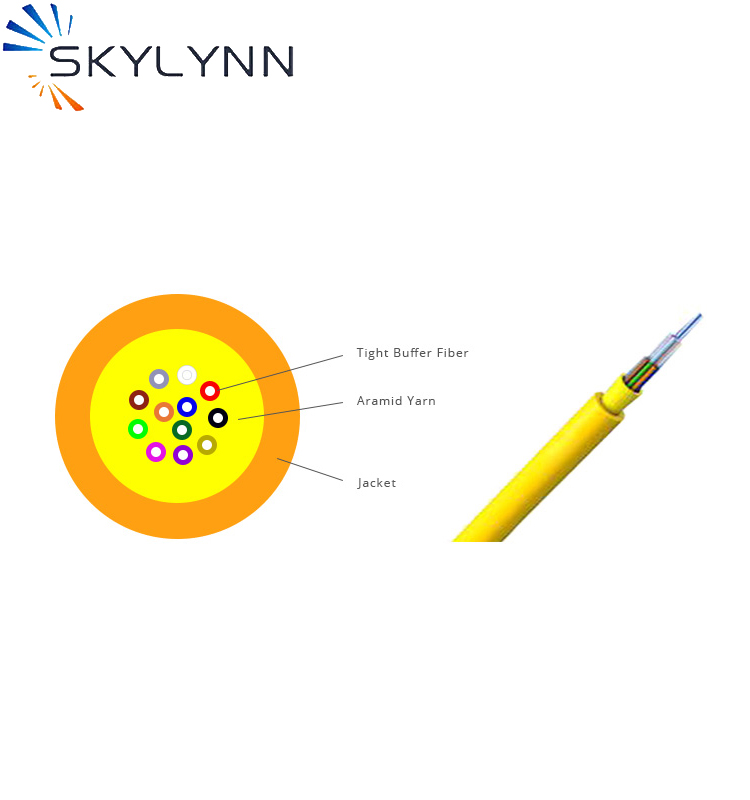

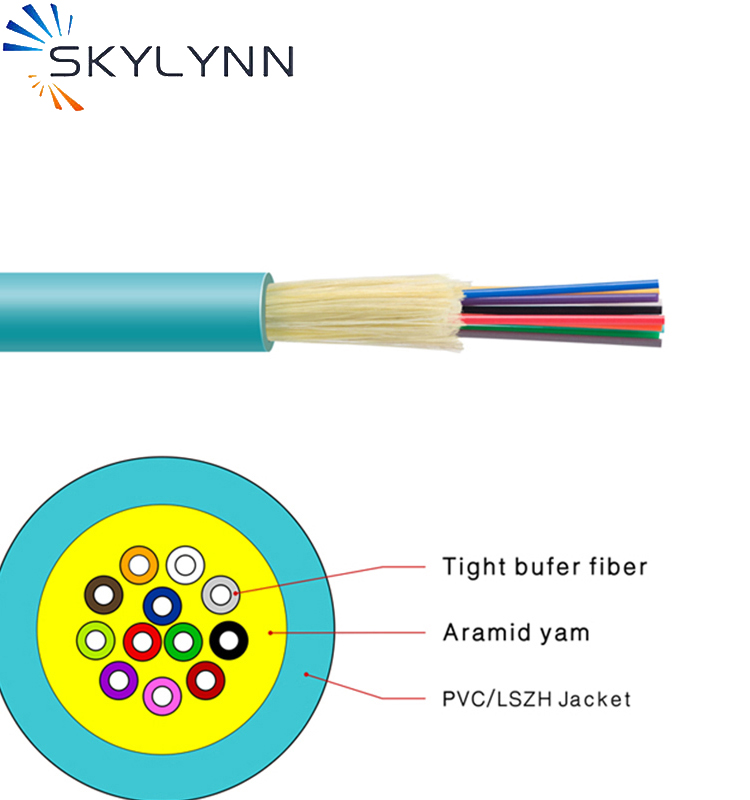

Product Construction:
Fiber:

900um tight buffer fibers


Strength Member:
Kevlar yarns


Outer Jacket:
Flame resistant PVC or LSZH


Features:

  • Tight buffer fiber easy of stripping.
  • Tight buffer fiber have excellent flame-retardant performance.
  • Aramid yarn as strength member make cable have excellent tensile strength.
  • The outer jacket material have many advantages such as anti-corrosion anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.

Applications:

  • Indoor any purpose cable distribution.
  • Backbone distribution cable in a building.

Options:

Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber and OM1, OM2, OM3, OM4 muti mold fiber.

indoor fiber optic distribution cable

G.652D50/125μm62.5/125μm
Attenuation (+20℃)@850nm≤3.0 dB/km≤3.0 dB/km
@1300nm≤1.0 dB/km≤1.0 dB/km
@1310nm≤0.36 dB/km
@1550nm≤0.22 dB/km
Bandwidth (Class A)@850nm≥500 MHz·km≥200 MHz·km
@1300nm≥1000 MHz·km≥600 MHz·km
Numerical Aperture0.200±0.015NA0.275±0.015NA
Cable Cut-off Wavelength λcc≤1260nm



-2 (2).jpg-2.jpg-5.jpg-1 (2).jpgbulk-fiber-yellow.jpg

750 (2).jpg
