Free Sample Indoor 2 core duplex zipcord optical fiber cable
- Place of Origin:CN;GUA
- Number of Conductors:2
- Brand Name:Skylynn
- Model Number:Indoor duplex zipcord
- Type:Coaxial
- Product name:indoor fiber cable
- Mode number:Duplex Zipcord
- Sheath Color:Yellow, Orange, Aqua, Violet
- Material:PVC,LSZH
- Application:Telecommunication
- Mode:Single Mode, Multi-mode, OM3, OM4
- Temperature range:-20°~60°C
- Fiber count:2 core
- Fiber Type:G652D, G657A, G655
Free Sample Indoor 2 core duplex zipcord optical fiber cable
Features:
Choice of Fibre Type.
Choice of Outer Diameter.
High Strength Aramid Yarn Strength Members.
Easy to Strip.
Choice of Outer Sheath Material & color.
Temperature Characteristics:
1.Operate temperature range: -20oC to +60oC .
2.Storage temperature range: -20oC to +60oC .
Zipcord Optical Fiber Cable | ||||
Outer Diameter (mm) | 1.6x3.3 | 1.8x3.7 | 2.0x4.1 | 2.8*5.7 |
Normal Weight (kg/km) | 5.7 | 6.7 | 8.2 | 13.2 |
Long term tensile strength (N) | 80 | 80 | 100 | 160 |
Short term tensile strength (N) | 160 | 160 | 200 | 300 |
Minimum Static bending radius | 10H | |||
Minimum Dynamic bending radius | 20H | |||
Long term crush resistance (N) | 500 | |||
Short term crush resistance (N) | 100 | |||

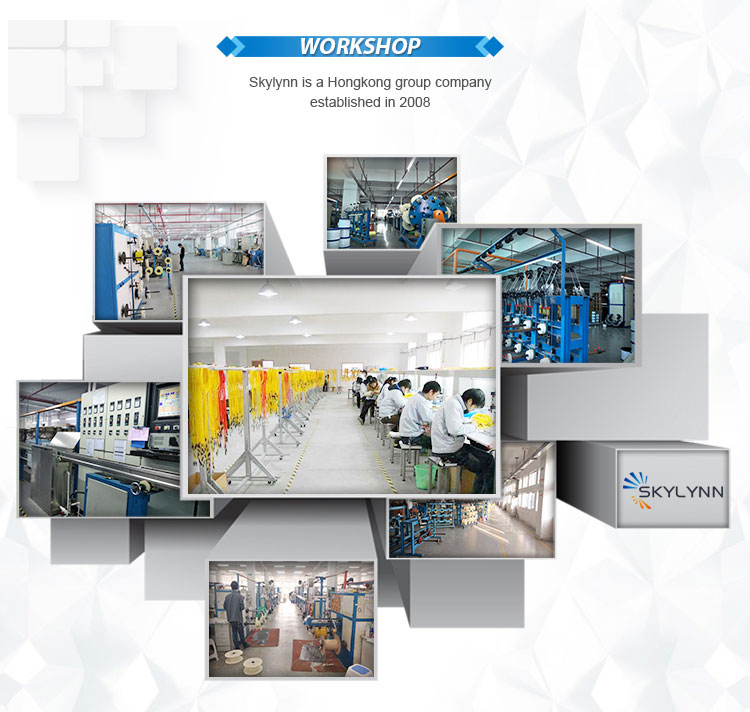

Shenzhen Skylynn Communication Limimted is an industry leader in providing GCS (Generic Cabling System) such as fiber optic products and LAN Cabling system products, engineering expertise and integrated services to the data communications and telecommunication networks industry since 2007. We design, manufacture and install such products that communications providers need to provide high-speed voice, video and data services to their customers.
Our extensive experience in both design and application crosses all markets, from Telco, Broadband and Wireless, to Electric Utility, OEM, Enterprise and Private Networks.
Nearly 10 years’ experiences in massive production of fiber optical assemblies ensure the reliable stabilities of its high quality and excellent performances of its products. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.
