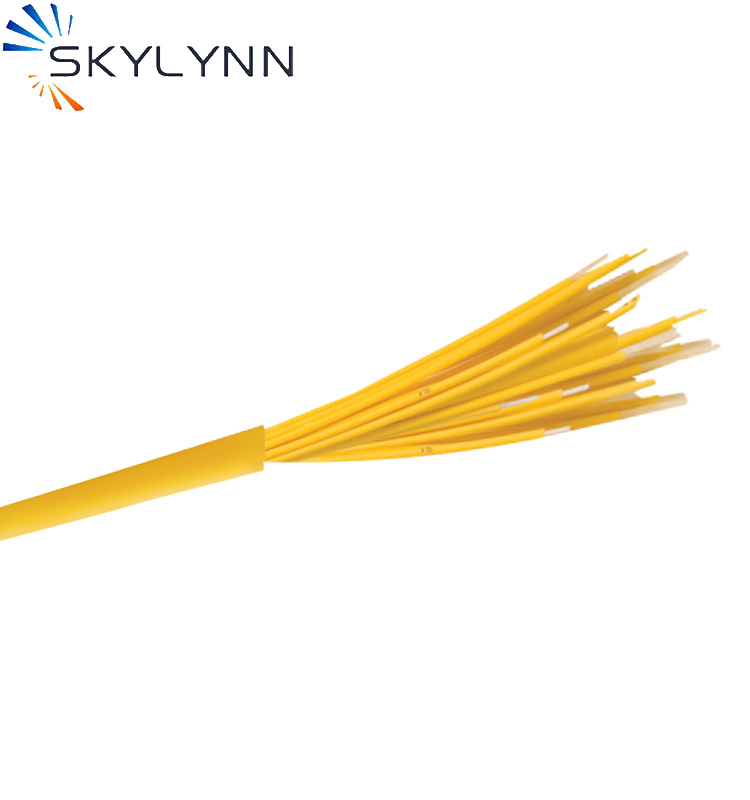

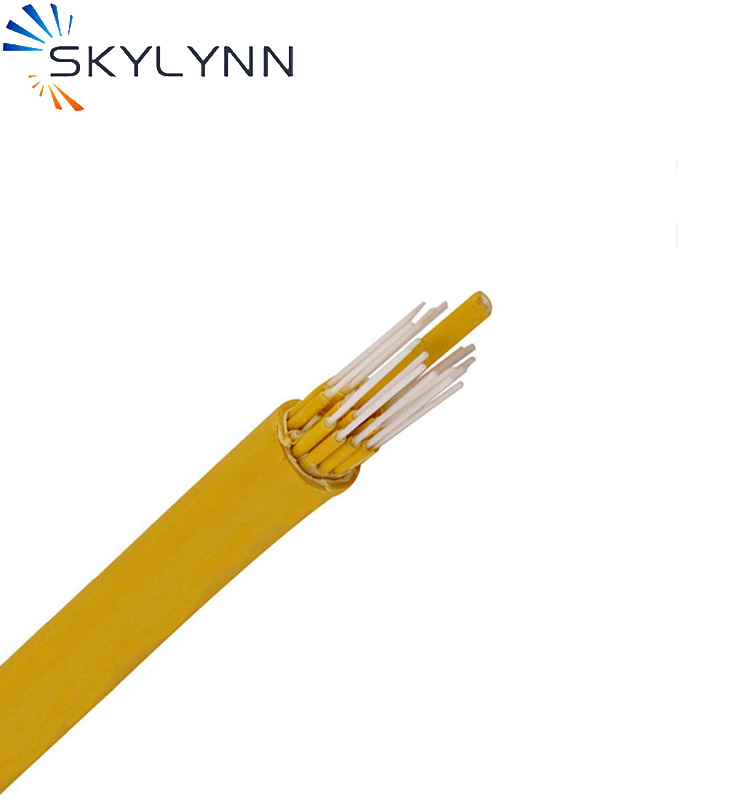

Good Quality 2.0/ 3.0mm Indoor Simplex Fiber Optic Breakout Cable
- Brand Name:Skylynn
- Model Number:Breakout Indoor Simplex
- Place of Origin:CN;GUA
- Product name:Fiber Optic Breakout Cable
- Mode number:Breakout 2.0mm 3.0mm
- Fiber Type:Simplex
- Application:Adopted to indoor distribution
- Characteristics:Breakout
- Mode:Single Mode/ Multi Mode
- Temperature range:-20°~60°C
- Package:2km/roll
- Core number:2-72
- Test:Whole Test
Good Quality 2.0/ 3.0mm Indoor Simplex Fiber Optic Breakout Cable
Adopted to indoor distribution.
As pigtail of communication equipment
Suitable for communication equipment servrd
Can be installed conveniently and perated simply
Choice of Fibre Type.

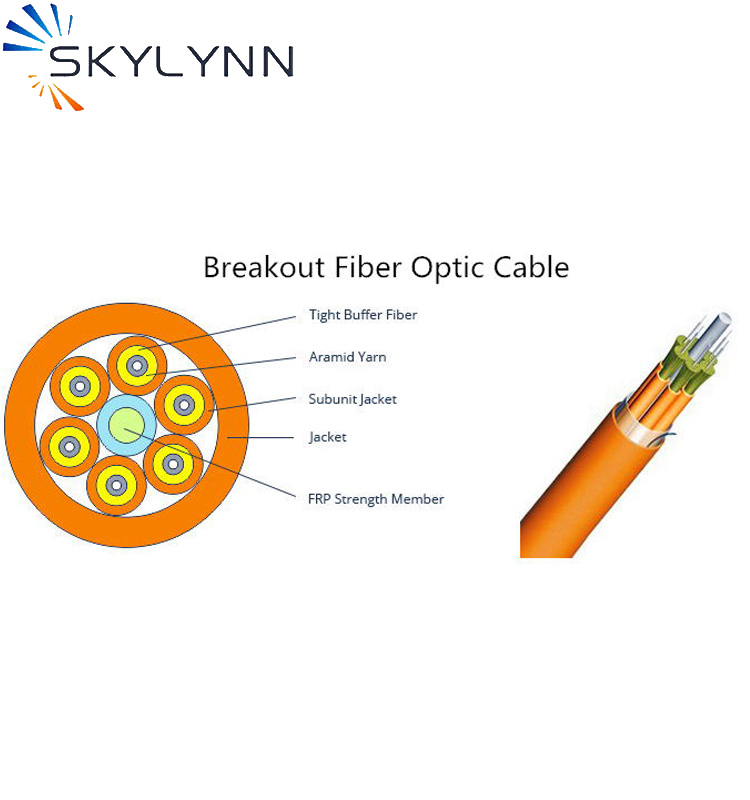

High Strength Aramid Yarn Strength Member.
Easy to Strip.
Choice of Outer Sheath Material and Color.
Fibre Number | OD (mm) | Cable Weight (kg/km) | Drum Dimensions (mm) | Drum Weight (Kg/pcs) | Min. Bend Radius | Max. Tension (N) | ||
Static | Dynamic | Short terms | Long terms | |||||
2 | 7.2 | 45 | 800 | 43 | 10D | 20D | 660 | 220 |
4 | 7.2 | 54 | 800 | 43 | ||||
6 | 8.3 | 75 | 900 | 54 | ||||
8 | 9.4 | 100 | 900 | 54 | ||||
12 | 12.2 | 170 | 1100 | 76 | ||||
24 | 15.6 | 230 | 1300 | 108 | ||||
Fibre Number | Unit Count | Fibre in Unit | OD (mm) | Cable Weight (kg/km) | Drum Dimensions (mm) | Drum Weight (Kg/pcs) | Min. Bend Radius | Max. Tension (N) | ||
Static | Dynamic | Short terms | Long terms | |||||||
36 | 6 | 6 | 25.6 | 495 | 1400 | 158 | 10D | 20D | 1600 | 600 |
48 | 8 | 6 | 30.0 | 845 | 1500 | 176 | ||||
64 | 8 | 8 | 34.5 | 876 | 1400 | 158 | 2000 | 700 | ||
72 | 6 | 12 | 38.0 | 1100 | 1400 | 158 | 2000 | 800 | ||
