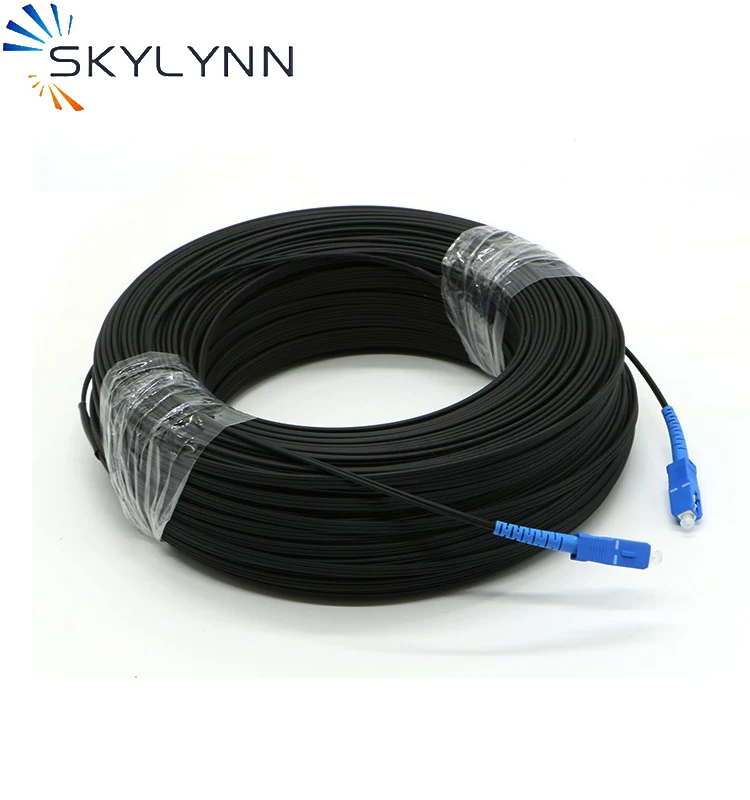

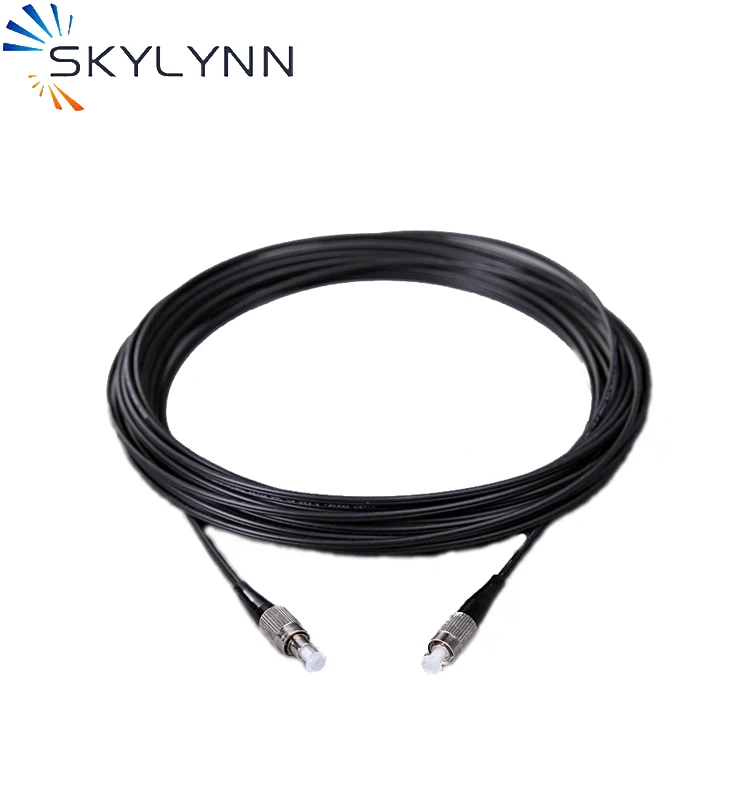

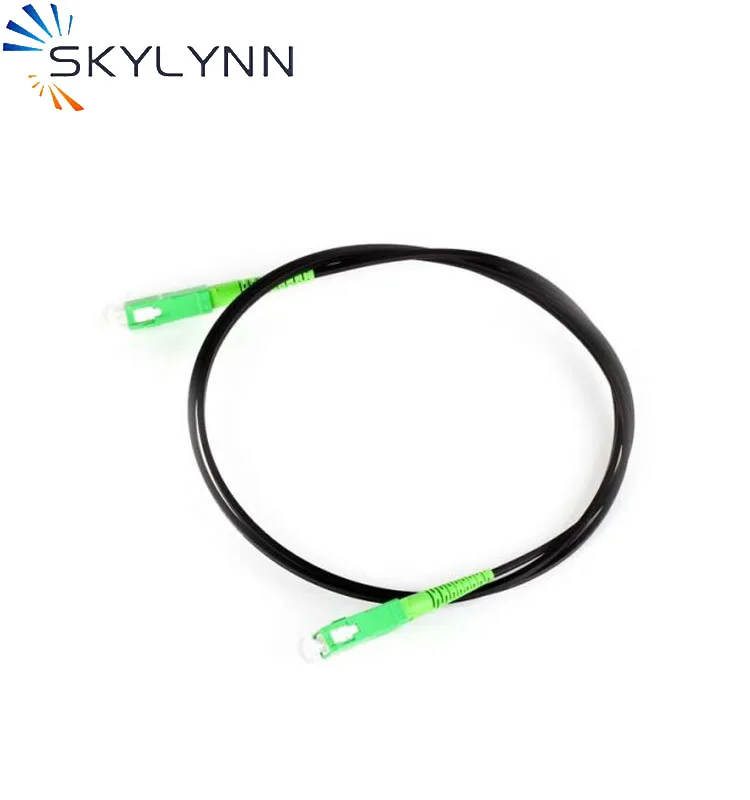

FTTH fiber optic drop cable sc fc lc st waterproof cable outdoor patch cord
FTTH patch cord
Delivery
FOB
Quantity:
- Place of Origin:CN
- Number of Conductors:2
- Brand Name:skylynn
- Model Number:FTTH patch cord
- Application:FTTH FTTB FTTX work
- Fiber brand:Corning, YOFC
- Fiber Type:G652D G657A1 G657A2
- Fiber No:1 , 2 4, 6, 8, 12,16,24
- Fiber color:white black
- Material:PVC, LSZH, PE, TPU
- Number of Conductors::2
- Strengthen member:FRP or Steel 0.4mm/0.45mm/0.5mm
- cable size:2.0*3.0mm
- Product name:skylynn/oem
Product Description
FTTH fiber optic drop cable sc fc lc st waterproof cable outdoor patch cord
Feature
- Suitable for telecommuniction networks
- Type: FC, SC, ST, MU, LC ,MTRJ,MPO,SMA,,DIN
- High durability and reliability
- Low insertion loss and high return loss
- Single mode/multi mode, PC/UPC/APC patch cord and pigtail available
- Single core, 2 cores, 4 cres, 6 cores, 8 cores, 12 cores and multi core patch cord and pigtail available
Specification
- Insertion loss: ≤ 0.3dB
- Return loss:≥55dB
- Durability; ≥1000 times
- Operating temperature; -40~+80°
| Connectors | SC/ST/FC/LC/MTRJ/DIN/MU/D4/SMA | |
| Connector Ferrule | Ceramic | |
| Optical Fiber | SM G657A1 | |
| Cable Jackets | OFNR(Riser),OFNP(Plenum),LSZH(Low Smoking Zero Halogen) | |
| Cable Diameter | 3.0mmx2.0mm(1-6 Fiber) 3.5mmx2.5mm (8 Fiber) | |
| Optical SPec | IL(MAX) | ≤0.3db |
| RL | PC≥45db,UPC≥50db,APC≥60db | |
| Repeatability | ≤0.2db 1000 times mating cycles | |
| Working Temperature | -25°C-- +75°C | |
| Storage Temperature | -45°C-- +85°C | |
