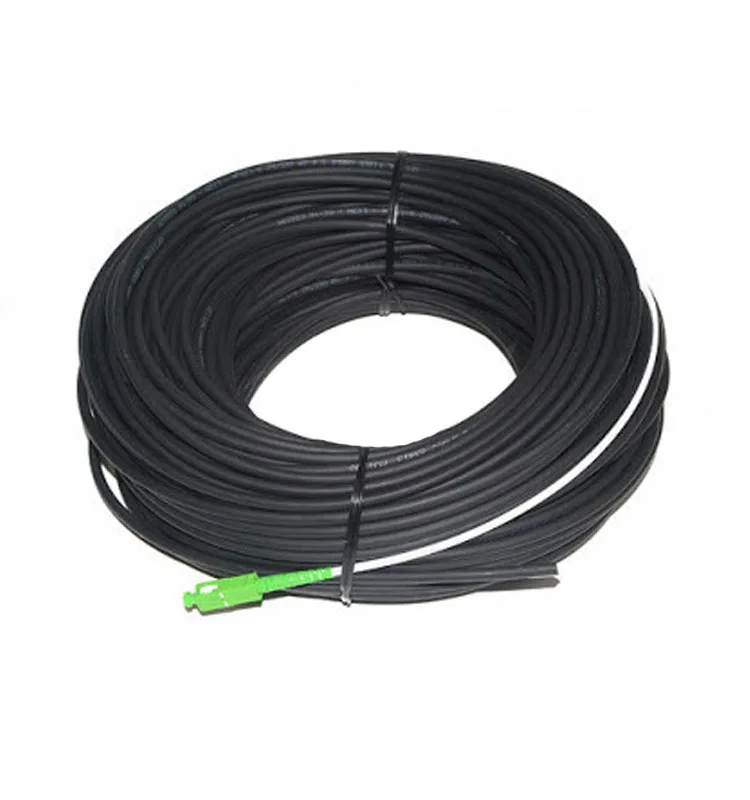

outdoor mini lszh sc drop cable bunch pigtail gjxh gjfxh gjyxfch ftth pigtail

drop cable pigtail

Delivery

FOB

minimum order

10 pieces

Supply Ability

200000pieces / Month

Country of Origin

Shenzhen

Quantity:

Contact Now

Type:FTTx Solutions
Use:FTTH
Place of Origin:CN;GUA
Brand Name:Skylynn
Model Number:drop cable pigtail
No. of Fiber:1-12
Product name:Fiber Optic Drop Cable Pigtail
Application:FTTH System
Certification:CE/ROHS/ISO9001
Color:Black White
Warranty:30 Years
Connector Type:SC FC LC ST
Fiber Type:G652D/G657A
Material:LSZH
Wavelength:1310nm/1490nm/1550nm
Fiber count:1-12 Cores

outdoor mini lszh sc drop cable bunch pigtail gjxh gjfxh gjyxfch ftth pigtail

Product Description

The optical fiber unit is positioned in the center. Two steel wired or FRP are placed at the two sides. A steel wired as the additional strength member is also applied. Then the cable has a black color and white LSZH sheath.

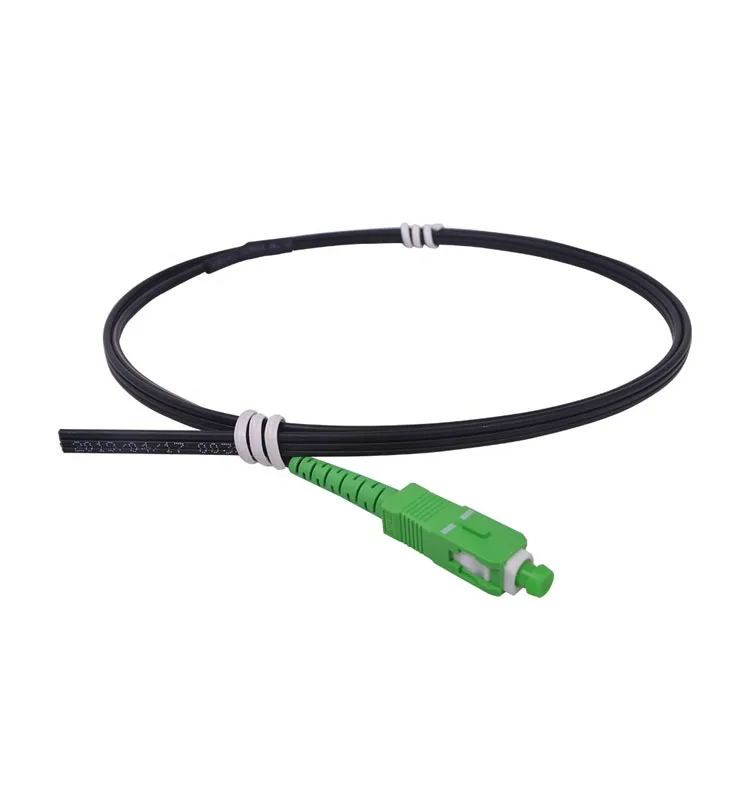

Fiber Optic Pigtail Cable is composed of a fiber optic cable terminated with different connectors on one side.

For the Fiber Patch Cables, there are two major application areas which are computer work station to outlet and fiber optic patch panels or optical cross connect distribution center.

We provide various types of fiber patch cords including single mode, multimode, multi core, and armored versions. You can aslo find fiber optic pigtails and other special patch cables here, even we supply MPO/MTP fiber cables.Our Fiber Patch Cables are standard terminated with LC/SC/ST/FC/MTRJ/MU/SMA connectors on ends.

Application:

CATV

LAN and Access Network

Telecom, Gigabit Data Network

Testing and Medical equipments

Industry and Military applications

Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.2dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥50dB(PC/UPC) ≥60dB(APC)	≥40dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
