anti rodent armored 4f single mode corning os2 12 64 48 yofc submarine fiber optic cable price per meter
- Product name:GYTA33
- Color:Black
- Fiber count:288core
- Material:PE
- Fiber Type:Single mode/Multi Mode
- Certification:ISO9001/CE/RoHS
- Application:Telecommunication
- Appicable Fieds:Sef-support aeria
- Operating temperature:40~+75
- Warranty:30 Years
- Number of Conductors:≥ 10
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:GYTA33
anti rodent armored 4f single mode corning os2 12 64 48 yofc submarine fiber optic cable price per meter

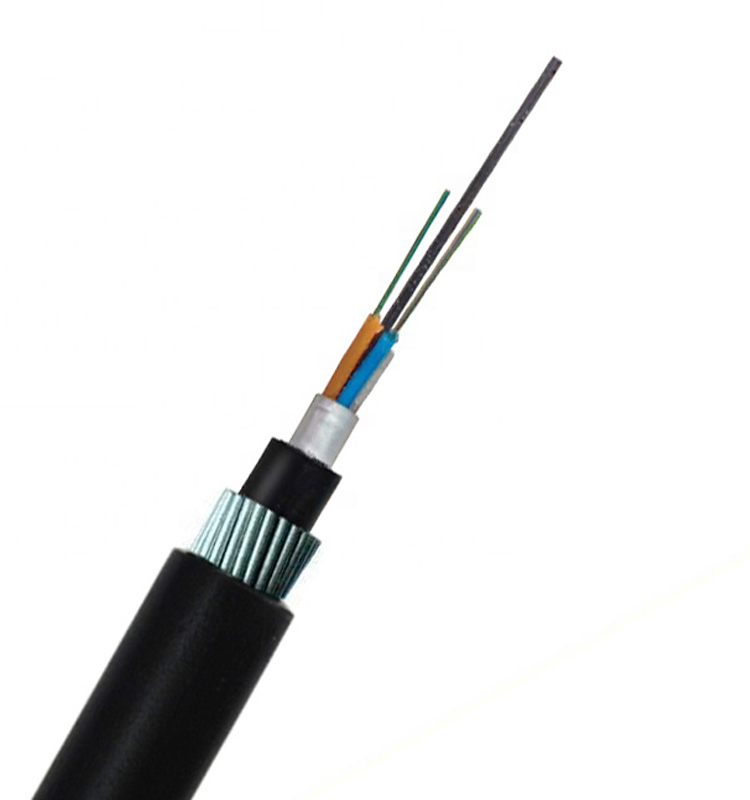

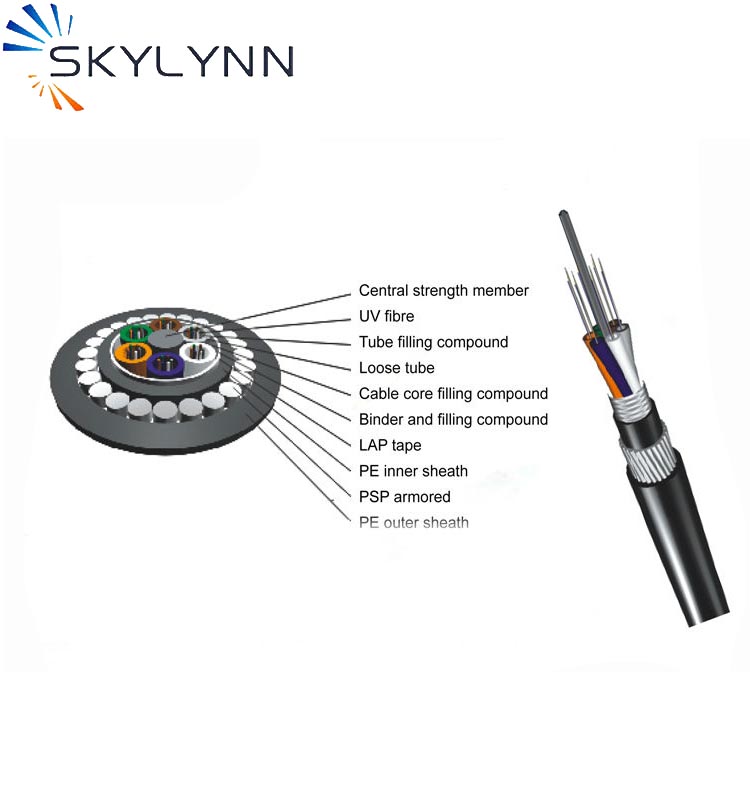

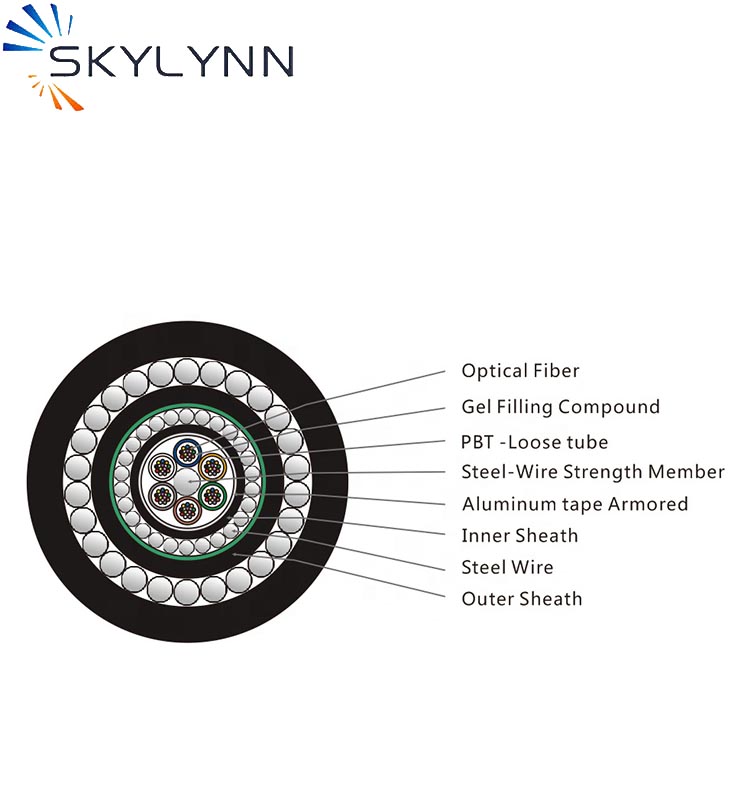

GYTA33 loose tube stranding, metal strengthmember, flooding jelly compound, aluminum-polyethylene adhesive inner sheath round steel wite armoring, PE outer sheath.
Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment;
Excellent mechanical performance;
Good flexibility and bending performance;
Small outer diameter, lightness and compact construction.
Technical Parameters(Typical Value):
| Fiber Count | Structure | Diameter(mm) | Weight(kg/km) | Tensile(N) Long Short | Crush(N) Long Short | Bending Radius(mm) Static Dynamic | |||
| 2-30 | 1+5 | 12.8 | 268 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
| 32-36 | 1+6 | 13.2 | 287 | ||||||
| 38-60 | 1+5 | 13.9 | 318 | ||||||
| 62-72 | 1+6 | 14.2 | 334 | ||||||
| 74-84 | 1+7 | 15.1 | 363 | ||||||
| 86-96 | 1+8 | 15.8 | 387 | ||||||
| 98-108 | 1+9 | 16.6 | 437 | ||||||
| 110-120 | 1+10 | 17.2 | 465 | ||||||
| 122-132 | 1+11 | 18.3 | 503 | ||||||
| 134-144 | 1+12 | 18.4 | 558 | ||||||
| 146-216 | 1+6+12 | 18.9 | 583 | ||||||
| 218-288 | 1+9+15 | 20.5 | 600 | ||||||
Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
