Outdoor Steel Stranded Figure 8 Aerial Armored SM 2 4 6 8 10 12 24 Core GYXTC8A Fiber Optic Cable Gyxtc8s
- Place of Origin:CN;GUA
- Number of Conductors:≥ 10
- Brand Name:skylynn
- Model Number:GYXTC8S
- Fiber range:2-288 core
- Application:Aerial
- diameter detail:3.2x6.5
- Fiber:GYXTC8A
- Jacket:LSZH/PE/PVC
- Storage temperature:20°C
- Bending radius:10D~20D
- Weight:54kg
- Certification:RoHS ISO9001
- Color:Customized
Outdoor Steel Stranded Figure 8 Aerial Armored SM 2 4 6 8 10 12 24 Core GYXTC8A Fiber Optic Cable Gyxtc8s

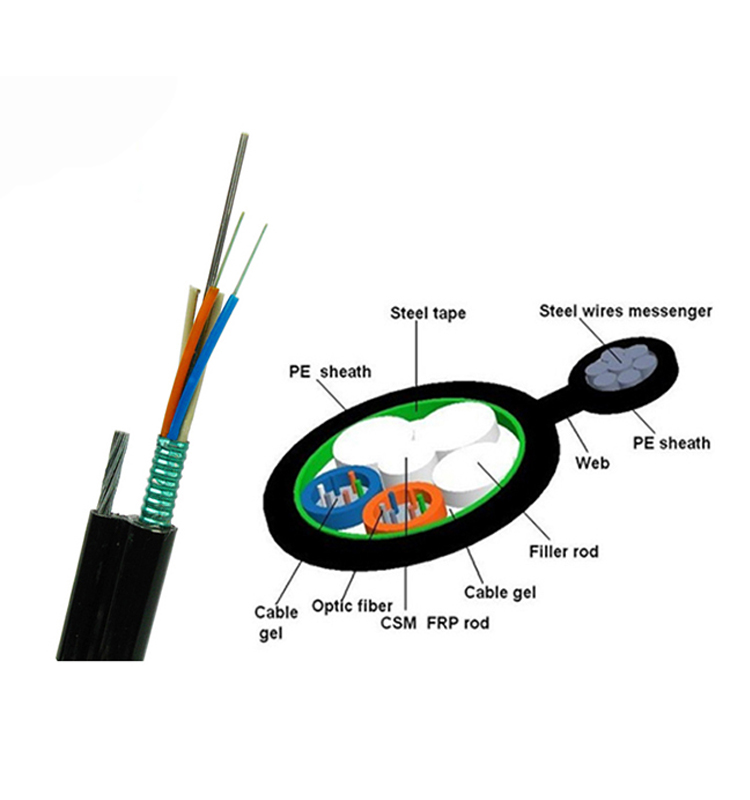

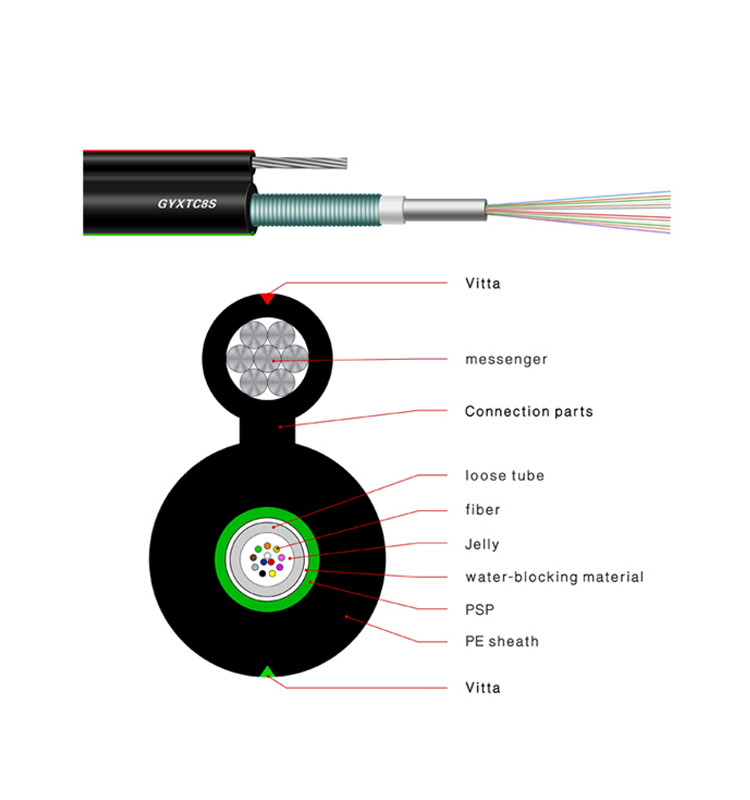

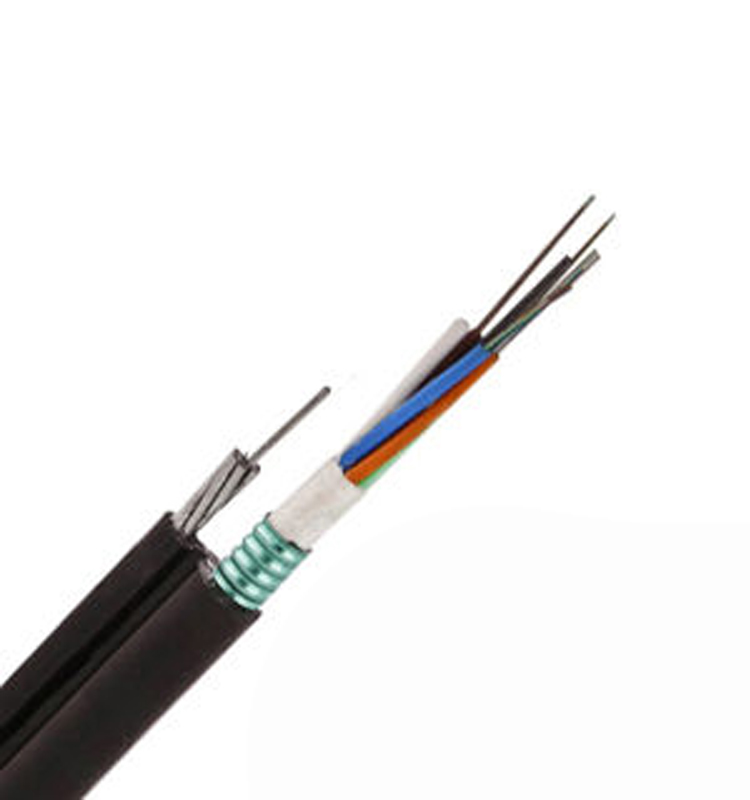

GYXTC8S is a typical outdoor use fiber optic cable for aerial applications; GYXTC8S is also called the figure 8 cable because of its structure looks like the figure 8. We supply single mode and multimode GYXTC8S fiber cables from 2-fiber type to 24-fiber type. GYXTC8A
Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction
Spec:
| Fiber Range | outer diameter | weight | Min bending radius | Alowable tension | Max.crush loading force | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-36 | 10.4 | 90 | 10times cable diameter | 20times cable diameter | 1500 | 600 | 1000 | 300 |
| 38-60 | 11.2 | 105 | ||||||
| 62-72 | 11.7 | 115 | ||||||
| 74-96 | 13.4 | 150 | ||||||
| 98-120 | 15 | 190 | ||||||
| 122-144 | 16.6 | 230 | ||||||
| 146-216 | 16.9 | 240 | ||||||
| 218-240 | 19.3 | 305 | ||||||
| 242-288 | 21.5 | 375 | ||||||

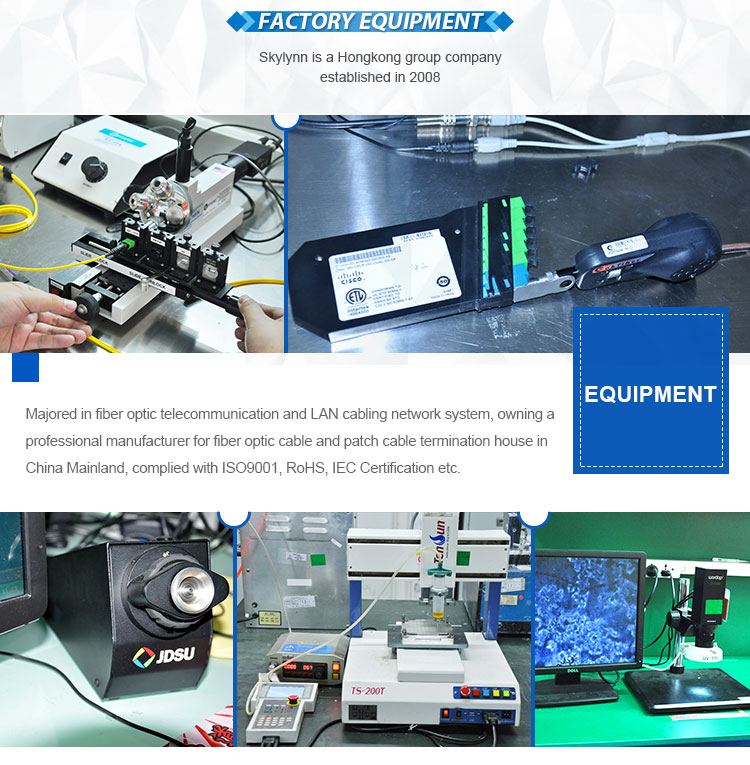

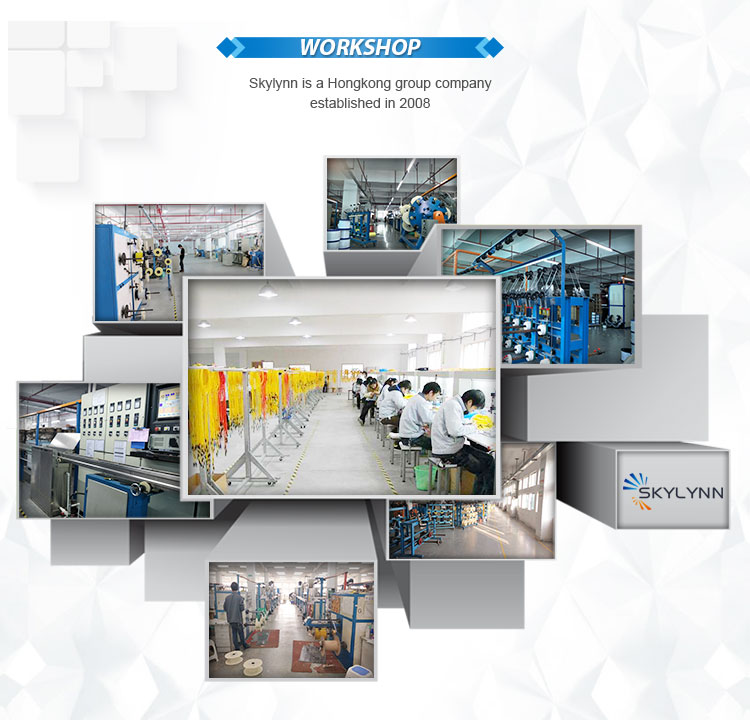

Shenzhen Skylynn Communication Limimted is an industry leader in providing GCS (Generic Cabling System) such as fiber optic products and LAN Cabling system products, engineering expertise and integrated services to the data communications and telecommunication networks industry since 2007. We design, manufacture and install such products that communications providers need to provide high-speed voice, video and data services to their customers. Our extensive experience in both design and application crosses all markets, from Telco, Broadband and Wireless, to Electric Utility, OEM, Enterprise and Private Networks. Nearly 10 years’ experiences in massive production of fiber optical assemblies ensure the reliable stabilities of its high quality and excellent performances of its products. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.

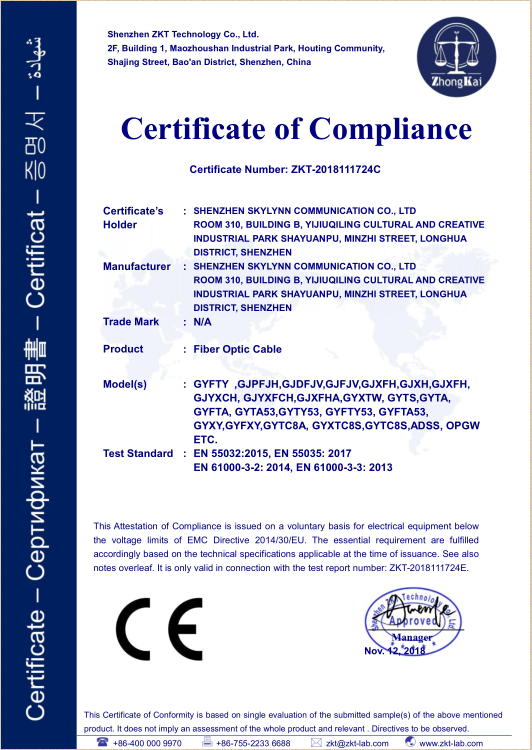

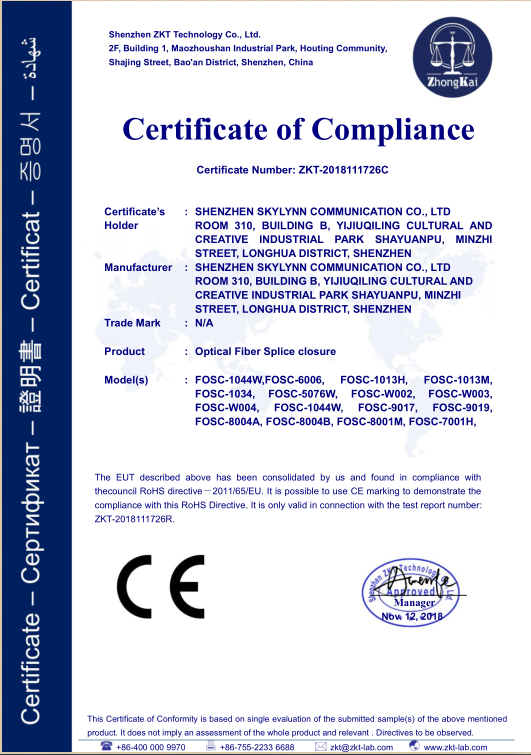

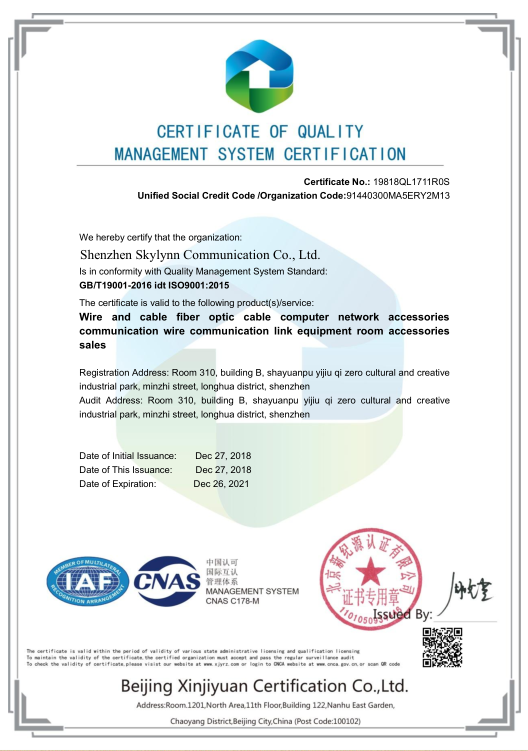

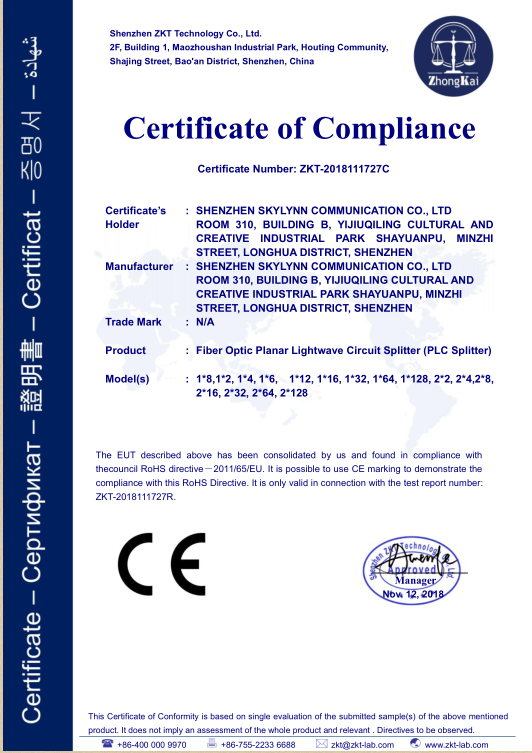

Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
