hybrid underground outdoor optical 4 6 8 12 32 fiber singlemode g.652 multimode 10mm 16 core fiber optic cable
- Type:Fiber Optic Cable
- Multi-Mode Fiber:OM2
- Single-Mode Fiber:G652D
- No. of Fiber:144.
- Use:FTTX
- Place of Origin:CN;GUA
- Brand Name:Skylynn

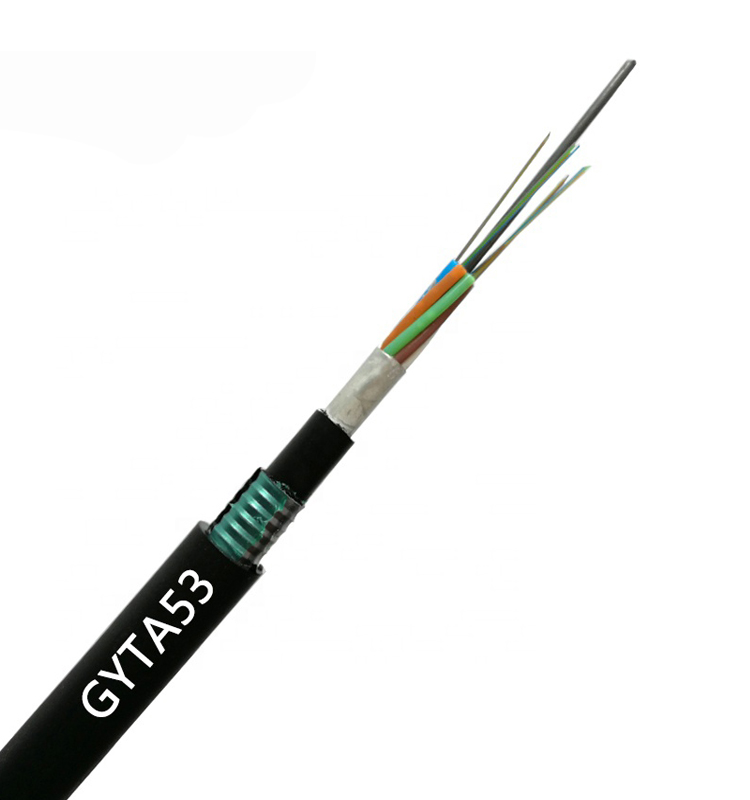

- Model Number:GYTA53

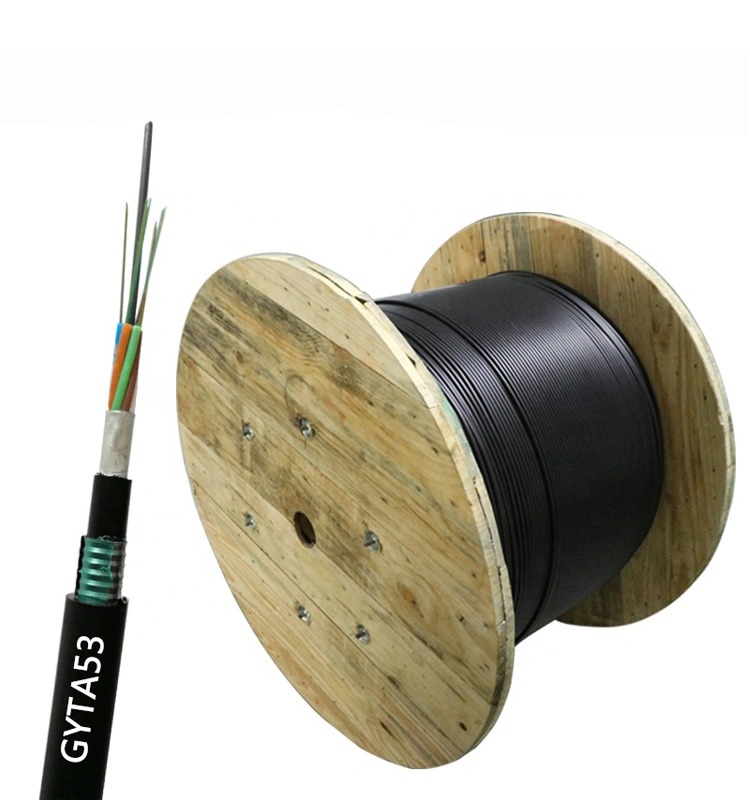

- Product name:GYTA53
- Fiber count range:2-288 core
- Outer diameter (mm):12.6~24.3
- Jacket:PE
- Application:direct burial
- Alowable tension:1000~3000
- Temperature range:-40~+60
- Min.bending radius:12.5 times cable diameter
- Color:Black
- Certification:RoHS ISO9001
hybrid underground outdoor optical fiber singlemode g.652 multimode 10mm 4 6 8 12 32 16 core fiber optic cable

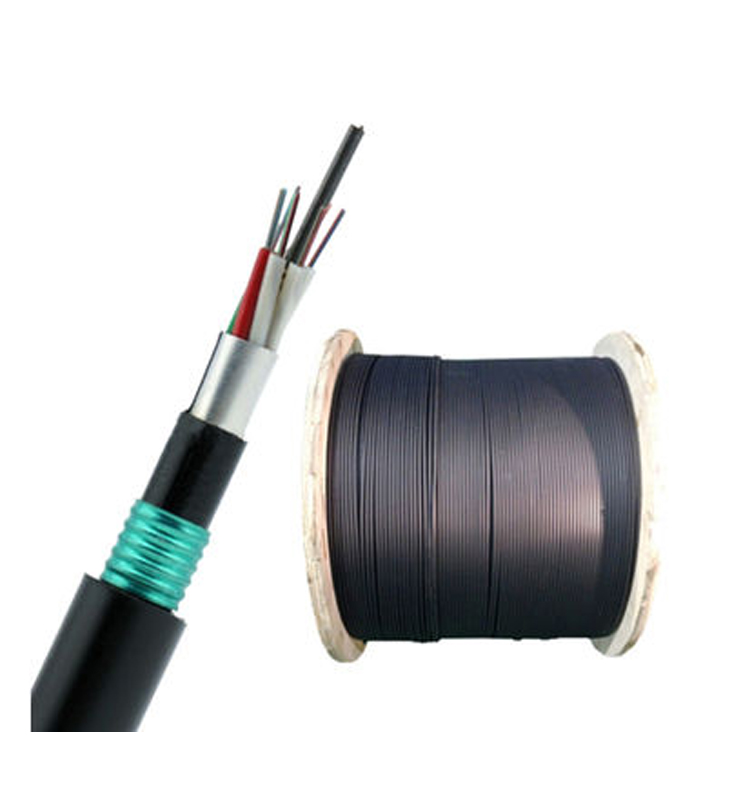

GYTA53 uses metal strength member as central strength member to provide excellent strain performance of the cable. Double- jacket structure provide the cable nice properties of moisture resistance and crush resistance.
Double armor structure provides cable good property of rodent-resistance. A layer of water-blocking material is applied around the cable core to prevent water ingress. It can be used for duct and direct buried application.
Features and Benefits:
• Good mechanical and temperature performance
• Stranded loose tube improves the tensile strength
• Metal strength member provides excellent strain performance
• Double-jacket structure enusres moisture resistance and crush resistance
• Steel tape and aluminum tape enhances water-blocking & moisture-proof performancePE or AT sheath ensures safety of cable in high voltage environment
Application:
• Used for duct and buried laying method
• Adopted to outdoor distribution
• Specially used where good mechanical performance and rodent resistance are expected
Optical Characteristic:
| Parameter | Unit | G.652 | 62.5/125µm | 50/125µm | |||
| Attenuation | dB/km | 1310nm | ≤0.36 | 850nm | ≤3.0 | 850nm | ≤3.0 |
| 1550nm | ≤0.22 | 1310nm | ≤1.0 | 1310nm | ≤1.0 | ||
| Bandwidth | MHz·km | - | - | 850nm | ≥600 | 850nm | ≥200 |
| - | - | 1310nm | ≥1200 | 1310nm | ≥600 | ||
| Numerical Aperture | - | - | - | 0.275±0.015 | 0.200±0.015 | ||
| Cable Cut-off Wavelength | λcc(nm) | ≤1260 | |||||

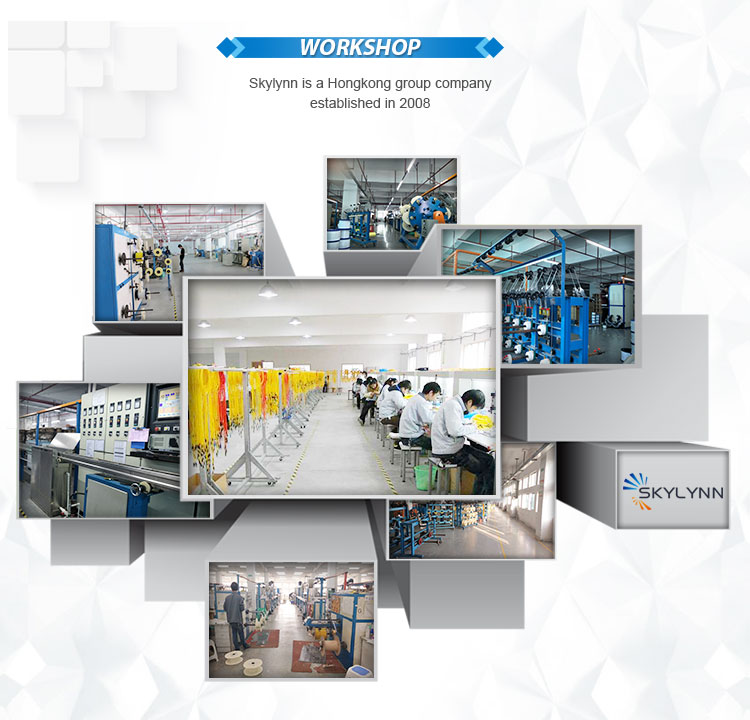

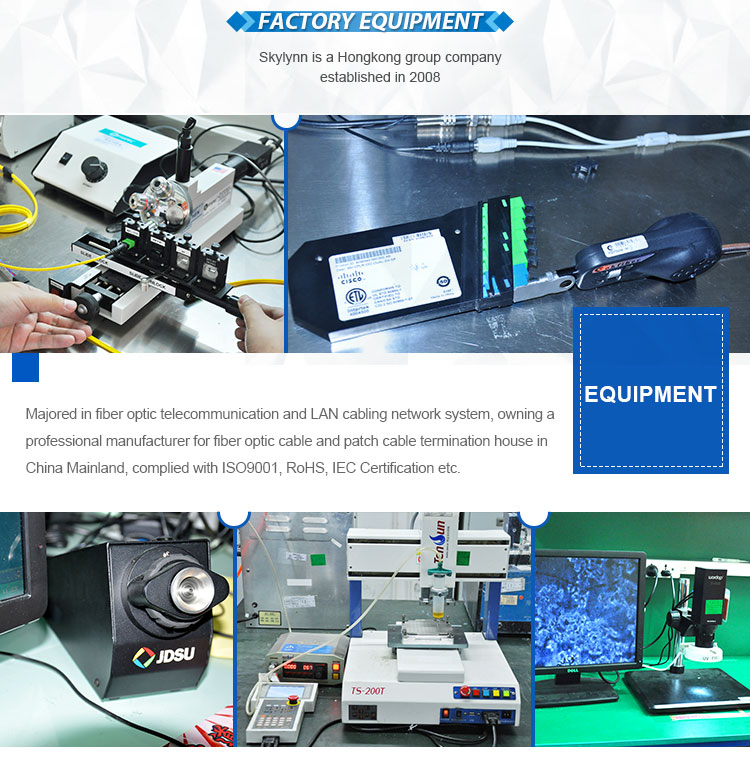

Shenzhen Skylynn Communication Limimted is an industry leader in providing GCS (Generic Cabling System) such as fiber optic products and LAN Cabling system products, engineering expertise and integrated services to the data communications and telecommunication networks industry since 2007. We design, manufacture and install such products that communications providers need to provide high-speed voice, video and data services to their customers. Our extensive experience in both design and application crosses all markets, from Telco, Broadband and Wireless, to Electric Utility, OEM, Enterprise and Private Networks. Nearly 10 years’ experiences in massive production of fiber optical assemblies ensure the reliable stabilities of its high quality and excellent performances of its products. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.

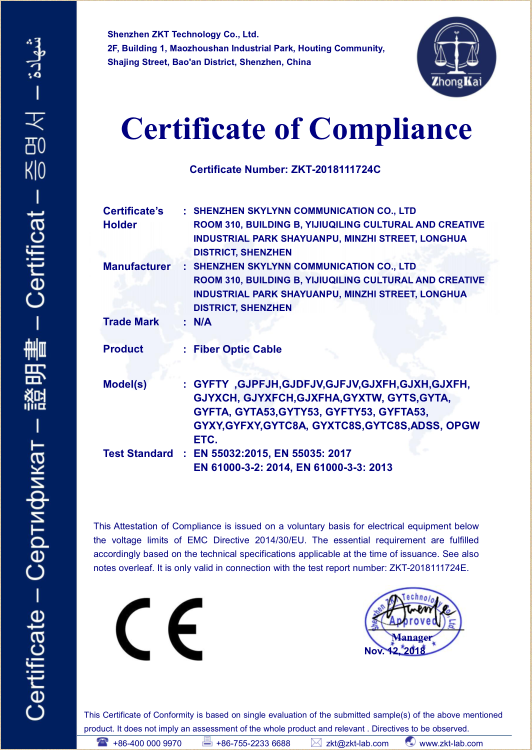

Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
