Outdoor Fibra Optica SM ADSS 1km Price

ADSS

Delivery

FOB

minimum order

2 kilometers

Supply Ability

2000.0kilometers / Month

Country of Origin

Shenzhen

Quantity:

Contact Now

Product name:fiber optical cable 1km price
Dimension::12mm~14.2mm
Application:Duct / Aerial
Jacket Material::PE
Fiber Type:Single mode, Multi Mode
Color:Black
Fiber count:24 core

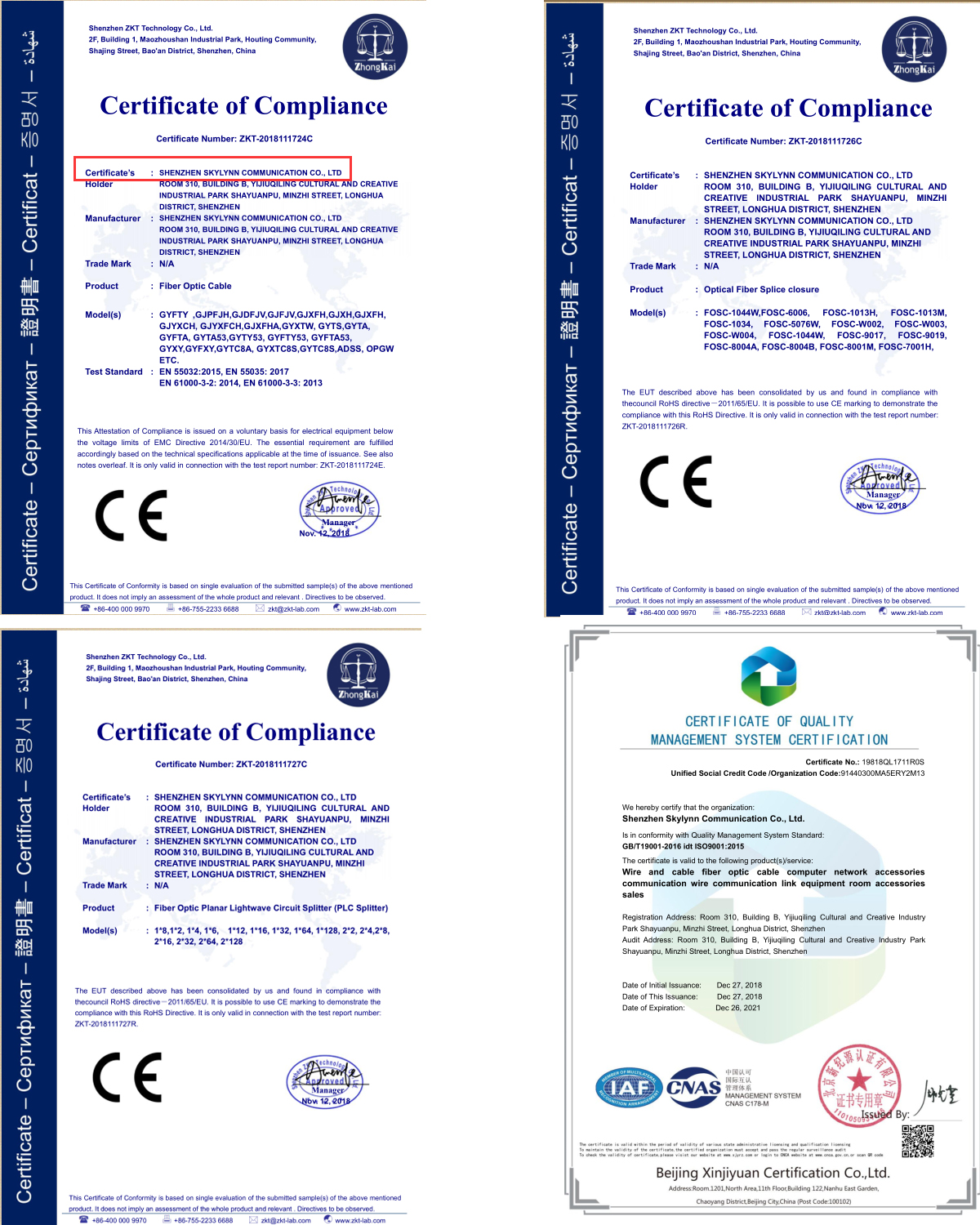

Certification:ISO9001
Type:Coaxial
Jacket:PE
Number of Conductors:≥ 10
Place of Origin:CN;GUA
Brand Name:Skylynn
Model Number:ADSS

Optical Fiber Cable SM 24 48 72 96 144 Core Outdoor Fibra Optica ADSS 1km Price

Product Description

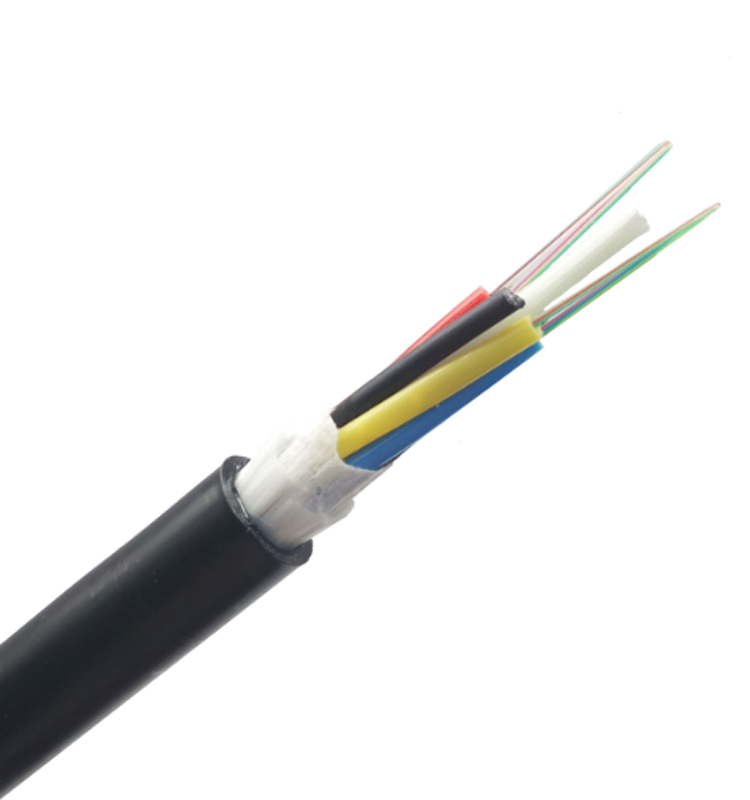

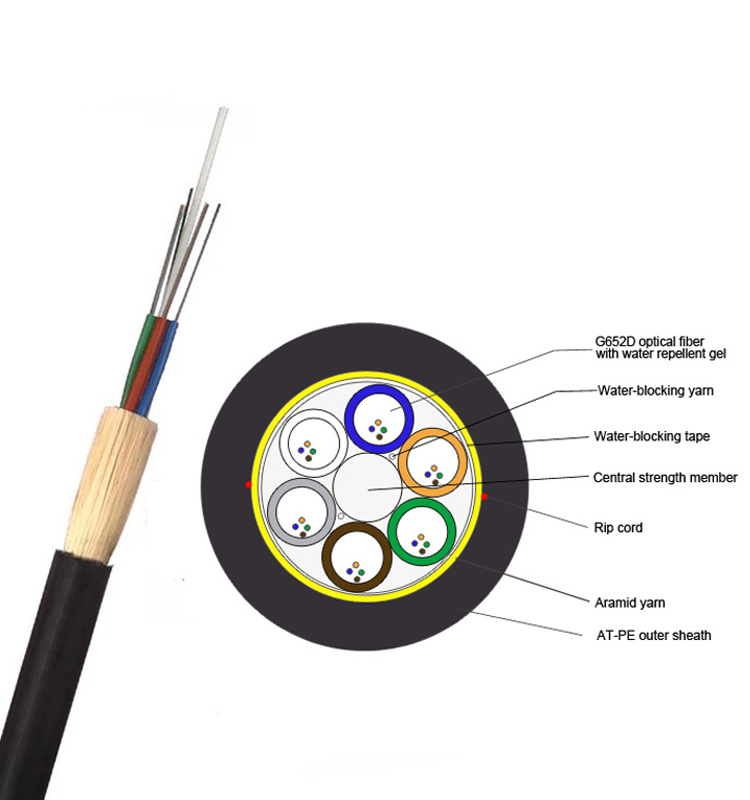

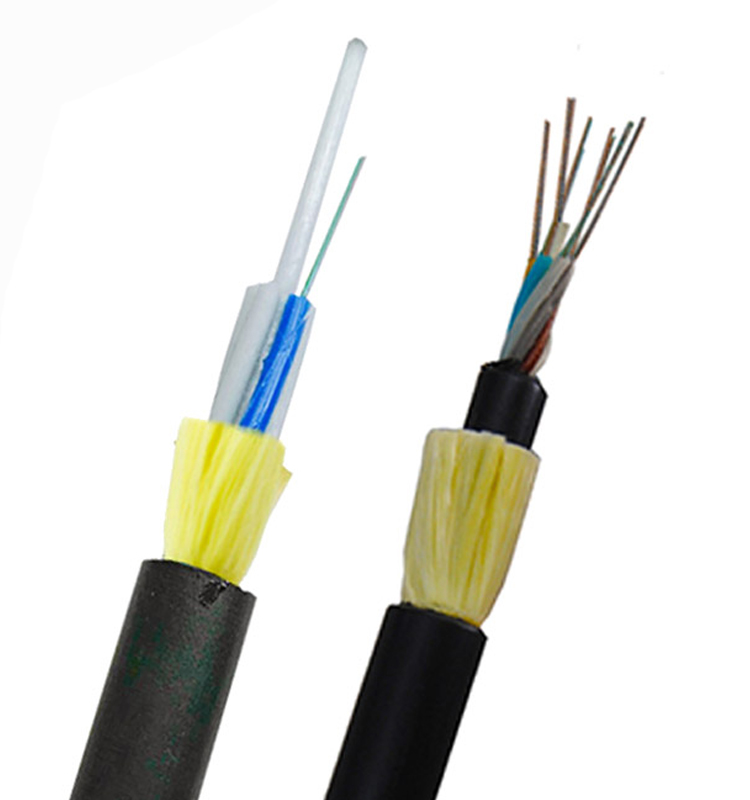

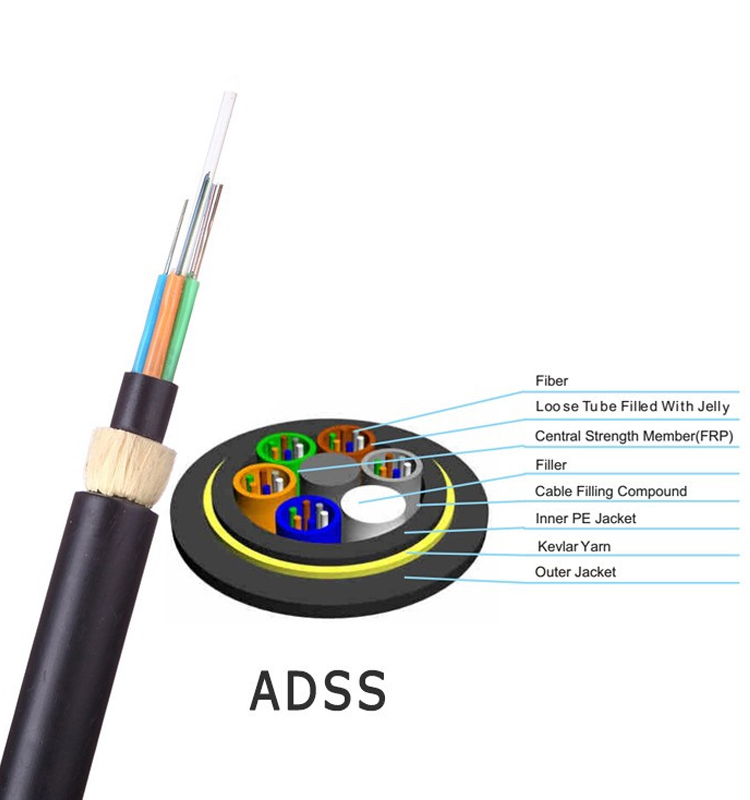

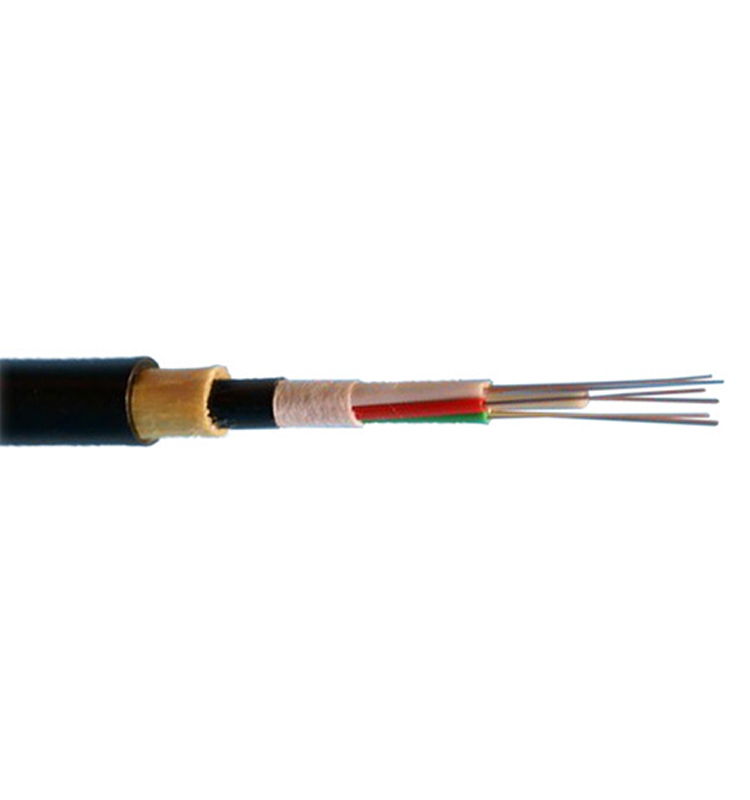

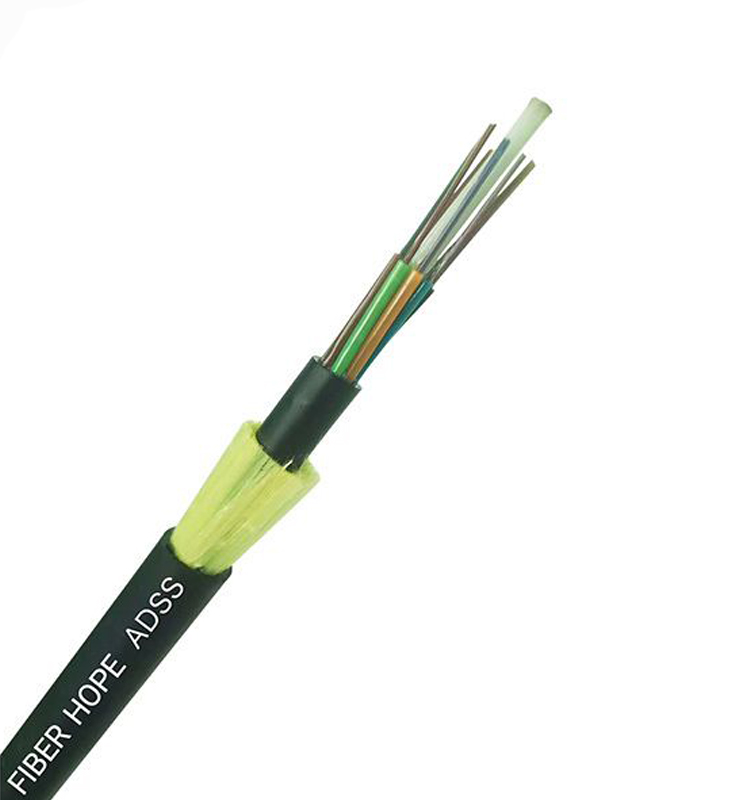

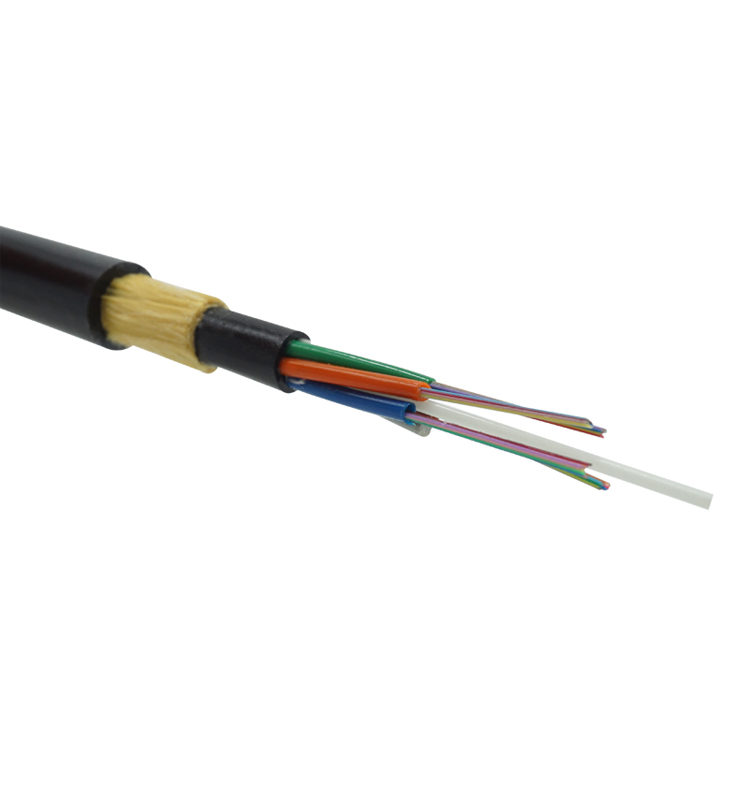

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction

No. of Fibers	2-36	38-72	74-96	98-120	122-144	146-216
Max No. of Fibers/Tube	6	12	12	12	12	12
No. of Tube(+Fillers)	6	6	8	10	12	18(2 layers)
Nominal Diameter	10.7	13.2	13.9	15.4	16.8	17
Cable Weight(kg/km)	89	135	150	185	220	225
Fiber Type	G.652D G.655 G.657 OM1 OM2 OM3 OM4
Max .Allowable Tension	Short Term :3500N Long Term:100N MAT:3.5Kn RTS:9.0Kn Wind Speed: ≤30m/s Ics:0mm
Min.Bend Radius (mm)	Dynamic:20D Static:10D (D: Cable diameter)
Temperature Range	-40°C~+70°C(Transportation& Storage)
	-35°C~+65°C(Installation)
	-40°C~+70°C(Operation)

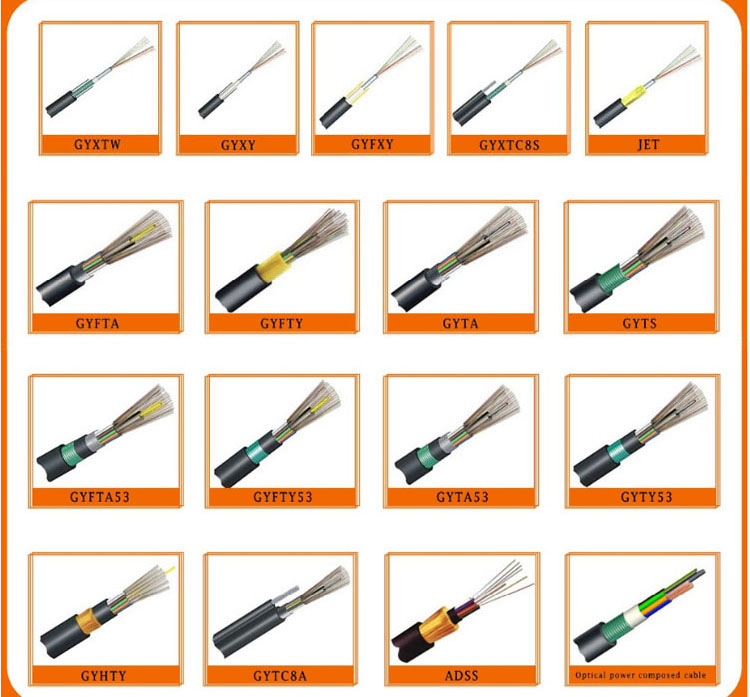

Product Categories (Please click on more information)
