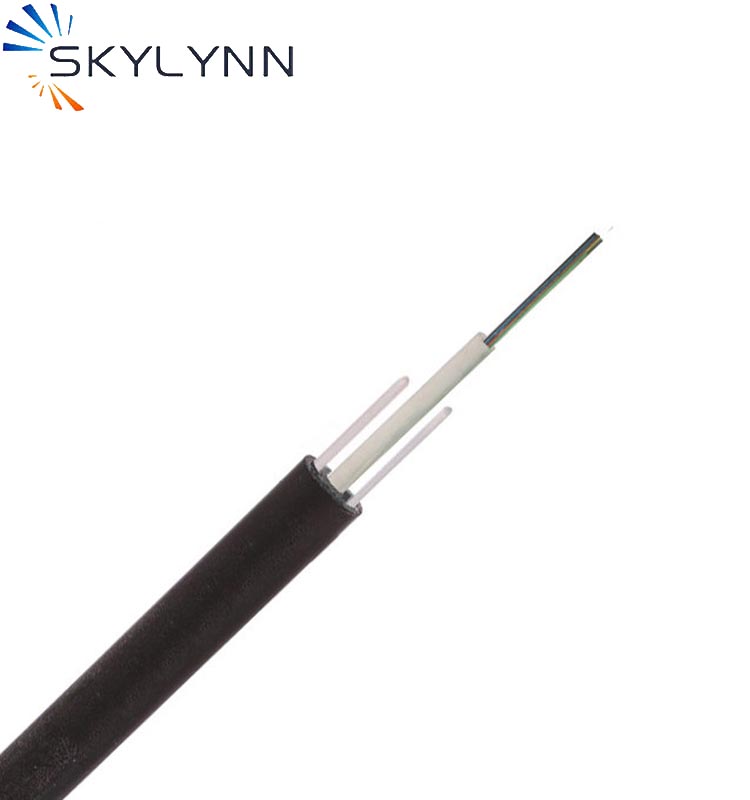

Optical Indoor Outdoor FRP GYFXTY Single mode Fiber Optic Cable
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:GYFXTY
- Product name:Fiber Optic Cable GYFXTY
- Fiber Count:1-48core
- Application:FTTX
- Certification:ISO9001/CE/RoHS
- Jacket Material:PE
- Warranty:20years
- Color:Black
- Cable Type:Central Tube Optical Fiber Cable
- Operating Temperature:-40℃~+70℃
- Loose Tube:PBT
Optical Indoor Outdoor FRP GYFXTY 6 12 24 48 core Single mode Fiber Optic Cable
Application:
-Adopted to indoor and outdoor distribution.
-Suitable for communication equipment serve.

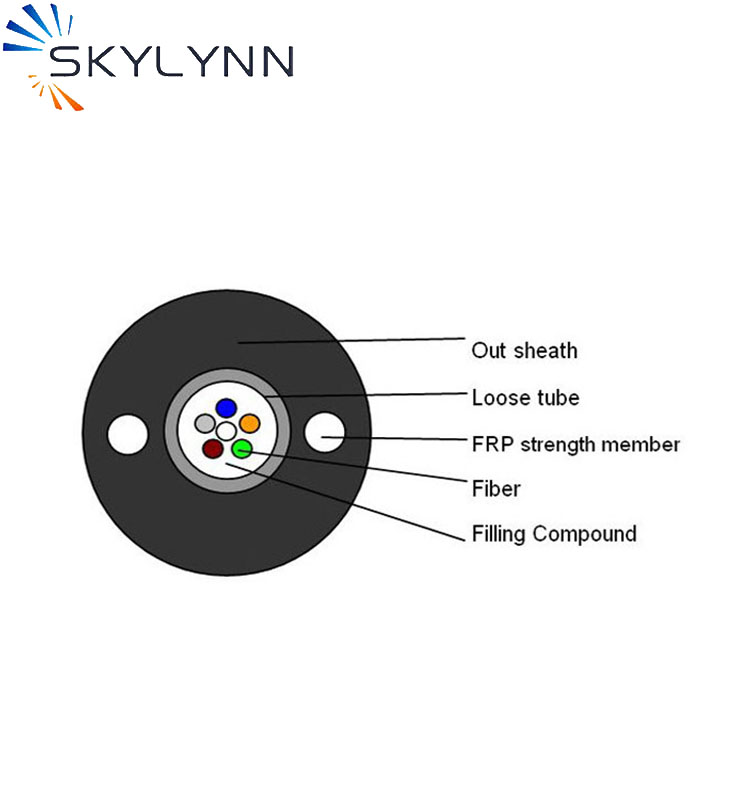

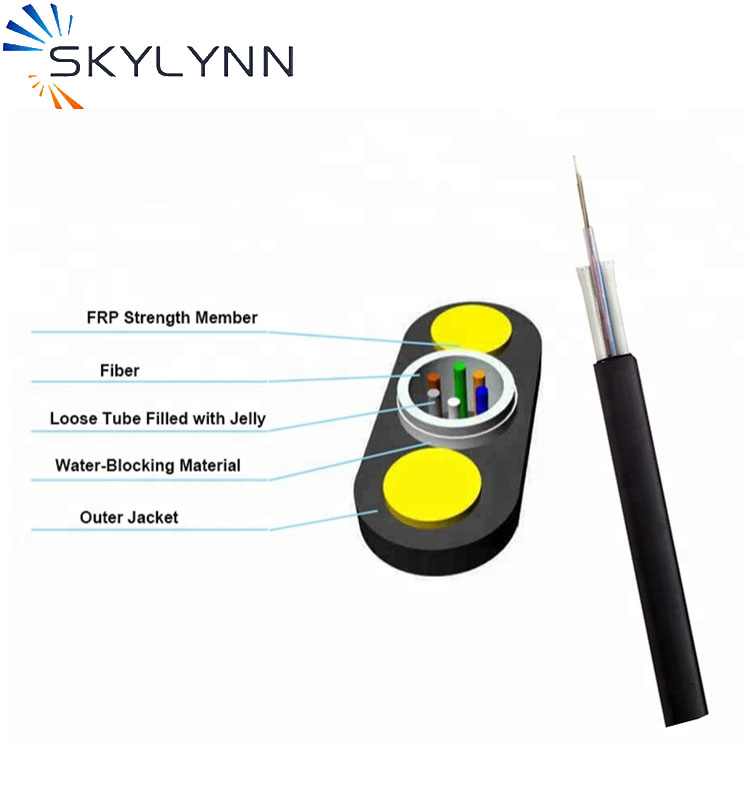

Characteristics:
-Good mechanical and temperature performance.
· High strength loose tube that is hydrolysis resistant.
· Special tube filling compound ensure a critical protection of fiber.
· FRP ensure tensile strength.
· Small diameter, light weight and friendly installation.
Technical Data:
| Fiber count | Cable outer dia(mm) | Cable weight(kg/km) | Min.bending radius(mm) | Permissible tensile force(N) | Permissible pressure force(N/100mm) | |||
| Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
| 2-12 | 8 | 70 | 10D | 20D | 1500 | 600 | 1000 | 600 |
| 14-24 | 8.7 | 81 | 10D | 20D | 1500 | 600 | 1000 | 600 |
| 26-36 | 9.4 | 95 | 10D | 20D | 1500 | 600 | 1000 | 600 |
| 38-48 | 10 | 106 | 10D | 20D | 1500 | 600 | 1000 | 600 |

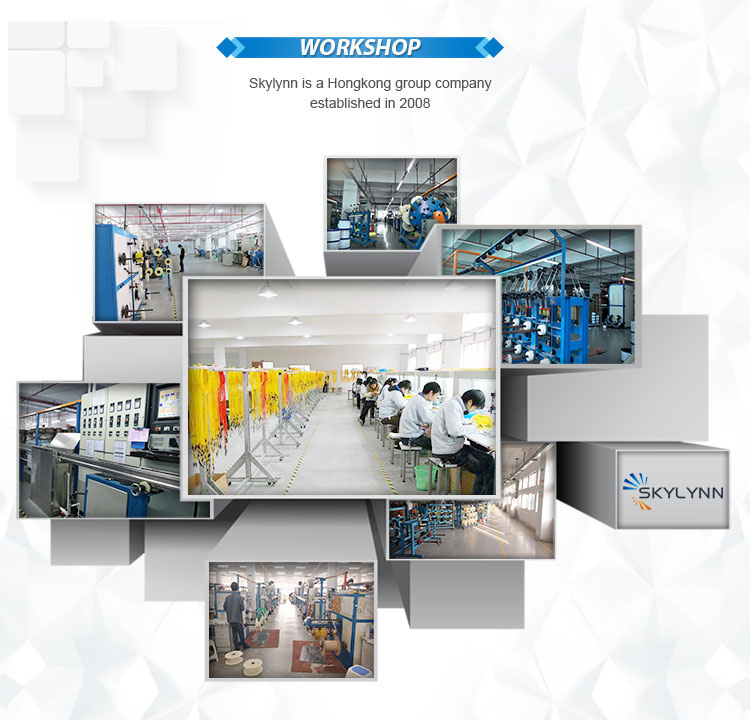

Shenzhen Skylynn Communication Limimted is an industry leader in providing GCS (Generic Cabling System) such as fiber optic products and LAN Cabling system products, engineering expertise and integrated services to the data communications and telecommunication networks industry since 2007. We design, manufacture and install such products that communications providers need to provide high-speed voice, video and data services to their customers. Our extensive experience in both design and application crosses all markets, from Telco, Broadband and Wireless, to Electric Utility, OEM, Enterprise and Private Networks. Nearly 10 years’ experiences in massive production of fiber optical assemblies ensure the reliable stabilities of its high quality and excellent performances of its products. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.

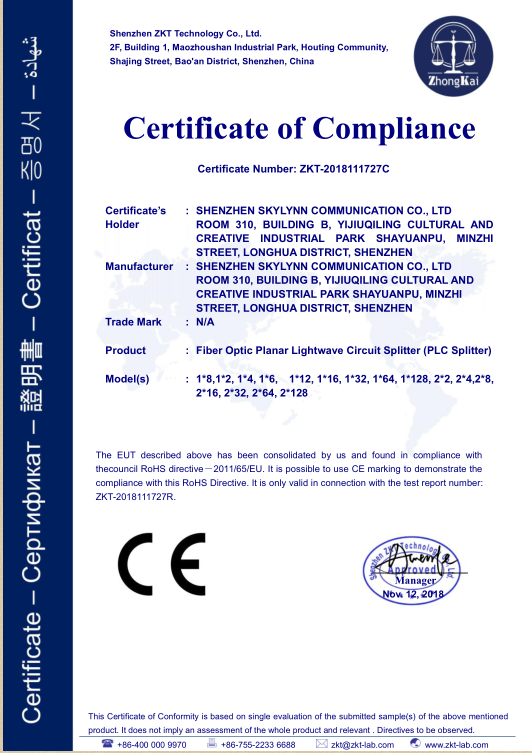

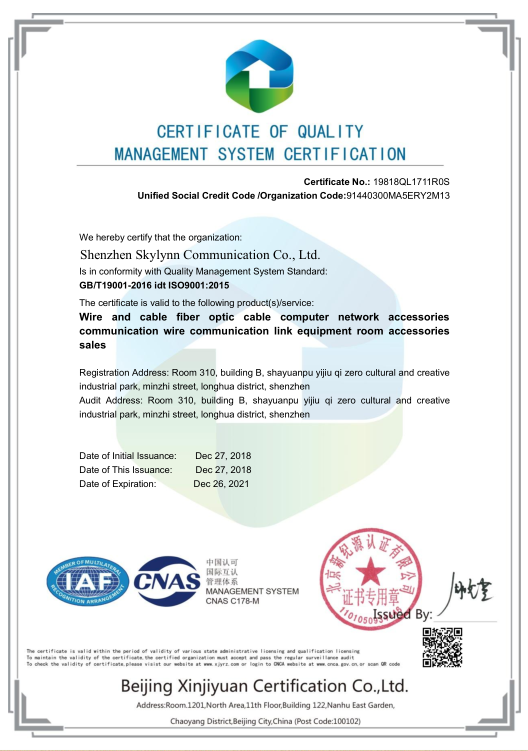

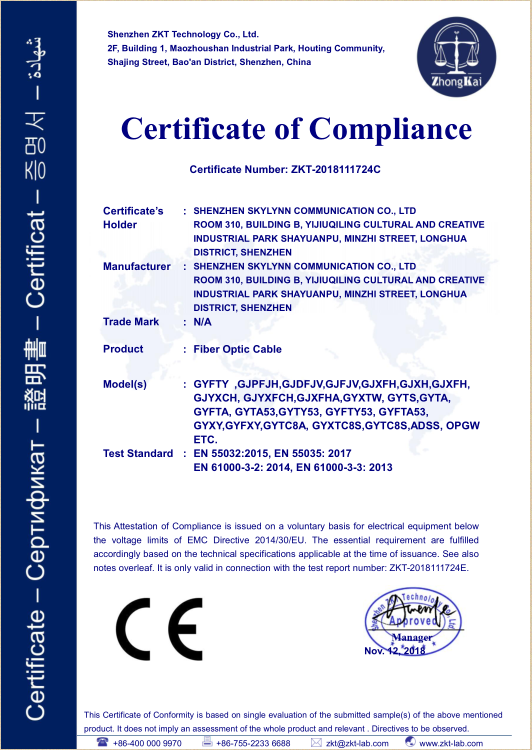

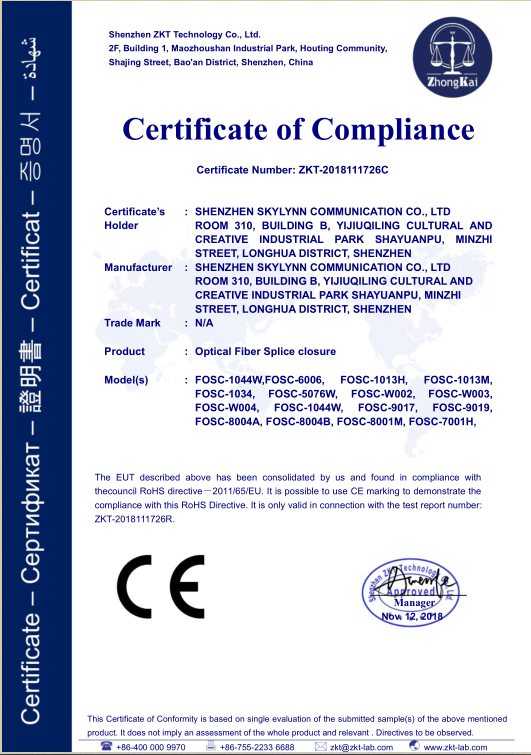

Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
