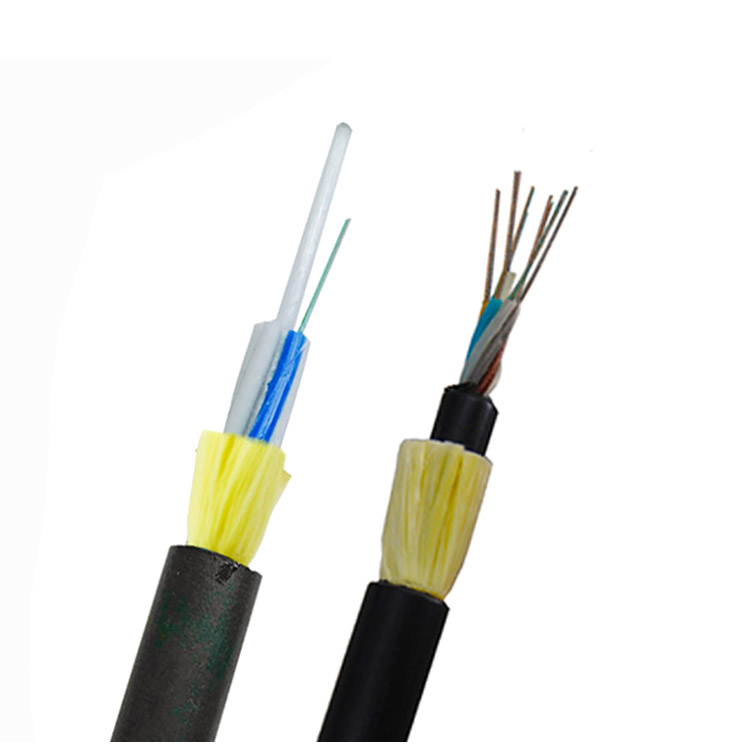

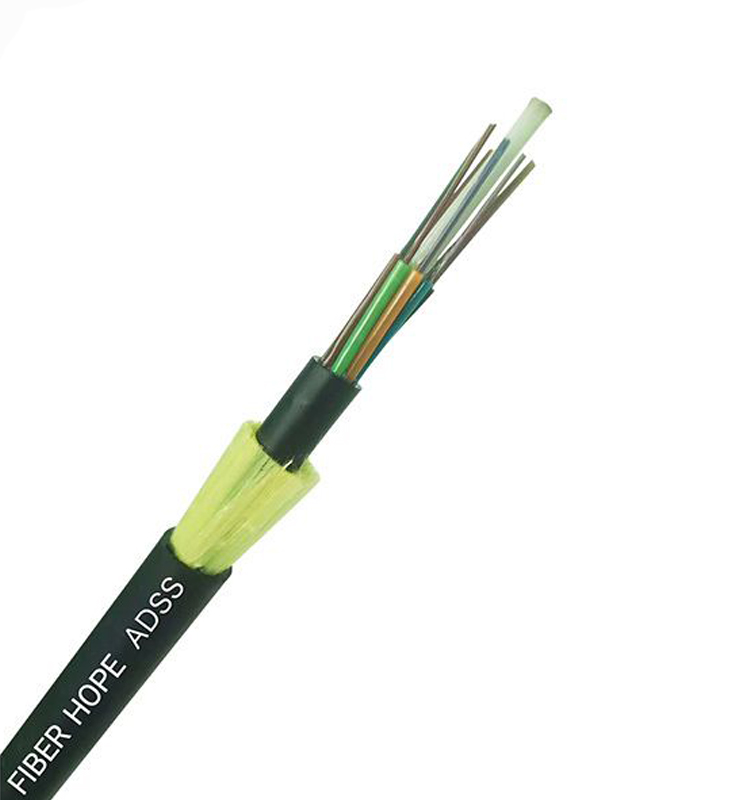

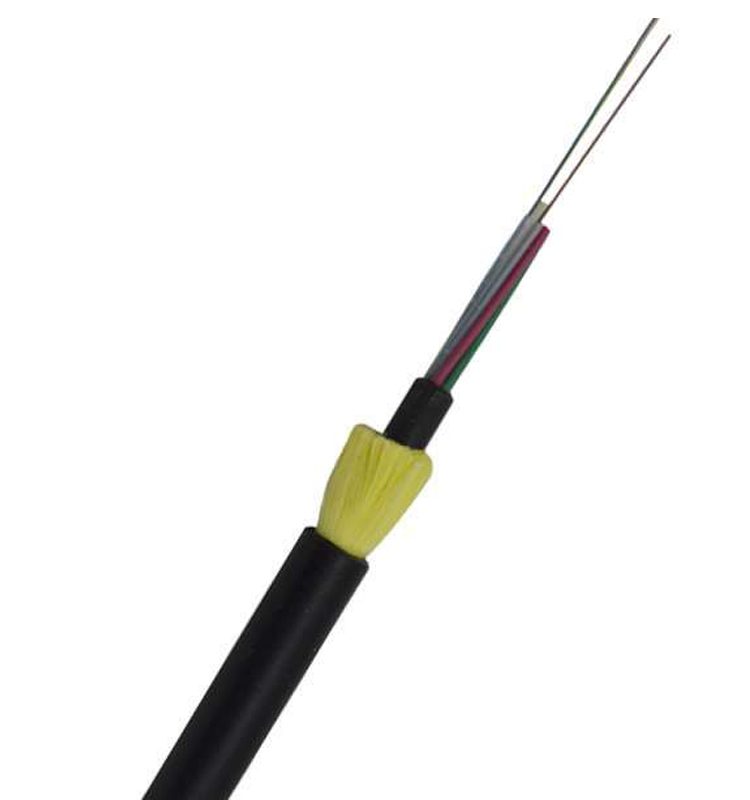

Cable Fiber Optic ADSS Outdoor Single Mode 4 Core Fiber Cable
- Product name:ADSS Fiber Optic Cable
- Fiber Count:96 Core
- Color:Black
- Application:FTTH FTTB FTTX Network
- Jacket Material:PE
- Certification:ISO9001
- Fiber Type:Single mode, Multi Mode
- Weight:115kg~470kg
- Dimension:12mm~14.2mm
- Range Temterature:-40~+60℃
- Number of Conductors:≥ 10
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:ADSS Cable
Cable Fiber Optic ADSS Outdoor Single Mode 4 Core Fiber Cable

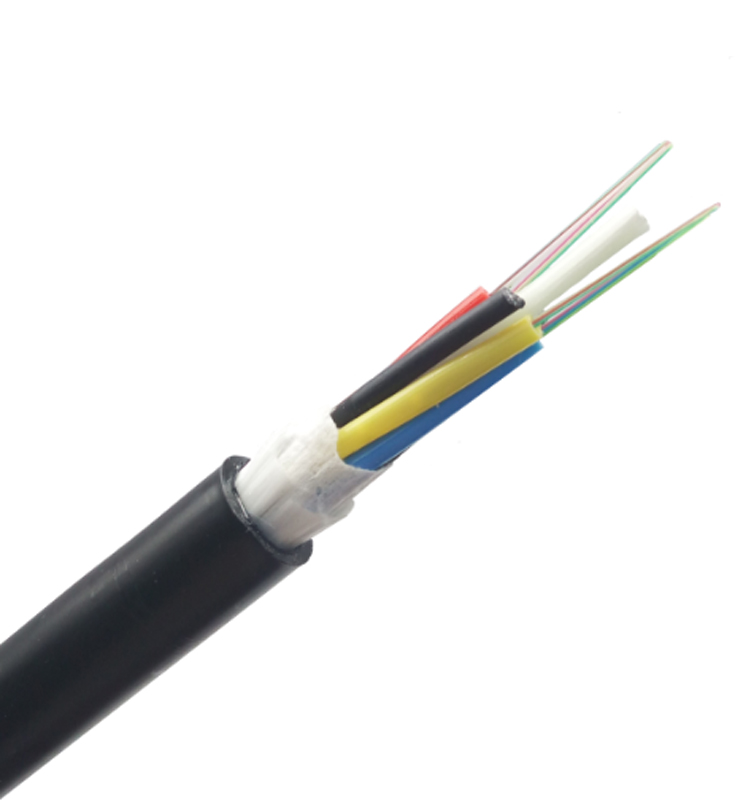

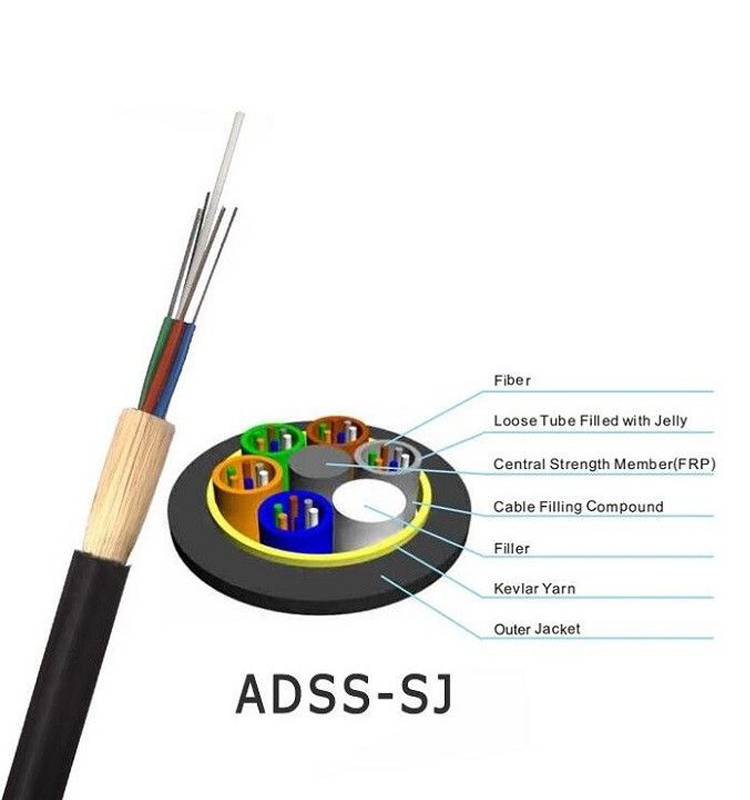

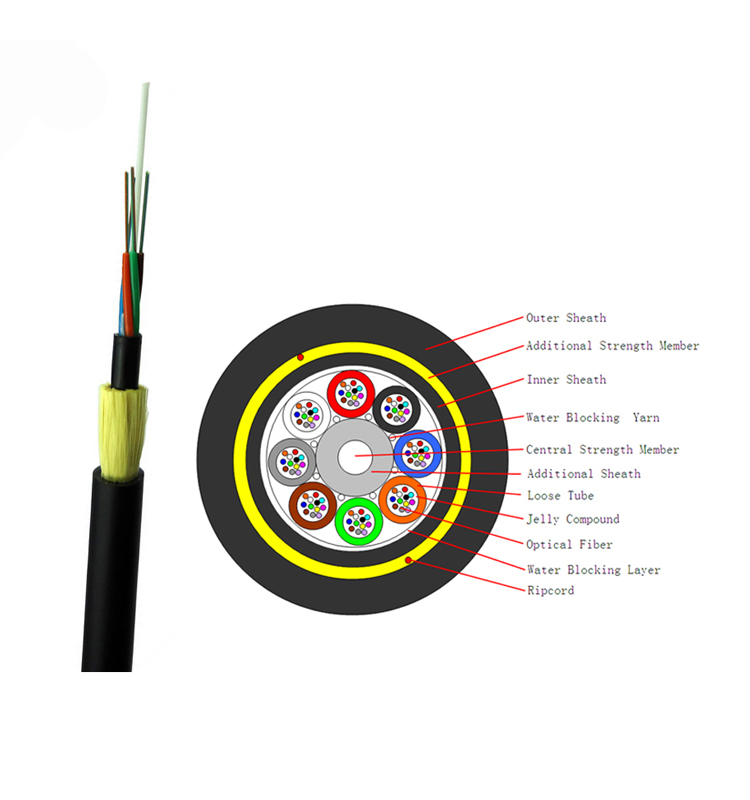

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.
Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction
Appicable fieds:
Long-distance teecom,LAN in high -votage area or access to telecom network
Installation: Sef-support aeria
Structure Characters:
Loose tube wifh mon-metalic strengthen member
High flexible amaid yarn
Can work at electrix field≤25KV/min a ling period
Temperature Characteristics:
Operate temperature range: -40o C to +60 o C
Storage temperature range: -40 o C to +60 o C
Max.allow working tension (KN) | Break strength (KN) | working tensile (KN) | Diameter (mm) | temperature (oC) |
| 2.5 | 6.25 | 1.56 | 12 | -40 ~ +60 |
| 3.5 | 8.75 | 2.19 | 12.2 | |
| 4.5 | 11.25 | 2.81 | 12.3 | |
| 6 | 15 | 3.75 | 12.5 | |
| 7 | 17.5 | 4.38 | 12.7 | |
| 8 | 20 | 5 | 12.8 | |
| 9 | 22.5 | 5.63 | 12.9 | |
| 10 | 25 | 6.25 | 13 | |
| 11 | 27.5 | 6.88 | 13.1 | |
| 12 | 30 | 7.5 | 13.2 | |
| 14 | 35 | 8.75 | 13.5 | |
| 16 | 40 | 10 | 13.7 | |
| 18 | 45 | 11.25 | 14 | |
| 20 | 50 | 12.5 | 14.2 |

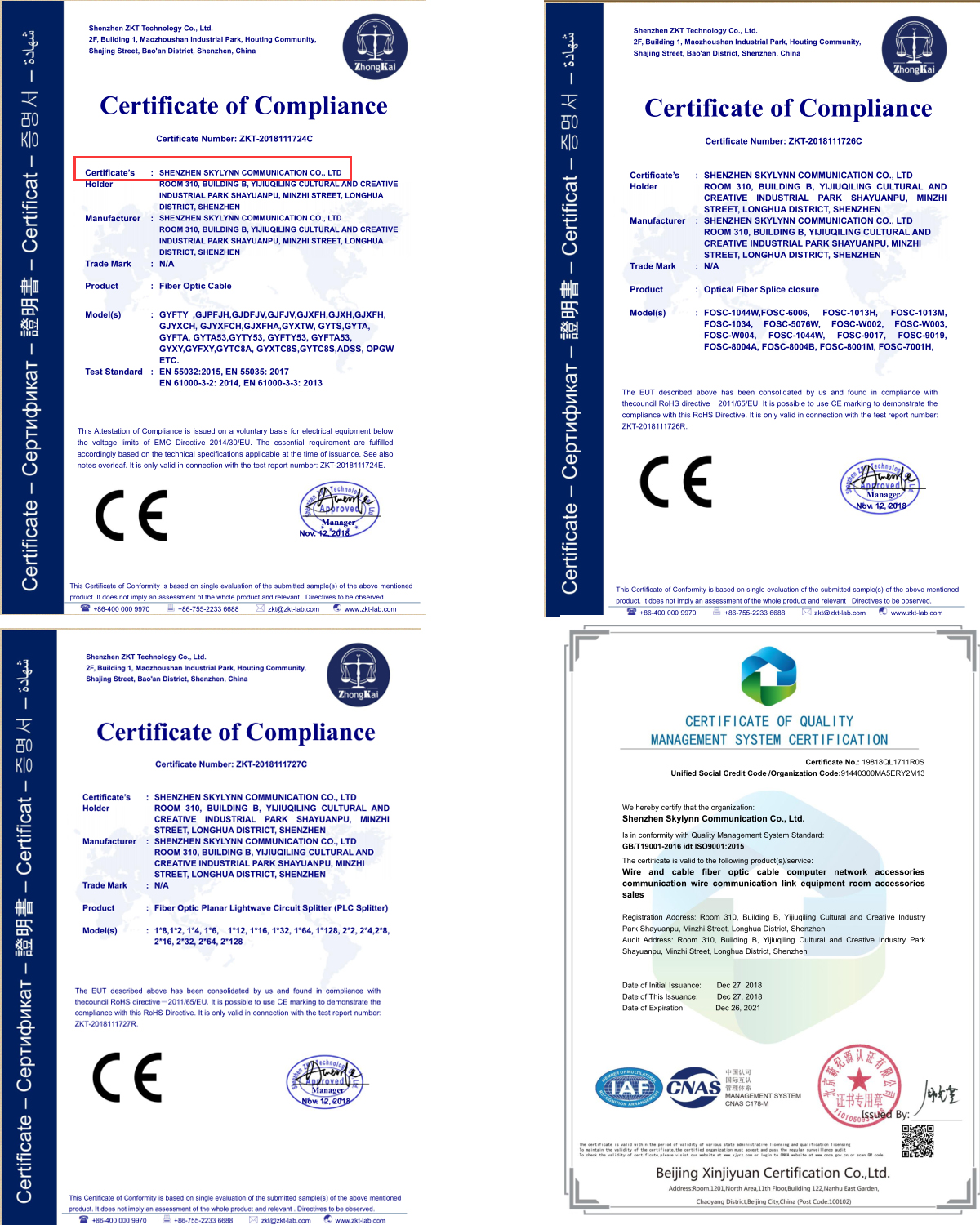

Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
