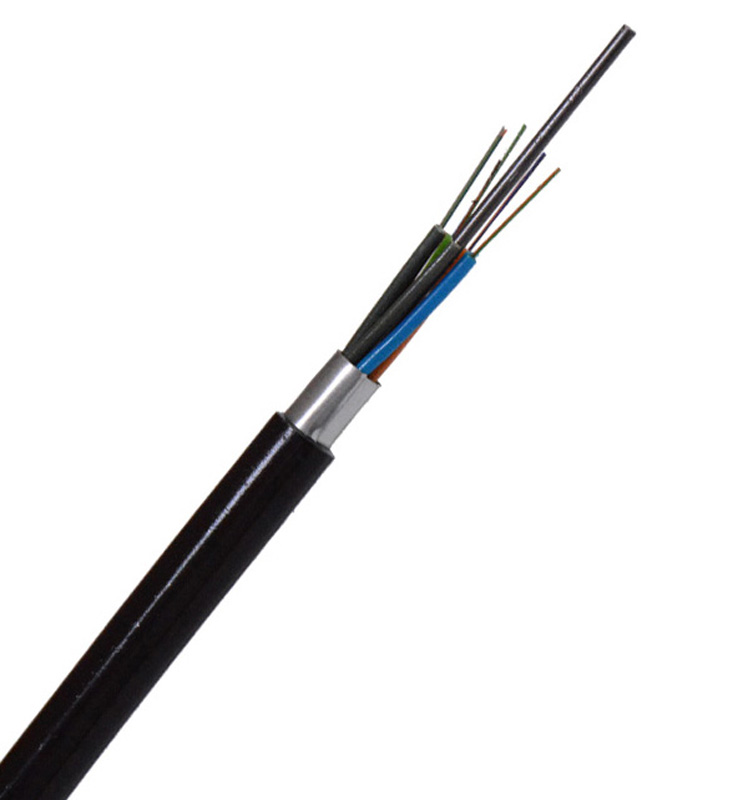

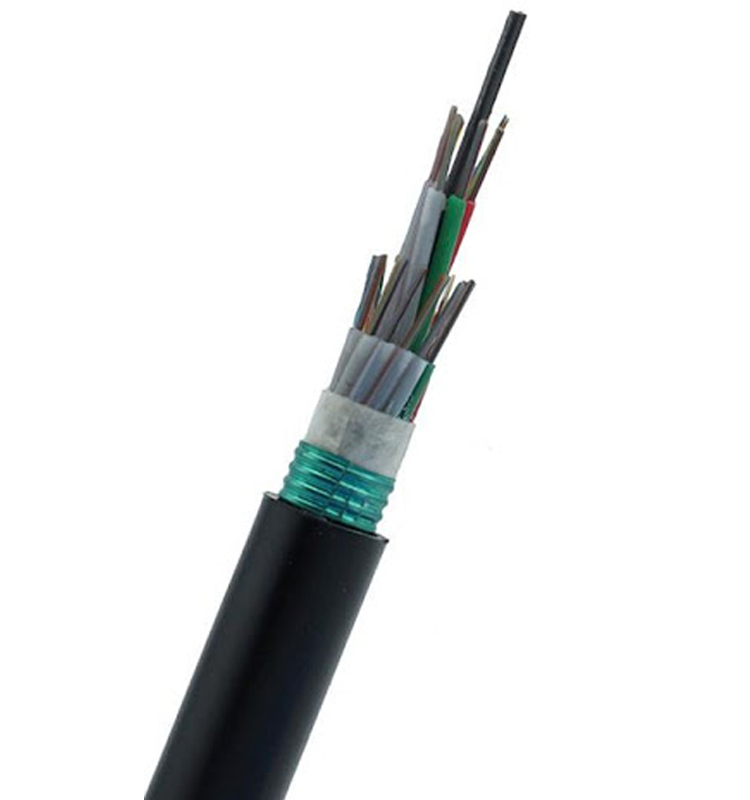

Cheap Price GYTS 24 core Single mode Outdoor Duct Armored Fiber Optic Cable
- Product name:fiber optic cable
- Application:Direct Buried
- Material:PE
- Fiber Type:SM/MM/OM3/OM4
- Color:Black
- Fiber count:288 core
- Cable type:GYTS
- Certification:CE RoHS
- Range Temterature:-30~+70℃
- Diameter:9.8mm~22mm
- Number of Conductors:≥ 10
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:GYTS/GYTA
Cheap Price GYTS 24 core Single mode Outdoor Duct Armored Fiber Optic Cable

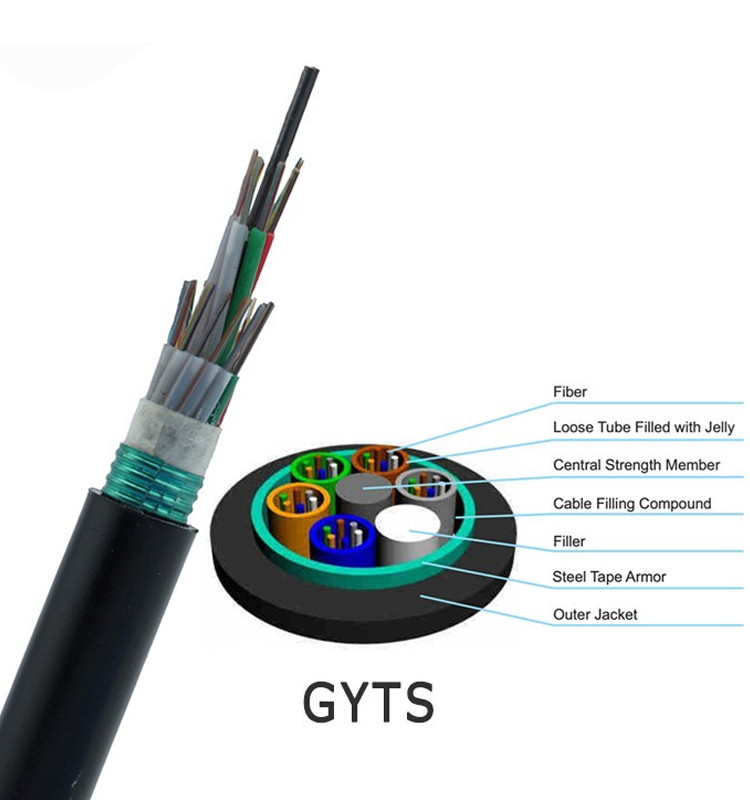

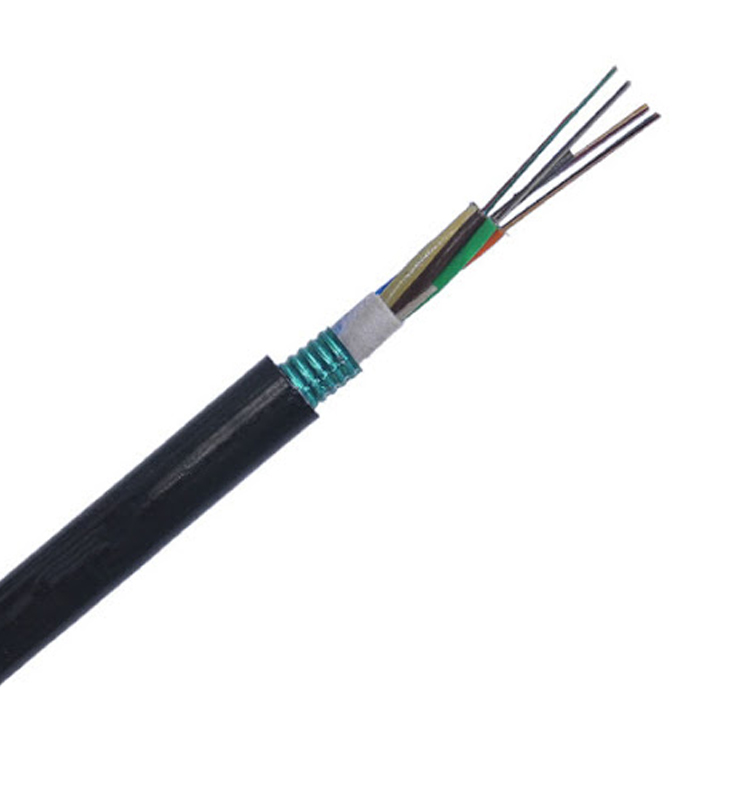

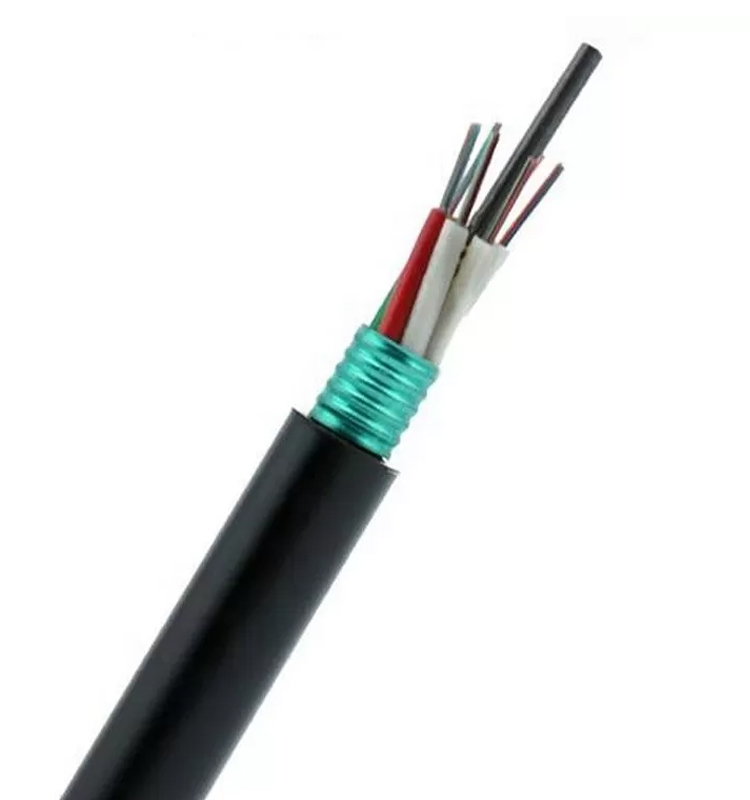

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Features:
Choice of Fibre Type
Colour code of Fibre
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance
Appicable fieds:
Aerial, Duct
Structure Characters:

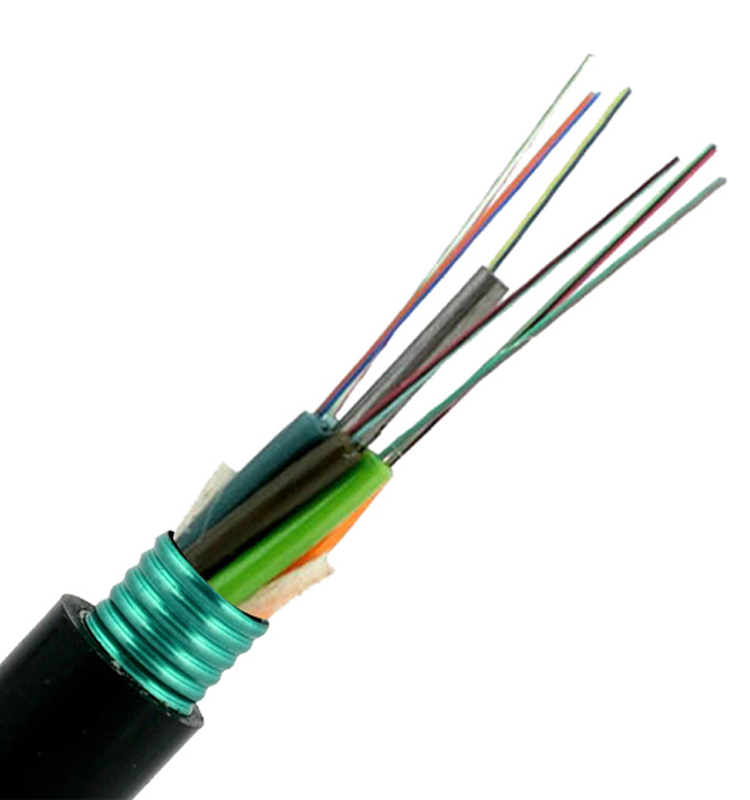

Metalic strengthen member(phosphated steel wire)
Double coated PE Crrugated steel tape under PE sheath
| Fiber Range | Diameter | Cable Weight | Static | Dynamic | Alowable Tension(Short) | Alowable Tension(Long) | Max.Crush Loading Force(Short) | Max.Crush Loading Force(Long) |
| 2-30 | 9.8 | 95 | 10times cable diameter | 20times cable diameter | 1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 | ||||||
| 38-60 | 10.7 | 115 | ||||||
| 62-72 | 11.3 | 140 | ||||||
| 74-96 | 12.9 | 175 | ||||||
| 98-120 | 14.4 | 210 | ||||||
| 122-144 | 15.8 | 245 | ||||||
| 146-216 | 16.3 | 260 | ||||||
| 218-288 | 21.7 | 415 |
Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
