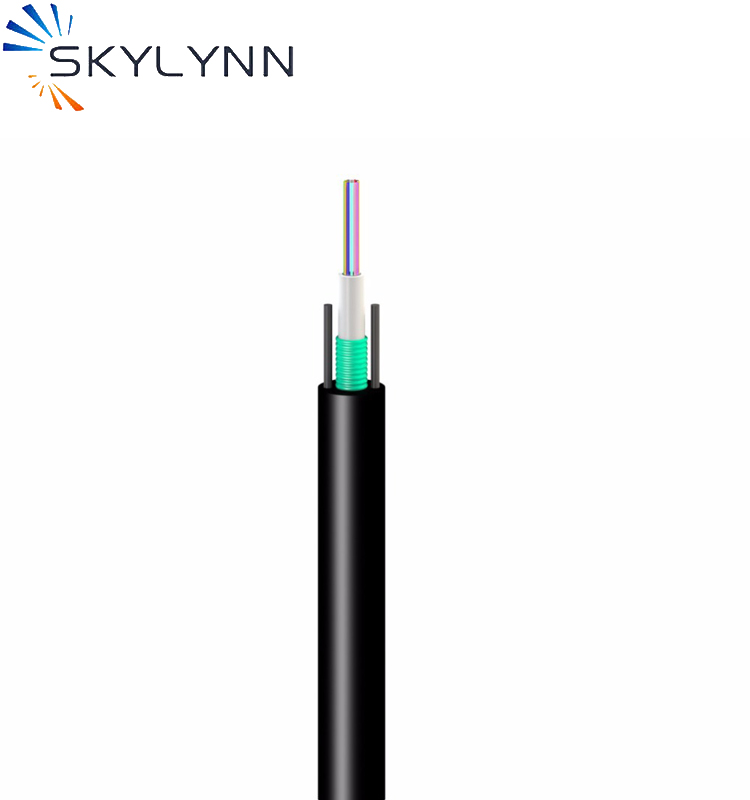

High Quality Cheap price Outdoor 8.0 MM GYXTW 12 Core Fiber Optic Cable
- Place of Origin:CN;GUA
- Number of Conductors:≥ 10
- Brand Name:Skylynn
- Model Number:GYXTW
- Product name::GYXTW fiber optic cable
- Model Number::GYXTW
- Brand Name::Skylynn
- Fiber Type::Single Mode
- Jacket material::PE
- Strength number::Parallel double steel wires as strengthen member
- Fiber Counts::12 cores
- Application::ducts, aerial or direct burial
- Outer diameter::8.0 mm
- Packing::2KM-6KM/Drum
Features:
Choice of Fibre Type
Colour code of Fibre
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance
Main Applications:
Suitable for external applications in ducts, aerial applications or direct burial

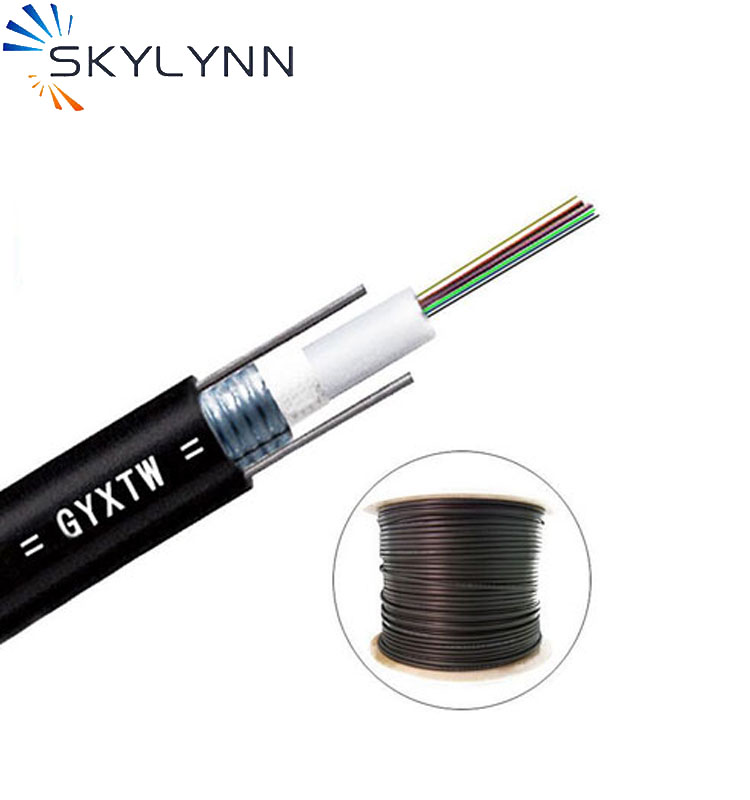

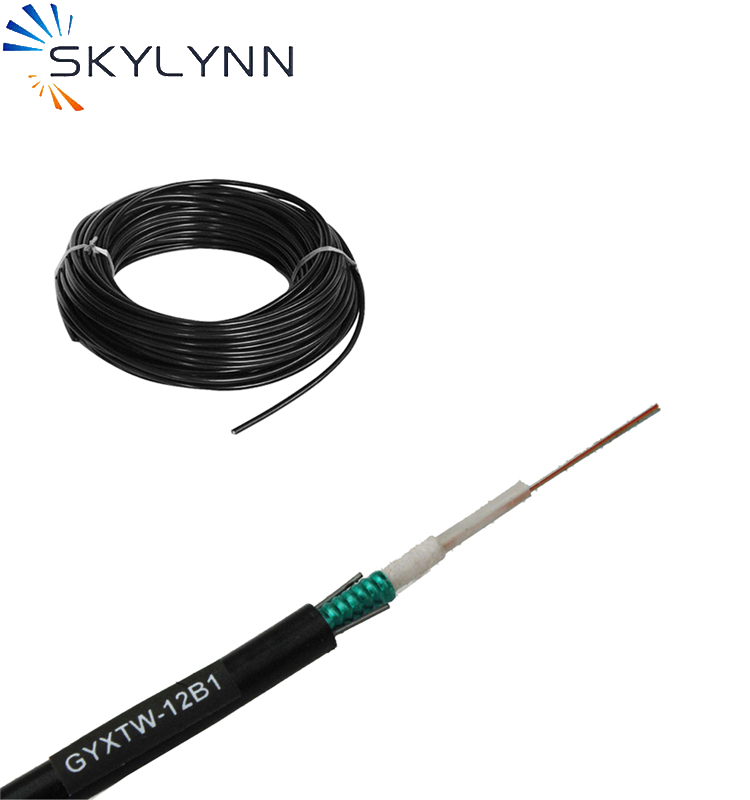

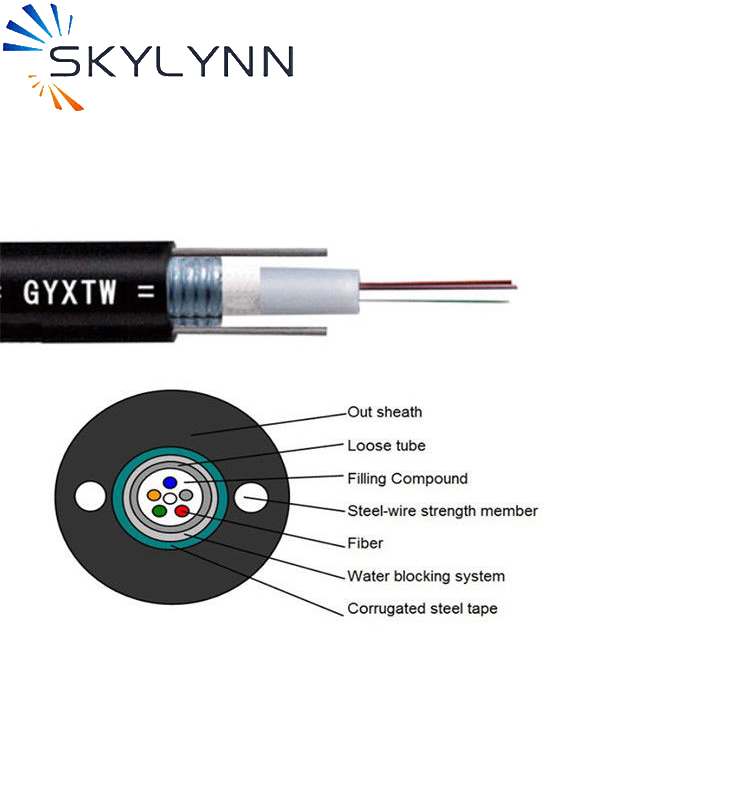

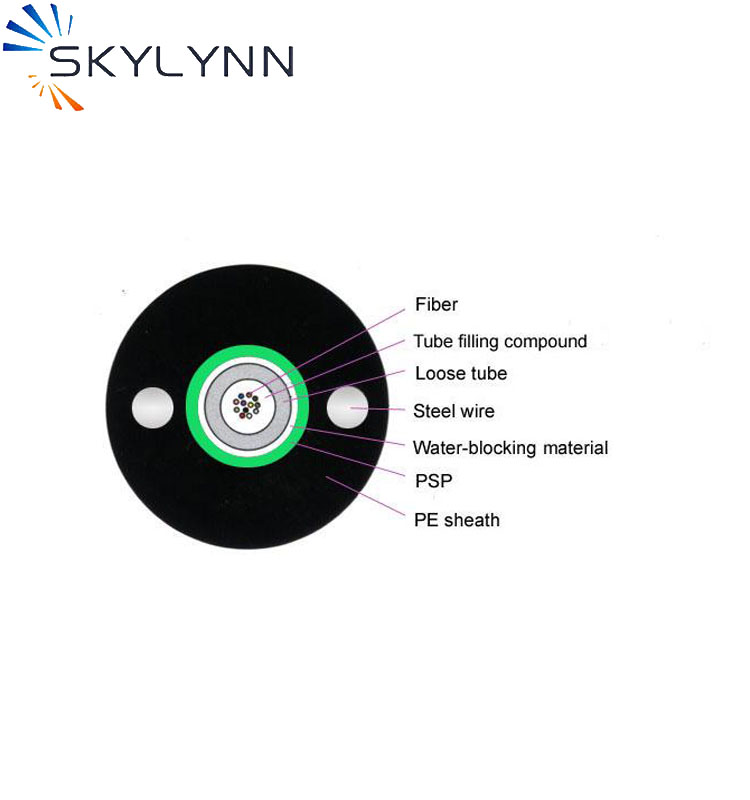

Structure Characters
Waterproofing layer between the steel tape and cable core
Double coated PE Crrugated steel tape nder PE sheath
Parallel double steel wires as strengthen member
| Fiber count | Cable outer dia(mm) | Cable weight(kg/km) | Min.bending radius(mm) | Permissible tensile force(N) | Permissible pressure force(N/100mm) | |||
| Dynamic | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
| 2-12 | 8 | 70 | 10D | 20D | 1500 | 600 | 1000 | 600 |
| 14-24 | 8.7 | 81 | 10D | 20D | 1500 | 600 | 1000 | 600 |
Temperature Characteristics
Operate temperature range: -20 o C to +60 o C
Storage temperature range: -20 o C to +60 o C
