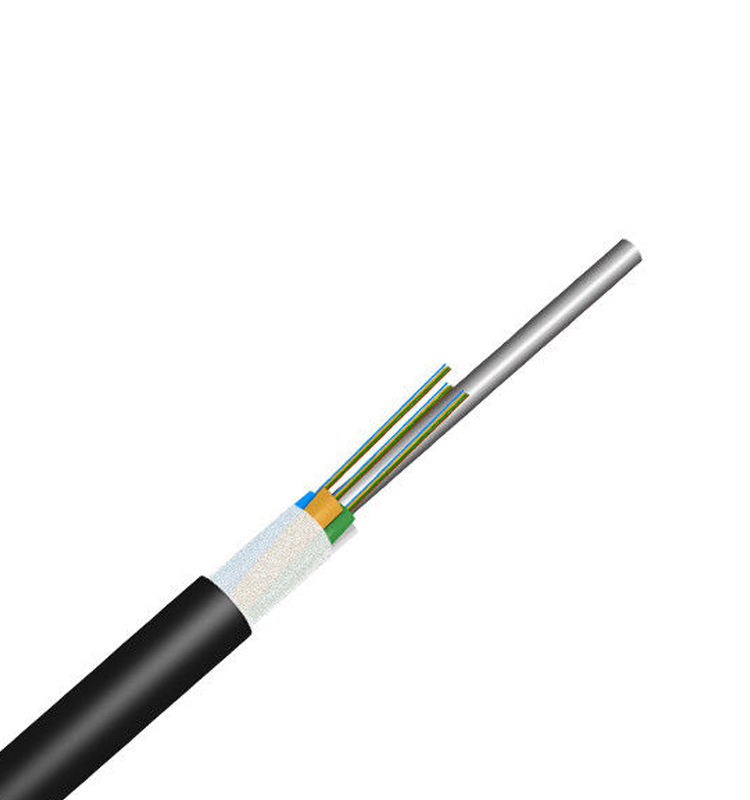

Pakistan Ducting gyfty 48 Core fiber Optic Cable
GYFTY
Delivery
FOB
minimum order
2 kilometers
Supply Ability
2000.0kilometers / Month
Country of Origin
Shenzhen
Quantity:
- Product name::Outdoor fiber optic cable
- Model Number::gyfty
- Brand Name::skylynn
- Number of Conductors::≥ 10
- Fiber number::2-288 core
- Application::duct
- diameter::10.4-21.5mm
- Jacket::LSZH/PE/PVC
- Bending radius::10D~20D
- fiber Weight::54kg
- Number of Conductors:≥ 10
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:GYFTY
Product Description

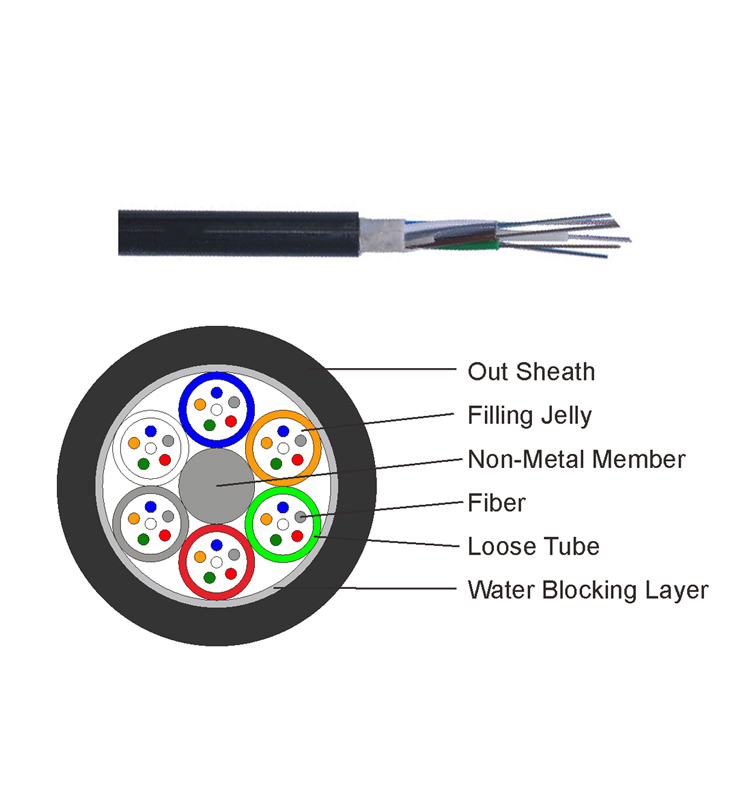

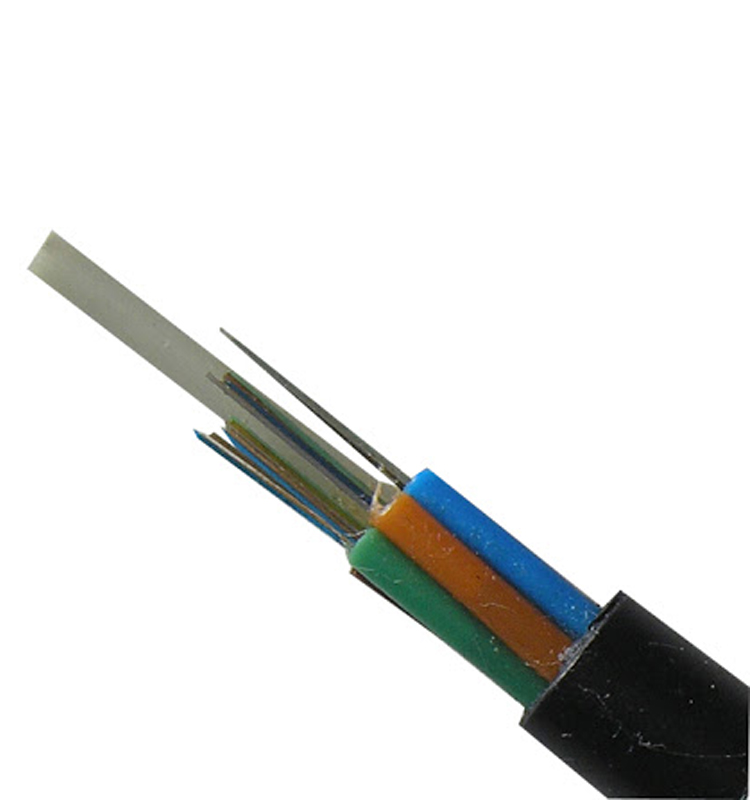

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
Features:
Good mechanical and temperatureperformance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight
Single Fiber Reinforced Plastic as the central strength member
Loose tube filling compound
100% cable core filling
Main applications:
Long-distance telecom LAN in high votage area or access to telecom network
Especilly for power transmission system.much thunder areas
Spec:
| Model | fiber cores | OD (outer dia.) | Weight kg/km | Tensile Strength Long /Short Term | Crush Resistance Long/Short Term N /100mm | Bending Radius Static /Dynamic mm |
| GYFTY | 2-288 | 10.4-21.5mm | 90-375 | 600/1500N | 300/1000 | 15D/30D |
| Cores no. | 2-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-240 |
| ODOuter diameter(mm) | 10.4 | 11.2 | 11.7 | 13.4 | 15 | 16.6 | 16.9 | 19.3 |
| Cable weigh(kg/km) | 90 | 100 | 115 | 180 | 195 | 220 | 240 | 265 |

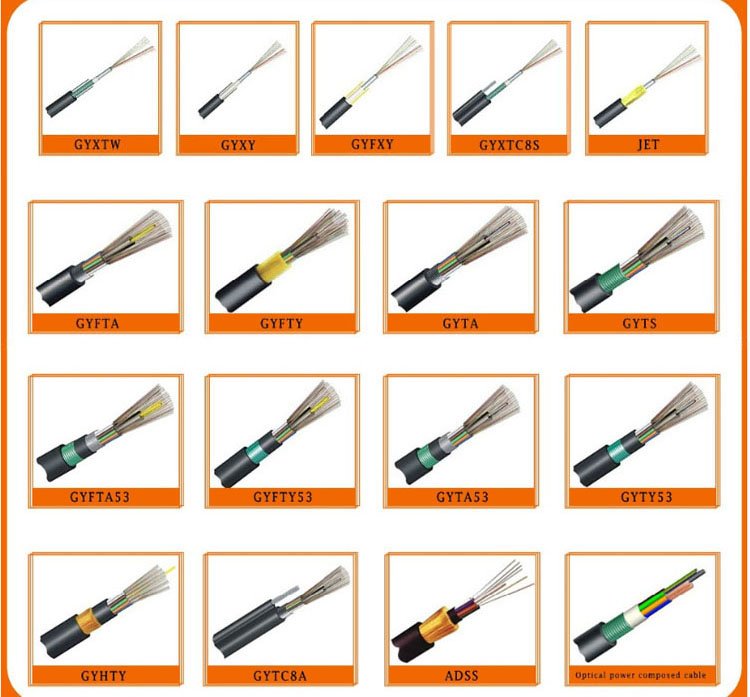

Related Products
Company Information
Certifications

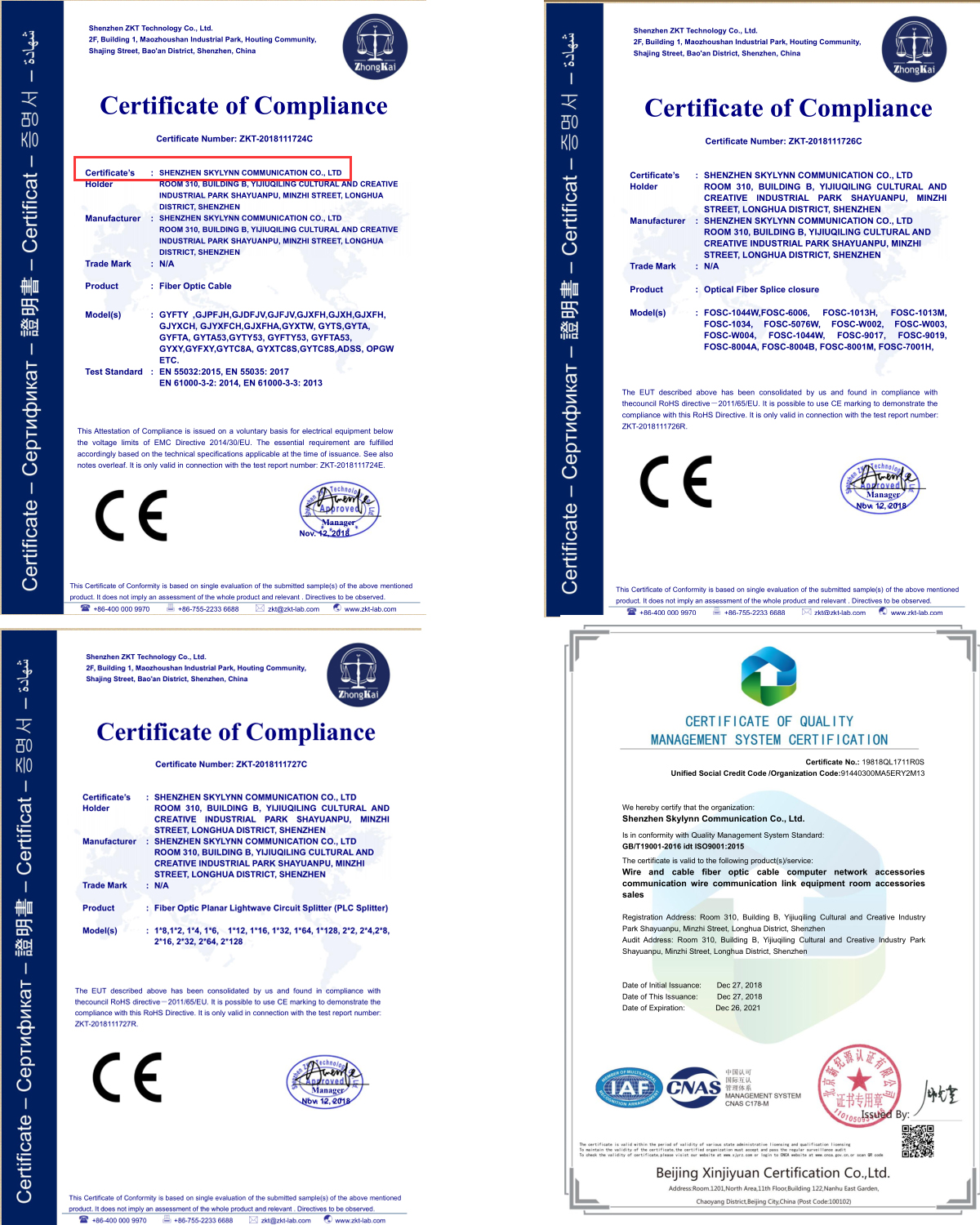

Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.

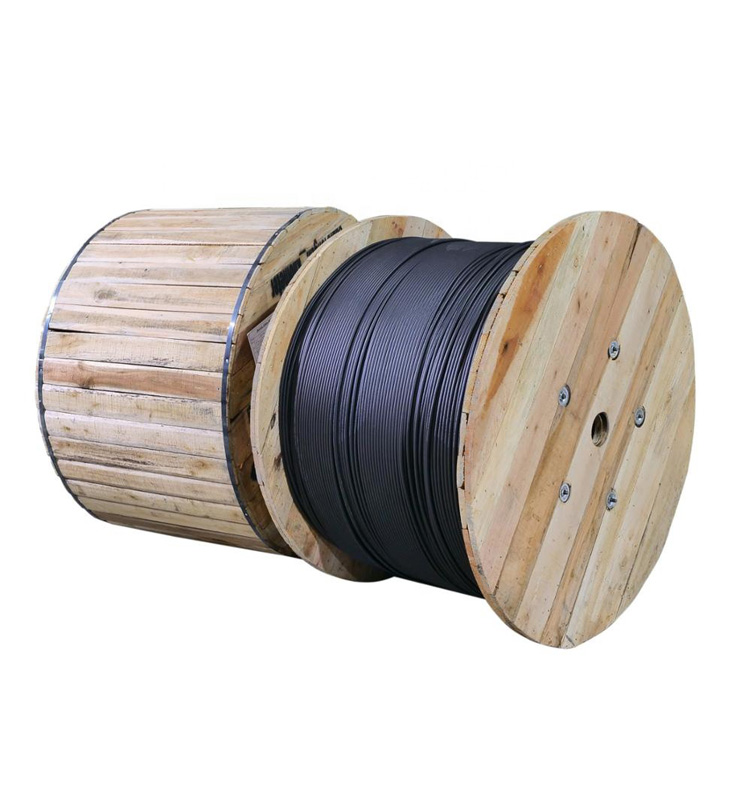

Packaging & Shipping
