Free sample 12~144 Single mode MINI Fiber optic cable /Micro fibre cable /Indoor optical fiber cable
- Product name:ABF cable
- Application:FTTH FTTB FTTX Network
- Fiber Type:MINI Fiber optic cable
- Fiber optic core:2-144
- Material of jacket:LSZH/PVC
- Fiber Optical Cable Application:Aerial,Duct,Direct
- Operating Temperature:-40 to 70
- Storage Temperature:-40 to 70
- Certification:ISO9001/CE/RoHS
- Insertion Loss:0.1dB
- Type:Fiber Optic Cable
- Multi-Mode Fiber:OM2
- Single-Mode Fiber:G652D
- No. of Fiber:144.
- Use:FTTH
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:MINI Fiber optic cable
Free sample 12~144 Single mode MINI Fiber optic cable /Micro fibre cable /Indoor optical fiber cable

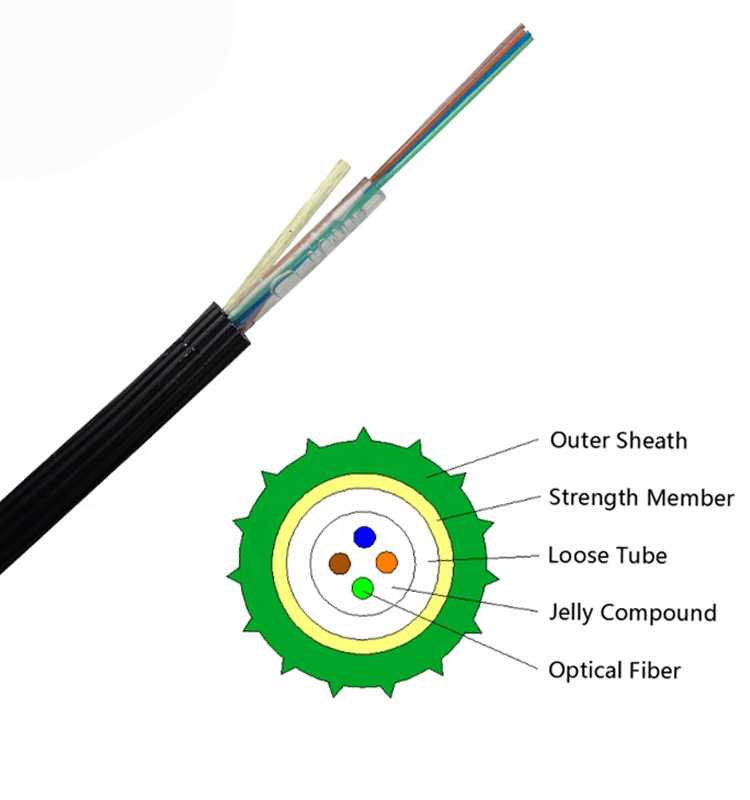

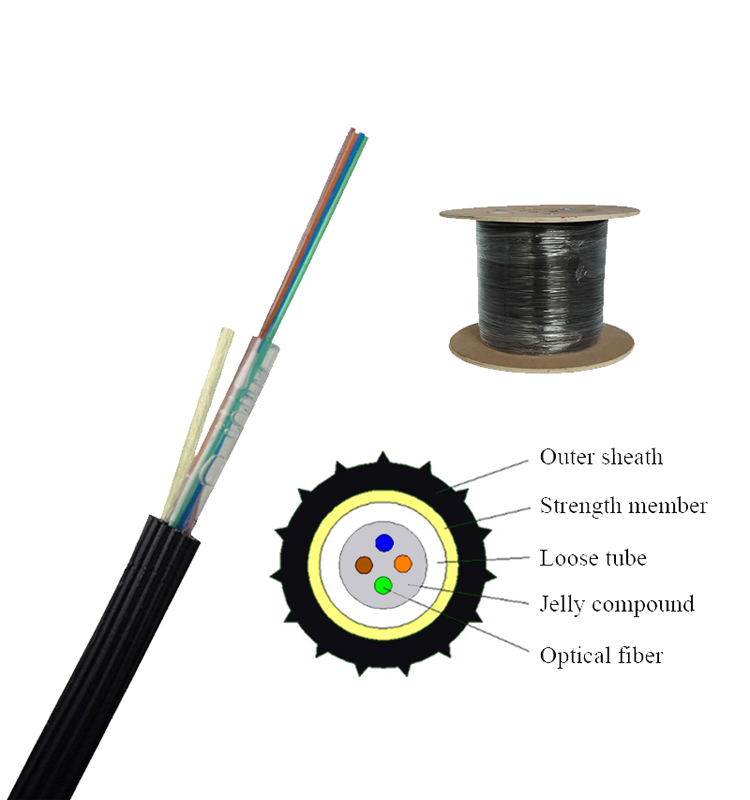

2 to 24 fibre 250 µm Micro Cables with aramid strength members and single LSZH jacket. The cables consist of 2 to 24, 250 µm OM1, OM2, OM3, OM4 multimode or ITU-T G.652D, ITU-T G.657A1 or ITU-T G.657A2 single mode optical fibres in a 2.95 mm Low Smoke Zero Halogen (LSZH) inner jacket with aramid strength members.
FeaturesandBenefits:
a. Special complex material loose tube, reduce the shrink of tube in cold temperature.
b. Accurate fiber length balance, stable mechanical and temperature performance.
c. Particular technique control, prevent sheath form crinkling during installation.

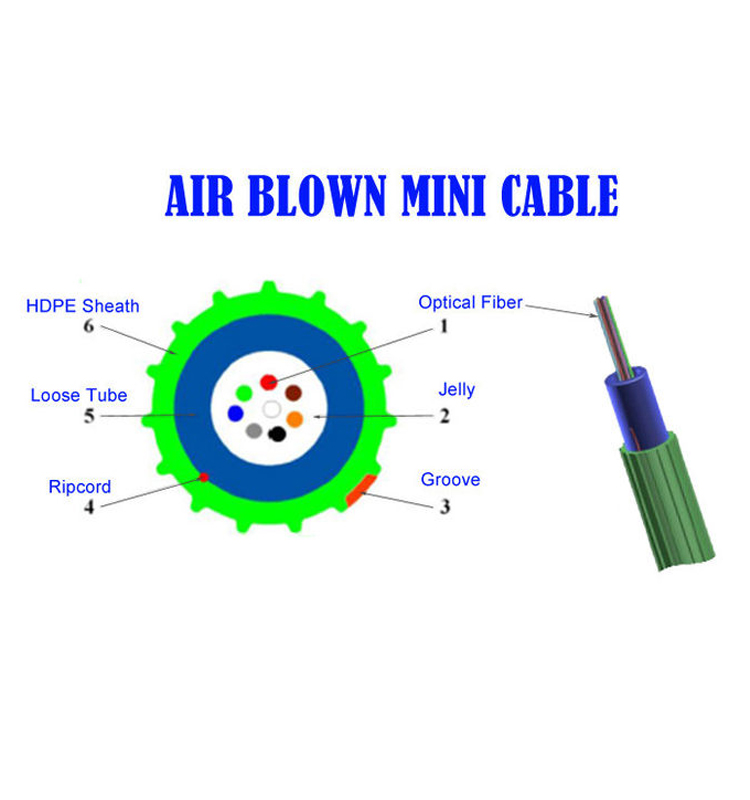

d. Structure Innovation in sheath, enhancing the blowing performance.
Technical Index:
| CableType | GCYFXTY-XB1.3(MTE+Cablediameter) | |||
| MTE2.0 | MTE2.3 | MTE2.5 | MTE2.8 | |
| Fiber Count | 2~4 | 6~12 | 2~12 | 14~24 |
| Thickness of HDPE sheath | Nominal value:0.20mm, Average value:0.15mm | |||
| Nominal Overall Diameter | 2.0±0.1mm | 2.3±0.1mm | 2.5±0.1mm | 2.8±0.1mm |
| Weight | 4.0 kg/km | 5.0 kg/km | 6.0 kg/km | 7.0kg/km |
| Cable Fiber Attenuation (single mode) | 0.35dB/km max @1310nm 0.22dB/km max @1550nm | |||
| Max. Tensile Strength | 40N | 50N | 60N | 60N |
| Max. Crushing force | 600N/100mm | |||
| Min. Bending radius -Static / Dynamic | 10 / 20 outer Φ | |||
| Temperature | Storage -30~+50℃;Installation-10~+40℃;Operation-20~+50℃ | |||
| Cable service life (estimate value) | 25 years | |||

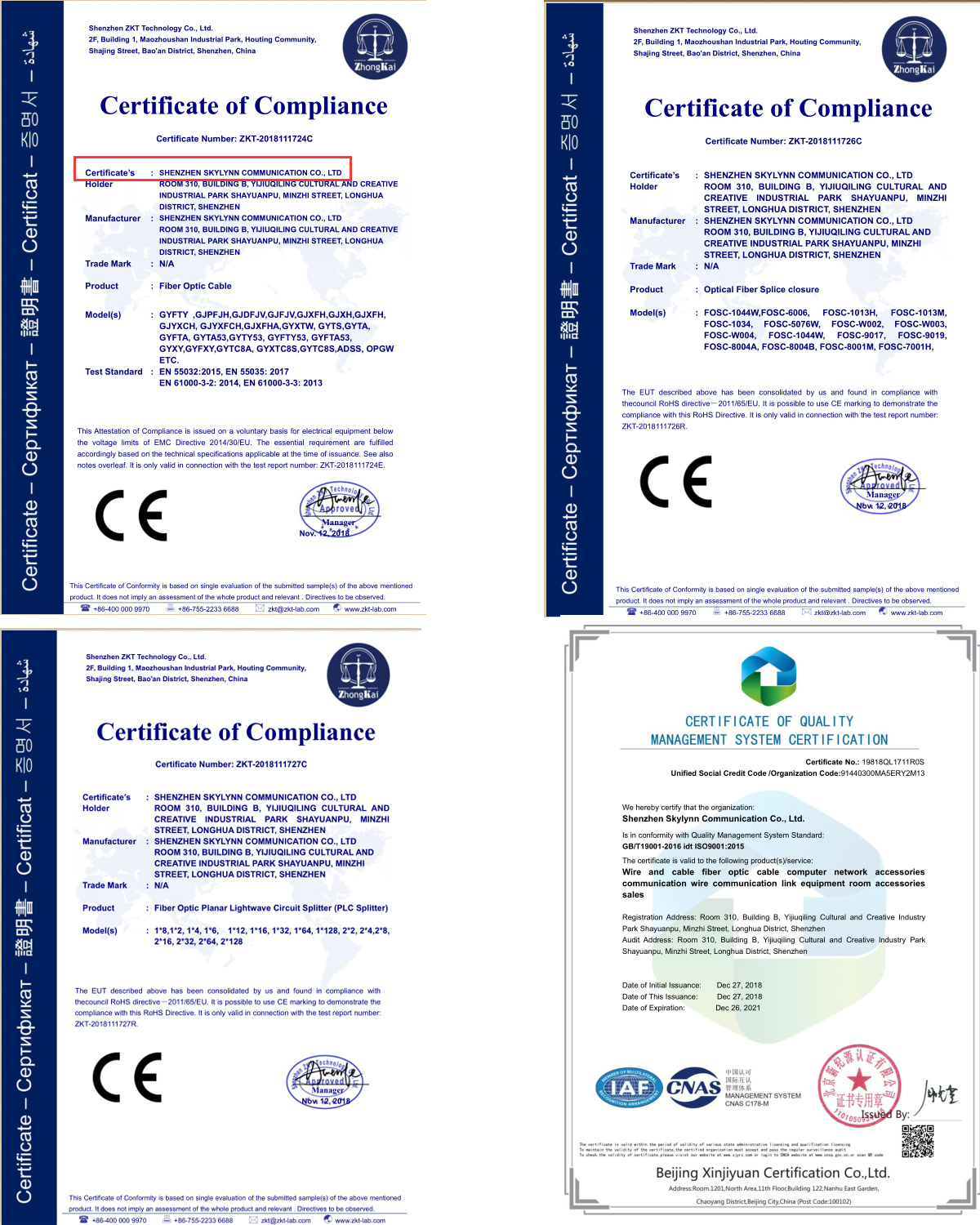

Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
