optical fiber 2 4 8 12 24 48 72 core price 500kv 24 fibre (dwsm) optic cable with stranded opgw cable
- Place of Origin:CN;GUA
- Number of Conductors:≥ 10
- Brand Name:Skylynn
- Model Number:OPGW-24B1
- Product name:opgw fiber optic cable
- Application:Teleommunication
- Color:White
- Fiber Type:G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
- Certification:CE/ROHS/ISO9001
- Packing:Wooden Reel
- Fiber count:2-144 Cores
- Length:1km
- Keyword:Fiber Optical Cable 1km
- Operating temperature:-40 ~+85
optical fiber 2 4 8 12 24 48 72 core price 500kv 24 fibre (dwsm) optic cable with stranded opgw cable

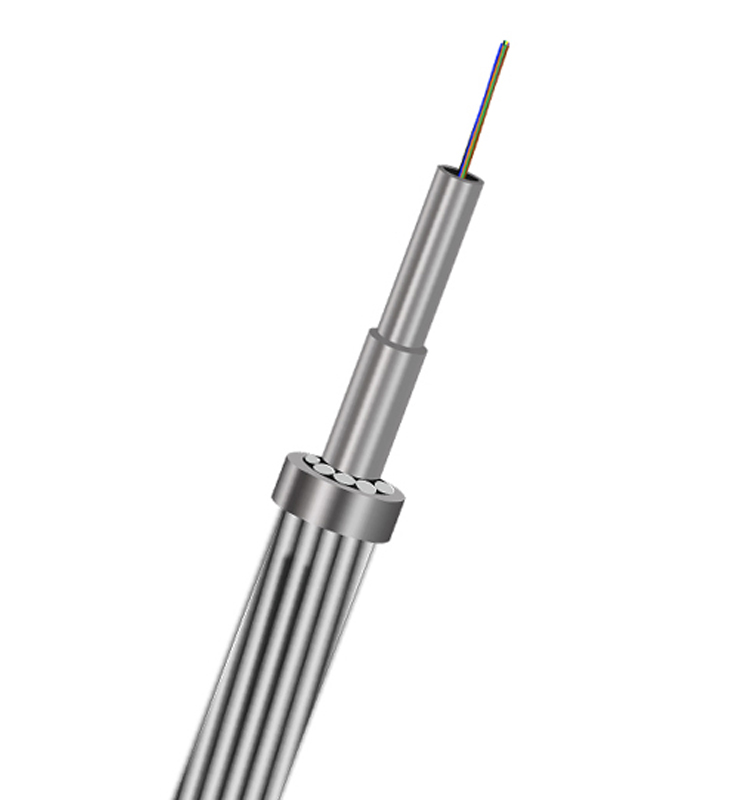

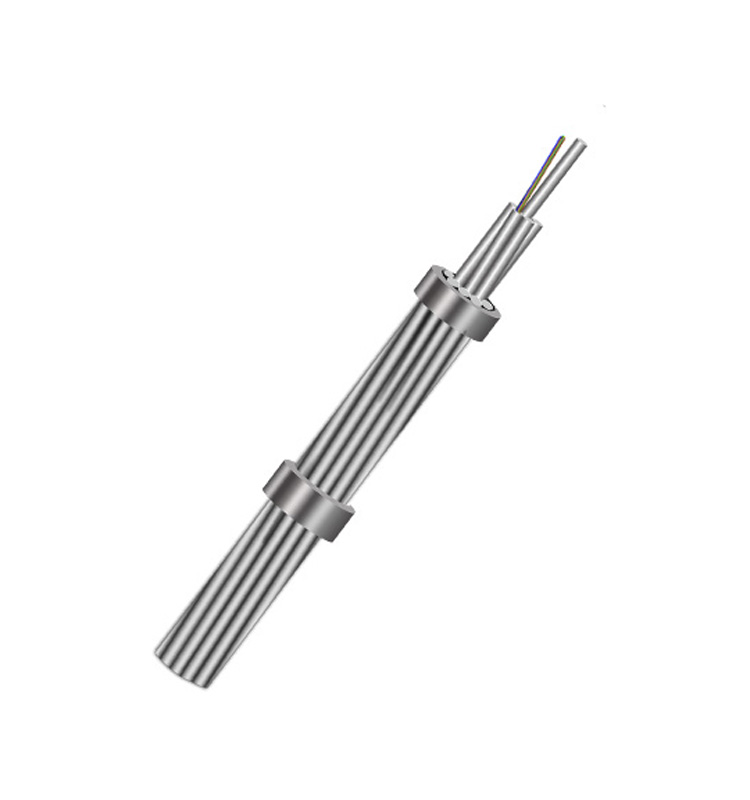

The central Al-covered steel tube is surrounded by single or doublelayers of aluminum clad steel wires(ACS) or mix ACS wires andaluminum alloy wires.Al-covered Stainless Steel tube design increases the cross section of AL, toreach a better fault current and lightning resistance performance.Apply to the transmission line which requires small diameter and large faultcurrent.
Features:
1. Up to 144 fibers
2. Cable diameter and weight approximate with another ground wire. Less additional load to tower, high tensile strength.
3. Excellent stainless steel tube stranding technology make the fibers have good secondary excess length and allow the fibers
free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
4. Optical fibers are protected by stainless steel tubes.
5. Excellent security, good bullet resist performance.
6. ACSW, AAW and SST stranded design provide wide range combination of electrical conductivity and mechanical tensile strength.

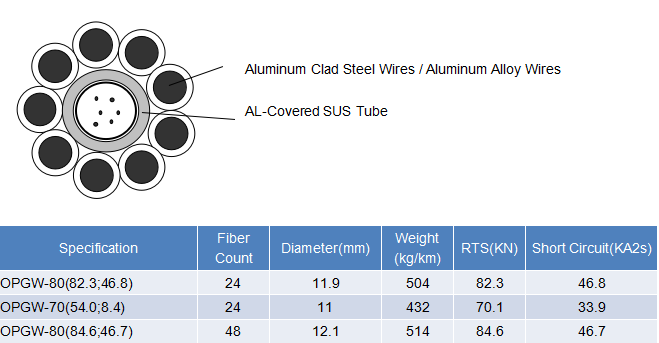

Typical Design for Single Layer

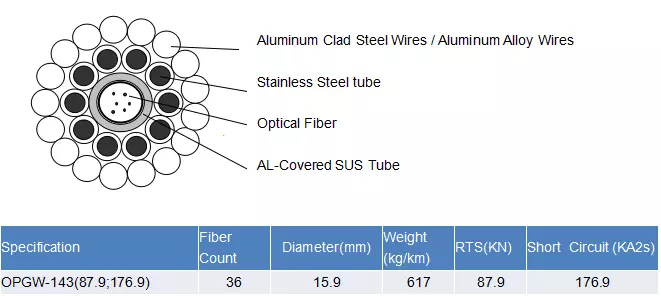

Typical Design for Double Layer
