Submarine Single mode Direct Buried GYTA33 24 48 72 core Fiber Optical Cable
GYTA33
Delivery
FOB
minimum order
2 kilometers
Supply Ability
2000.0kilometers / Month
Country of Origin
Shenzhen
Quantity:
- Product name:GYTA33/GYTA333
- Application:Long-Distance Communication
- Certification:ISO9001/CE/RoHS
- Fiber Type:Single mode
- Laying modes:Direct Buried & Under-Water
- Color:Black
- Package:Wooden Drum
- Jacket Material:PE
- Fiber count:1-72core
- Operating Temperature:-40°C ~+ 70°C
- Number of Conductors:≥ 10
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:GYTA33
Submarine Single mode Direct Buried GYTA33 24 48 72 core Fiber Optical Cable
Product Description
Description:

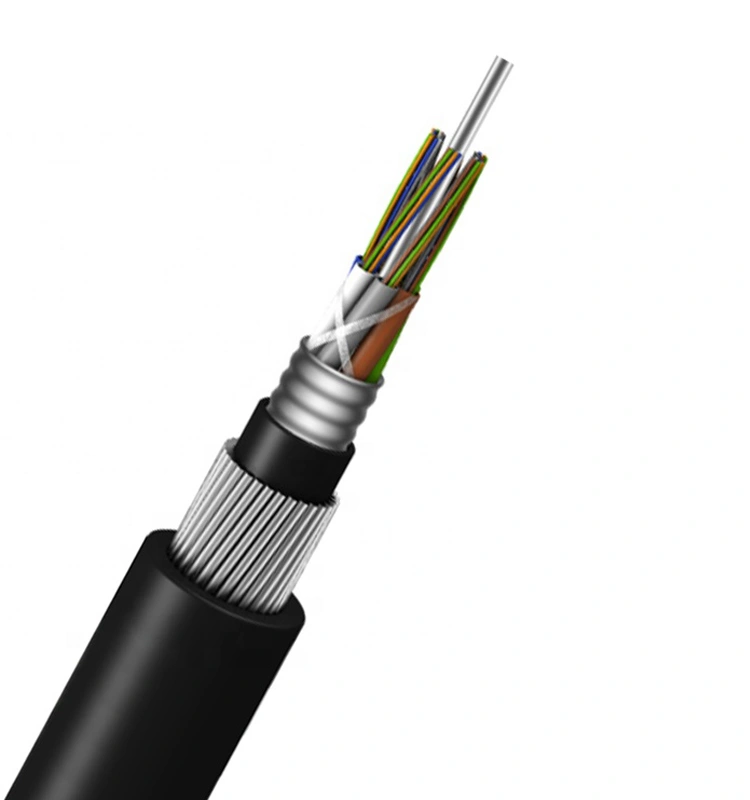

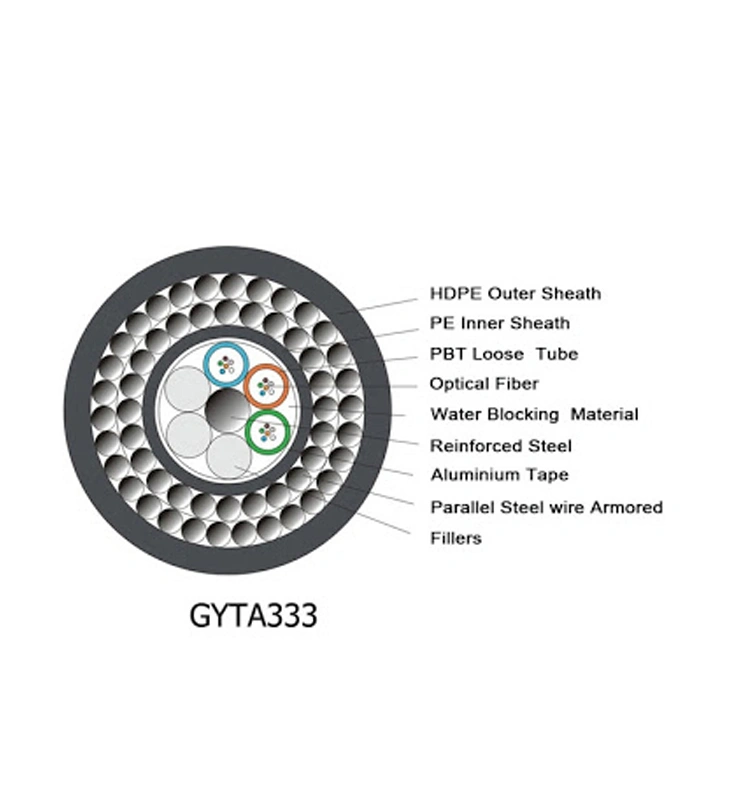

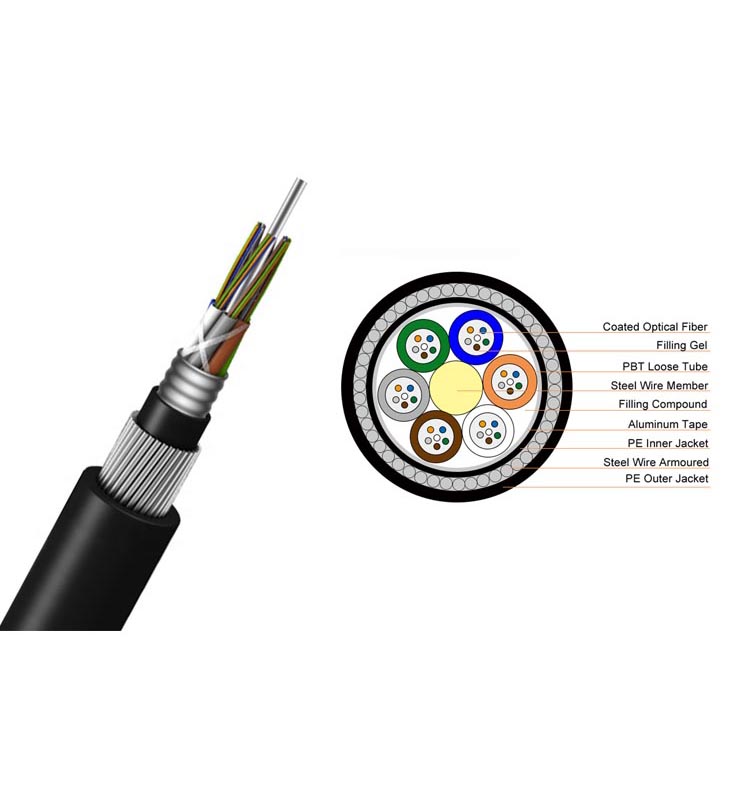

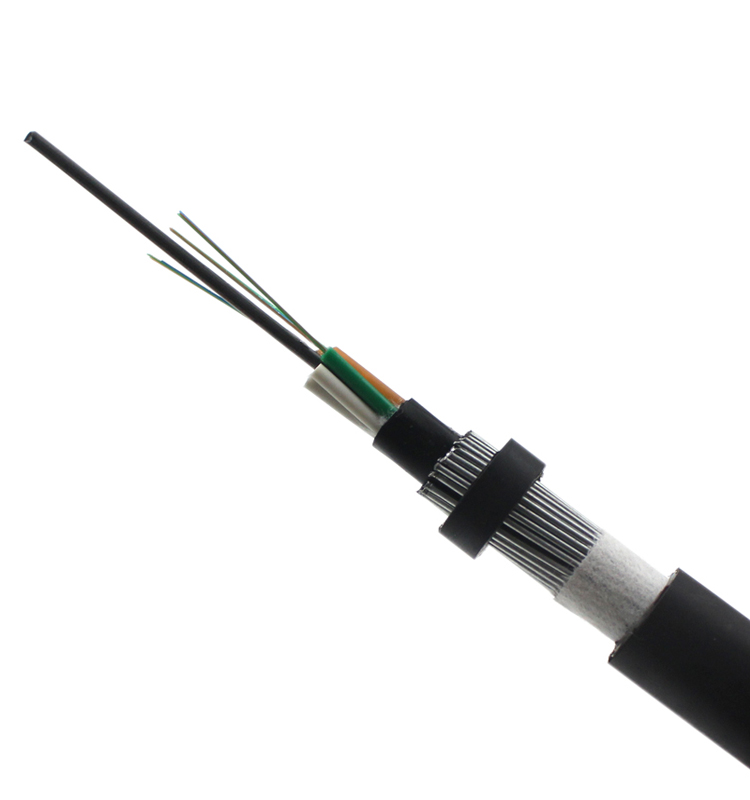

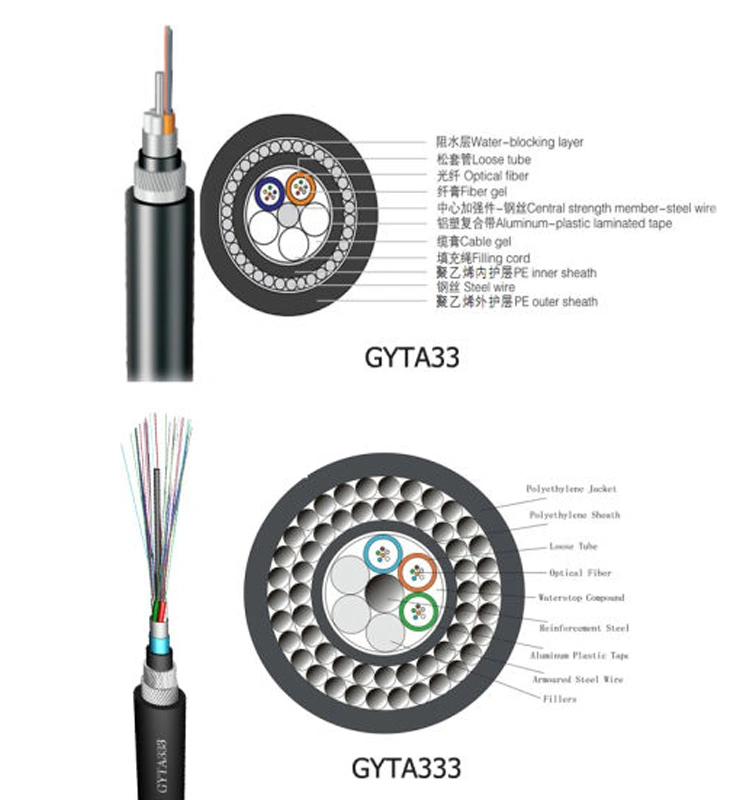

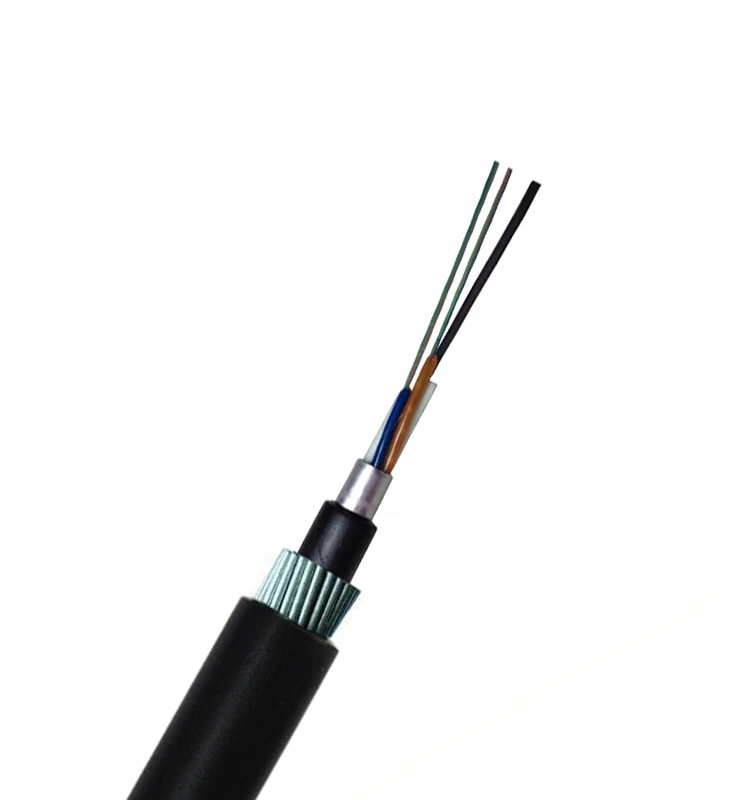

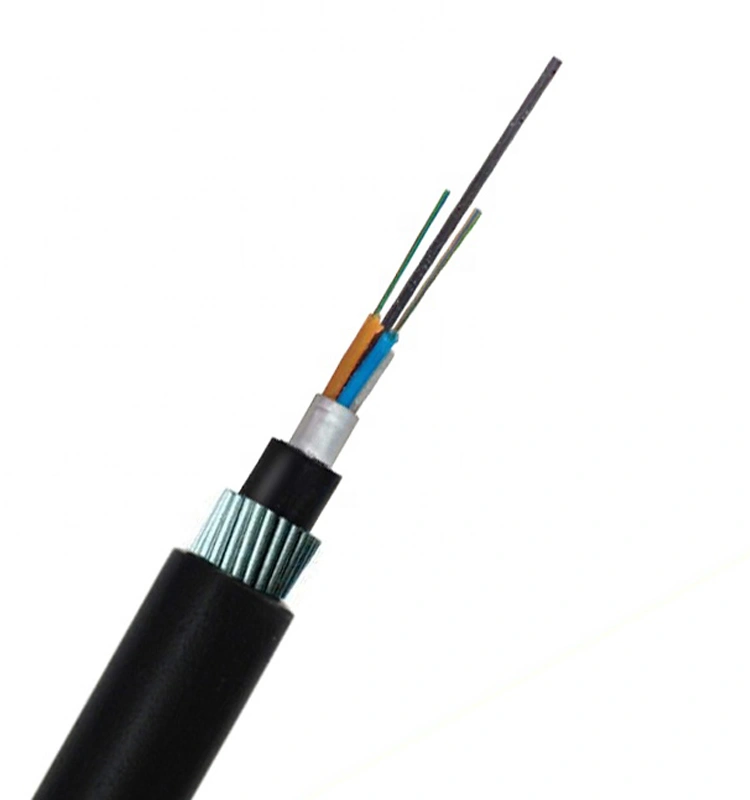

Fiber optic cable GYTA33, 2~72 fibers, central strength member (steel), jelly filled, fiber contained loose tube and pp filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, pe inner sheath, armored by a layer of steel wires, pe outer sheath. G652d sm fiber, detailed specification on your request.
Application:
1.Laying modes: direct buried & under-water.
2.Applications: Long-distance communication, local trunk line, catv & computer networks system.
Technical Parameters:
| Fiber count | 2~30 | 32~36 | 38~60 | 62~72 | 2~36 | 38~72 | |
| CSM/Steel wire (mm) | --/1.5 | --/2.0 | --/1.8 | 2.4/1.8 | --/2.0 | 2.4/1.8 | |
| Element mumber | 5 | 6 | 5 | 6 | 6 | 6 | |
| Max. cores in tube | 6 | 6 | 12 | 12 | 6 | 12 | |
| Diameter of inner sheath | 8.3 | 8.8 | 9.1 | 9.7 | 10.5 | 10.5 | |
| Steel wire diameter and No. | Φ1.0/28 | Φ1.0/29 | Φ1.0/30 | Φ1.0/32 | Φ1.5/24 | Φ1.5/24 | |
| Cable diameter approx (mm) | 14.3 | 14.8 | 15.1 | 15.7 | 17.5 | 17.5 | |
| Weight approx (kg/km) | 315 | 328 | .340 | 360 | 520 | 520 | |
| Tensile strength (N) | Long term | 4000 | 10000 | ||||
| Short term | 10000 | 2000 | |||||
| Crush Resistence(N/100mm) | Long term | 3000 | |||||
| Short term | 5000 | ||||||
| Bending Radius (mm) | Dynamic | ≥30 ×Dia. Of cable | |||||
| Static | ≥15×Dia. Of cable | ||||||
| Operating Temperature (°C) | -40°C ~+ 70°C | ||||||
| Application | Directly burial and Under water | ||||||

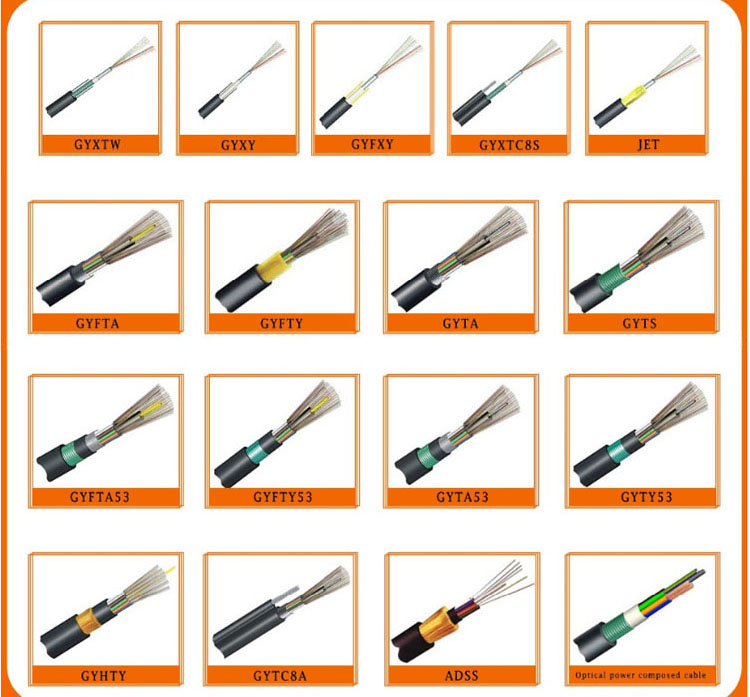

Related Products
Company Information
Certifications

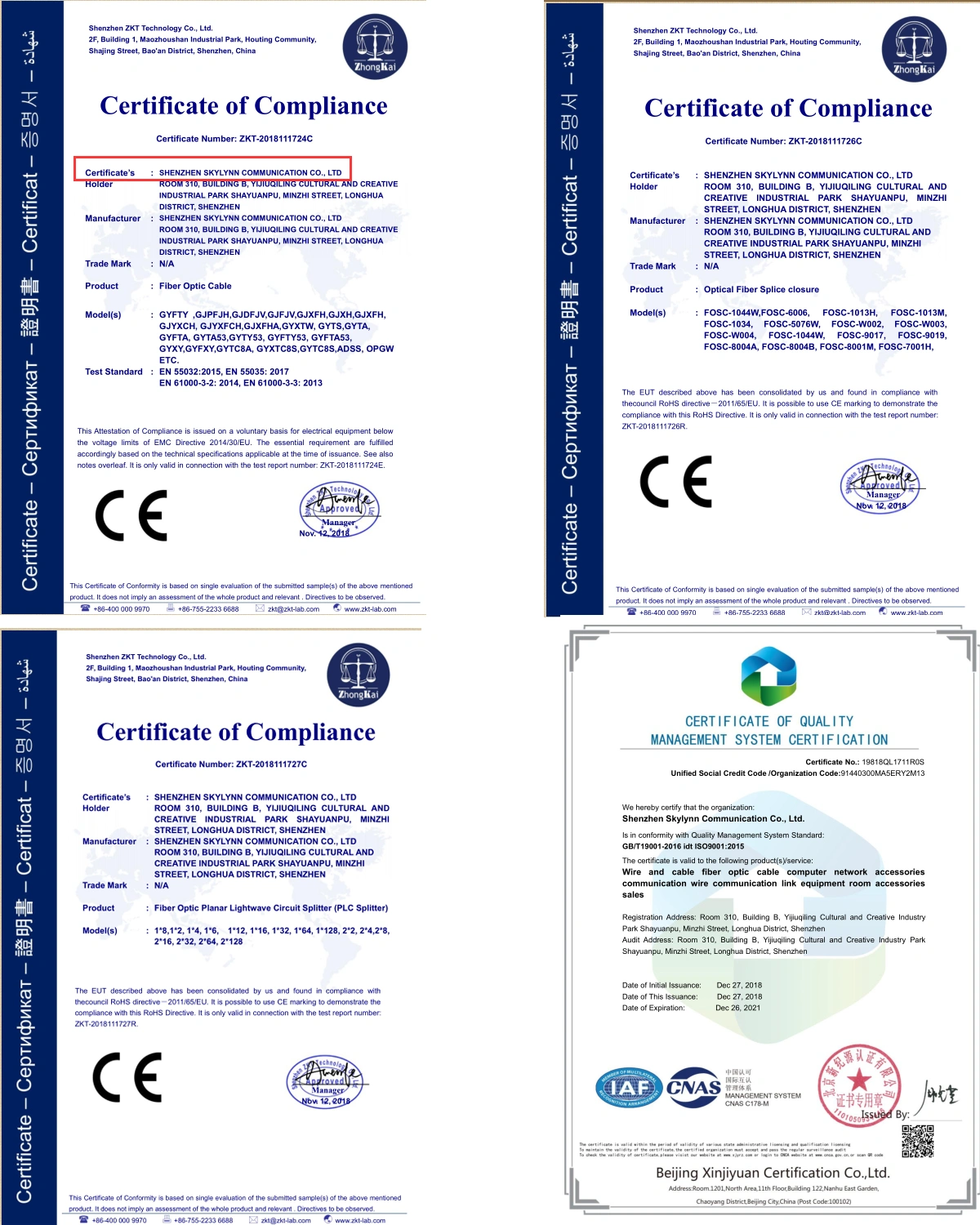

Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.

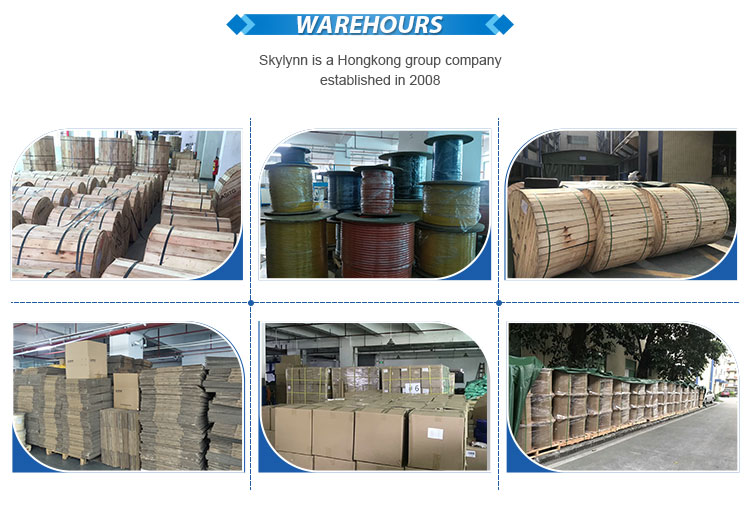

Packaging & Shipping
